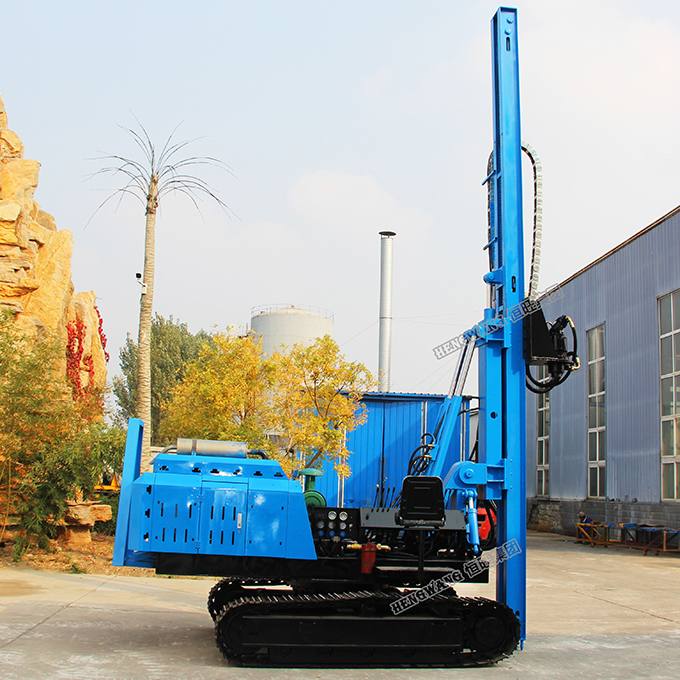

Model: HWL300
Hammer model: 75#
Pile Length: 3m
Engine Power: 85KW
Working condition: 4*2.15*4.6m
Transportation condition: 4.6*2.15*2.8m
Machine weight: 5.8T
Product Description
Product Application Construction piling hydraulic driven press pile machine
The machine is suitable for: photovoltaic spiral pile rotary pile engineering, drilling engineering, geological exploration, construction engineering, engineering blasting and other projects. ISO certificate is available.
Power configuration: It adopts domestic Yuchai 4108 turbocharged engine with power up to 85KW, which provides a reliable power source for construction operations
Diversified functions: one machine can realize three functions: spiral drilling, air compressor downhole, and hydraulic hammer pressing pile.
Hydraulic system: advanced hydraulic system, high quality hydraulic components strict assembly process, ensure the high efficiency and durability of the hydraulic system.
Modeling design: the overall frame structure is excellent, the material is completely national standard.High strength, good stability, in line with the industrial aesthetic design ideas, operators more spacious workspace.
Production process: the production process is more reasonable, wear - resistant parts are using heat treatment process.Rigorous welding process, frame welding of the overall stress treatment, reduce deformation, detection equipment is perfect.
Most competitive Pile hammer solar pile driver price

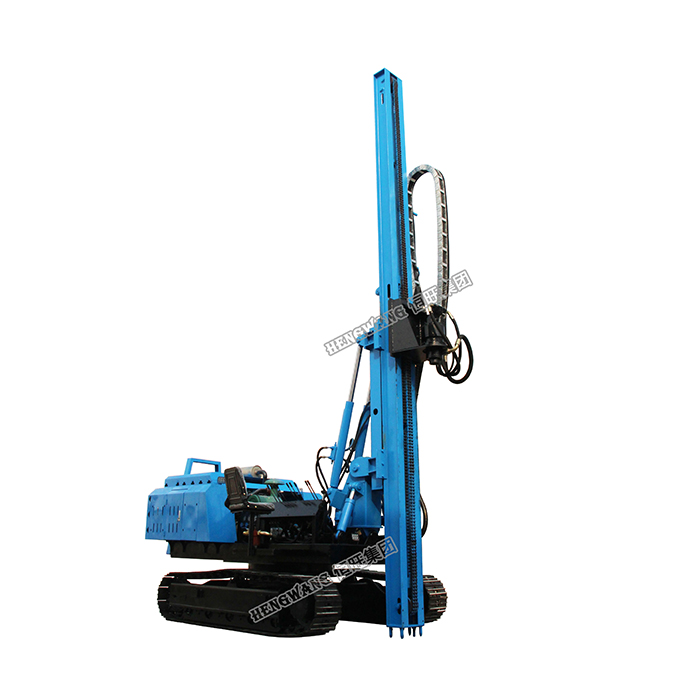

3m hydraulic solar pile driver
6m hydraulic solar pile driver
Model: HWL600
Power head: 75#
Engine power: 85KW
Pile Length: 5.5mWorking condition: 4.3*2.15*7.6m
Transportation condition: 7.6*2.15*2.8m
Machine weight: 6.5T
Double power heads loading piler driver
Model: HWDH300
Spiral Drilling Diameter: 150-600mm
Spiral drilling depth: 3000mm
Drilling Diameter: 76-450mm
Drilling depth: 0-200mm
MPA working pressure: Medium: 0.7-1.6 High: 1.6-2.46
Drill pile diameter:60-76-89mm
Overall dimension: 4.6m*2.2m*2.7m
Machiner weight: 6.5T
SPECIFICATIONS FOR HW300L solar Pile Driver | ||||||
Model | HW300L | |||||
Power head | 75# | |||||
Engine power | 85KW | |||||
Rod Diameter | 0-4000mm | |||||
Duplex gear pump pressure (mpa) | 20 | |||||
Duplex gear pump displacement(ml/r) | 40 | |||||
hydraulic system pressure(mpa) | 20 | |||||
Overall Machine weight /T | 5.8 | |||||
rotation angle /° | 360 | |||||
rotation semi diameter/mm | 1925 | |||||
Effective press pile stroke/mm | 0-3000mm | |||||
track shoe(mm) | 350 | |||||
Walking motor total emissions (ml/n) | 1575 | |||||
Walking motor rated pressure (mpa) | 18 | |||||
walking motor output torque(n.m) | 4300 | |||||
Main Features
1. Mature and reliable chassis design, with no attenuation of pile driving force at the plateau and no pressure of construction slope in the mountainous area, is the first choice for safety and reliability.
2, 4 cylinder stepless speed change, easy to move, special road can turn field, easy to operate, high accuracy, faster positioning speed, efficiency about 10% higher than the 260 model.
3. Unique heat dissipation design ensures the equipment to work for a long time.
4. One-piece rail has stable movement and high drilling (piling) accuracy.
5, innovative hydraulic pump design, greatly improve the construction efficiency.
Certifications
Our factory
Professional manufacturer for more than 15 years.
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.
Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.
Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers.
Our Service
Pre-Sales Service
* Customize your brand or company name
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Detailed Images
Machine Parts
Name: Double Power head for screw drilling & Piling
Exquisite workmanship, guarantee very nice quality
High performance Hydraulic highway guardrail pile driver price
Main Features
Name: operator table
Very clear with English, this machine is easy to operate
Machine Parts
Name: Cylinder
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: Oil pipes
High quality, very durable oil pipes, longer service life
Construction piling hydraulic driven press pile machine
