Home > Products > drilling rig water well japan italian well drilling rig manufacturers

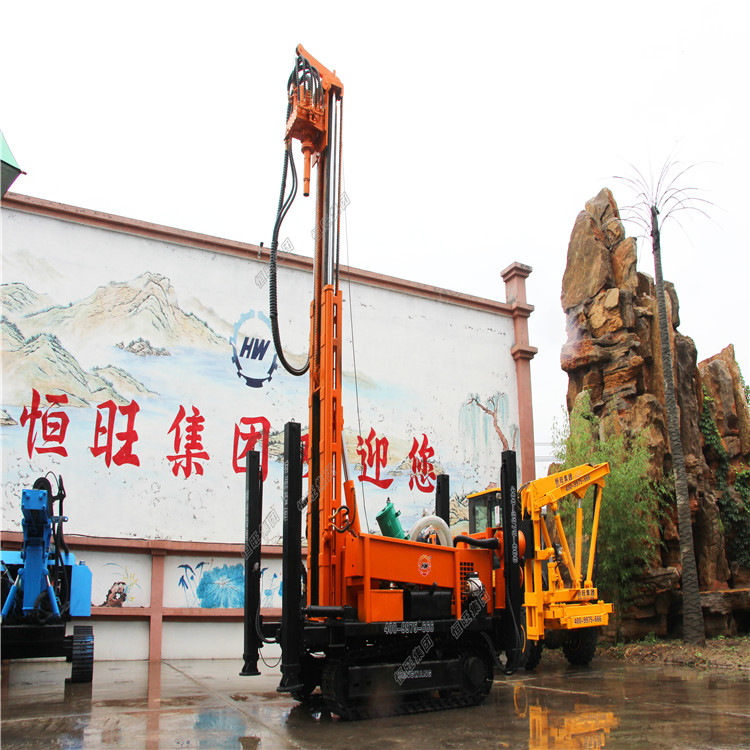

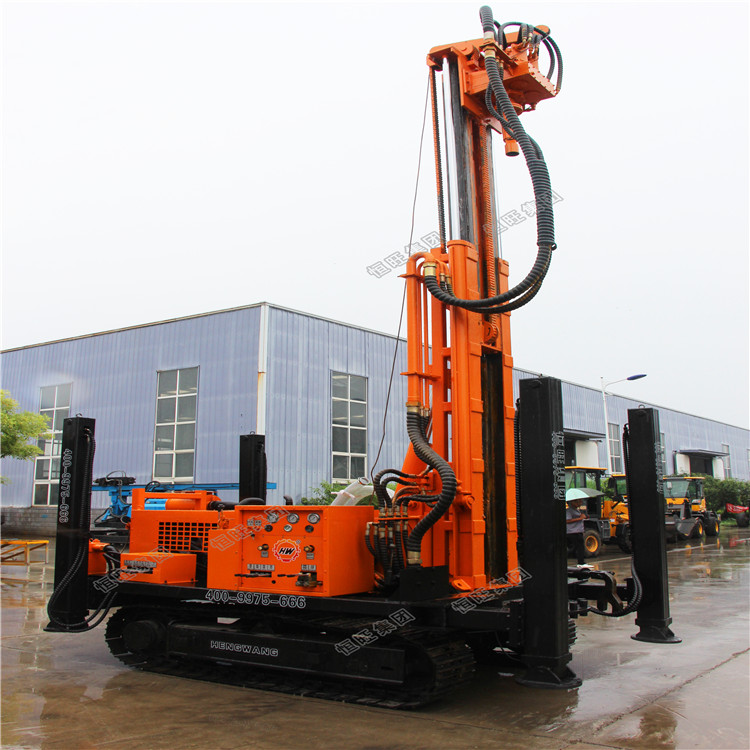

drilling rig water well japan italian well drilling rig manufacturers
Click on the image to view the original image
Product： views：7drilling rig water well japan italian well drilling rig manufacturers
Branch： heng wang
Type： Rotary Drilling Rig
Size： 60X50X40 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:40
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
heng wang
Usage:
Water Well
Dimension(L*W*H):
3.1*2.1*1.8m
Weight:
5ton
Warranty:
2 Years
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Product name:
drilling rig water well japan italian well drilling rig manufacturers
Name:
drilling rig water well japan italian well drilling rig manufacturers
Drilling diameter:
75-300mm
Drilling depth:
150m 200m 300m 400m
Air consumption:
17-31m3/min
Drill rod length:
3.0m
Drilling method:
Top Drive Hydraulic Rotary Drilling
Working Pressure(bar):
1.7-3.0
Engine:
Yuchai
Feature:
High Drilling Efficiency

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X50X40 cm
Single gross weight:
65.0 kg
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)7To be negotiated
Video Description
Product Description



Pneumatic drill Exploration Well drill rig,water drilling machine  150  Model

The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600

Walking speed(Km/h)0.8
Climbing angles(Max.)30

Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5

Air consumption(m³/min)15-29

Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89



Pneumatic drill Exploration Well drill rig,water drilling machine 180 Model

The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89



Pneumatic drill Exploration Well drill rig,water drilling machine 200 Model

The Weight(T)5.5

Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102



Pneumatic drill Exploration Well drill rig,water drilling machine 300 Model

The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102



Pneumatic drill Exploration Well drill rig,water drilling machine 600 Model

The Weight(T)12

Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100

Drill pipe diameter(mm)Φ89 Φ102 Φ114
