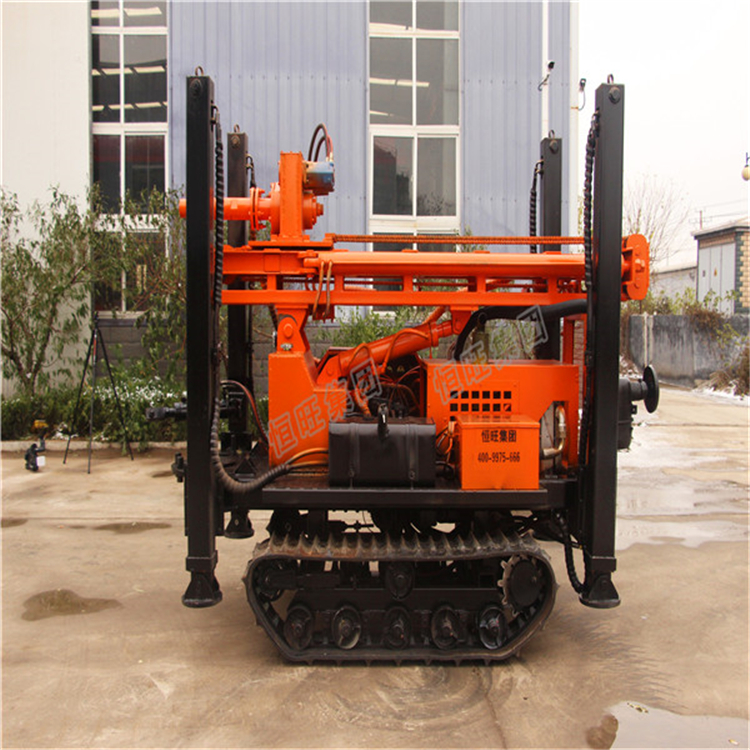

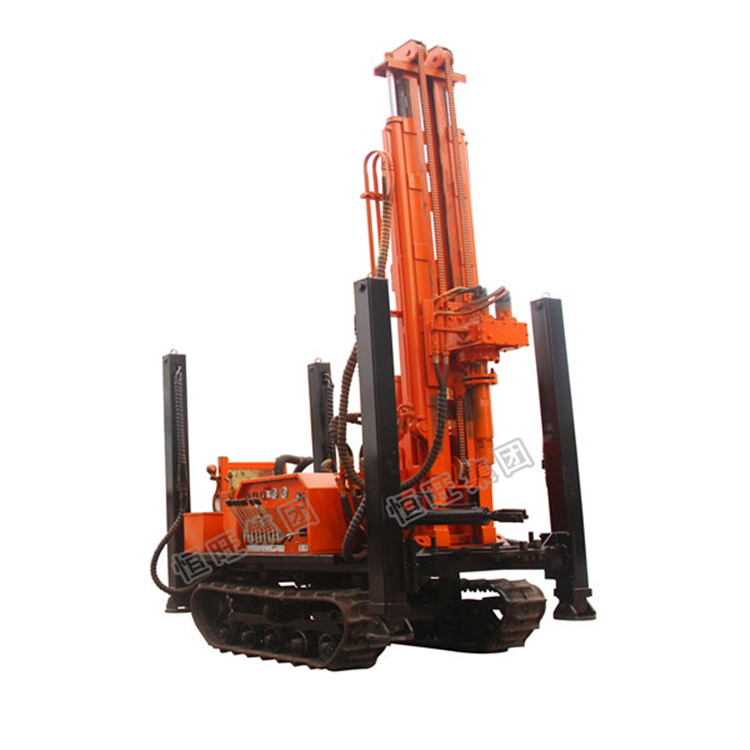

road drilling rigs water well shallow water well drilling rig  150  Model

The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600

Walking speed(Km/h)0.8
Climbing angles(Max.)30

Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5

Air consumption(m³/min)15-29

Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89

road drilling rigs water well shallow water well drilling rig  180 Model

The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89

road drilling rigs water well shallow water well drilling rig  200 Model

The Weight(T)5.5

Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102

road drilling rigs water well shallow water well drilling rig  300 Model

The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102

road drilling rigs water well shallow water well drilling rig  600 Model

The Weight(T)12

Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100

Drill pipe diameter(mm)Φ89 Φ102 Φ114
