Home > Products > 60KW 75KW 150KW Diesel generator set price

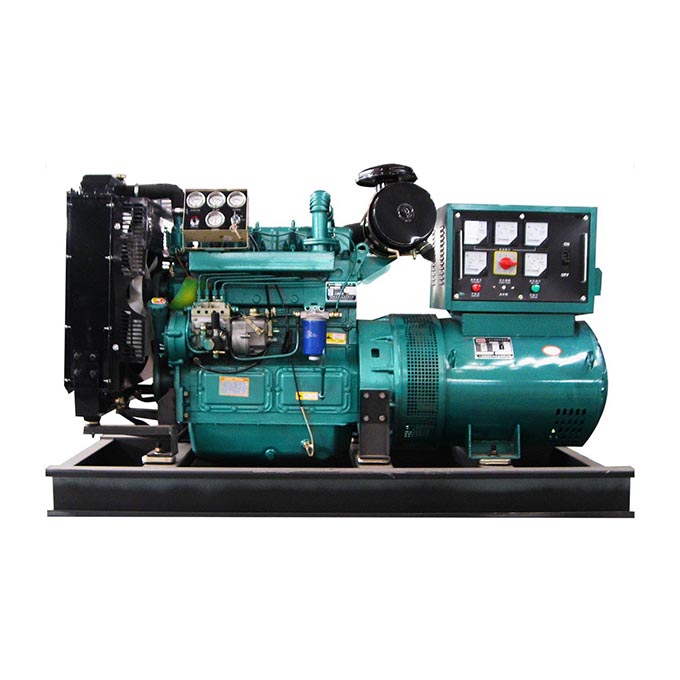

60KW 75KW 150KW Diesel generator set price
Click on the image to view the original image
Product： views：660KW 75KW 150KW Diesel generator set price
Branch： HW
Size： 290X170X230 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:41
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW75 HW50
Rated Voltage:
400V/230V
Rated Current:
180A
Speed:
1500 r/min
Frequency:
50hz/60hz
Color:
Green
Gasoline Engine:
customized
Warranty:
12 months
Keyword:
Diesel generator
Starting method:
24V Electric Start
Controller:
can be added
Power range:
30KW-250KW

Packaging & Delivery

Selling Units:
Single item
Single package size:
290X170X230 cm
Single gross weight:
1500.0 kg
Package Type:
Pack in nude with film
Lead Time:
Quantity(Set)1 - 2>2
Est. Time(days)7To be negotiated
Product Description

Product Application


High performance diesel generator from 30KW to 250KW,  Professional manufacturer for more than 15 years.


The diesel generator set is a power supply device that uses a diesel engine as the prime mover to drive a synchronous generator to generate electricity. It is a power generation device with quick start, convenient operation and maintenance, low investment, and strong adaptability to the environment.

SPECIFICATIONS FOR 100KW DIESEL GENERATOR
Model
HW-100DG
Starting model
Electric starting
Engine type
Four stroke water cooled in line vortex
Cylinder & size
4  105*130mm
 Piston Total Displacement
6.8L
compression ratio
19/1
Ignition sequence
1-3-4-2
 Air admission way
naturally aspirated
Rated power
100KW/1500rpm
Maximum control speed
1575r/min
Min. control speed
500r/min
mean effective pressure
650kPa
lubricating system
Pressure splash compound
Net weight
1100kg
Type of cooling
forced water cooling
 exhaust gas temperature
470
Certifications
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
