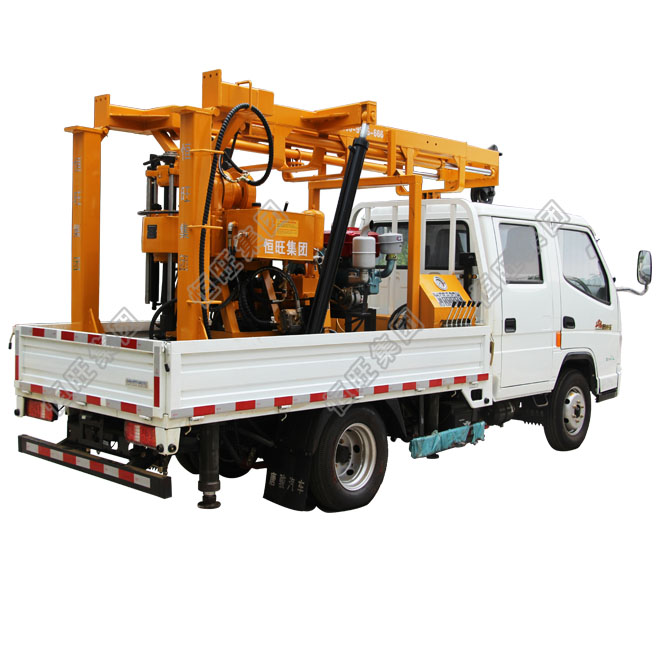

Geological core drilling rig / Core drilling machine/ Hydraulic exploration drilling rig

Click on the image to view the original image

Product：	views：8Geological core drilling rig / Core drilling machine/ Hydraulic exploration drilling rig
Branch：	HW
Type：	drilling rig, drilling rig
Size：	80X60X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:41

Product Details

Overview

Quick Details

Applicable Industries:: Building Material Shops, Construction works

Condition:: New

Type:: drilling rig, drilling rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: drilling rig for hard rock

Voltage:: drilling rig

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 2330kg

Certification:: BV,SGS

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Maximum diameter:: 200mm

Drill Deep:: 300m

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X60X30 cm

Single gross weight:: 68.0 kg

Package Type:: drilling rig Standard wooden case packing

Lead Time:

Quantity(Set)	1 - 5	6 - 10	>10
Est. Time(days)	2	3	To be negotiated

Product Description

Water well drilling rig

Features:
1. the machine is equipped with crawler chassis device,easy to move with fast speed.
2. hydraulic oil pressure feed device,improve drilling defficiency.
3. pressure gauge display the condition of the bottom of the drill hole.
4. drill mast controlled by hydraulic cylinder,improve the efficiency
5.diesel engine adopt the electric starter,to reduce the labor itensity

2.Applications of HWD-160 crawler-mounted Water Well Drilling Rig
Crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.

Max open hole caliber	400mm	Drilling depth	30-230m
Drilling direction	45-90 degree	One-time drilling length	1500MM
Drilling rotary speed	52	Working pressure	1.45-2.5Mpa
Air Consumption	21 M3/MIN	Weight	1.8 Ton
