Home > Products > Multi-function digging and loading truck mounted digger/excavator
Multi-function digging and loading truck mounted digger/excavator
Click on the image to view the original image
Product： views：6Multi-function digging and loading truck mounted digger/excavator
Branch： Hengwang
Size： 450X220X220 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:41
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.2-0.4
Operating Weight:
10ton
Rated Speed:
60km/h
Warranty:
1 Year, 12 months
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Construction works
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Condition:
New
Moving Type:
Wheel Excavator
Maximum Digging Height:
5m
Maximum Digging Depth:
800mm
Max Digging Radius:
500mm
Hydraulic Cylinder Brand:
Donghu
Hydraulic Pump Brand:
Jungong
Hydraulic Valve Brand:
Jinzhou
Engine Brand:
Weichai
Style:
Wheeled truck with digger
usage:
excavating and transporting soil and sand
Engine:
Weichai
Color:
Customized
Capacity:
5ton-20ton
Drive model:
4*4 or 4*2
Steering system:
Full hydraulic type
Braking system:
automatically air-cut brake
tyre size:
825-20, 1200-20

Packaging & Delivery

Selling Units:
Single item
Single package size:
450X220X220 cm
Single gross weight:
4500.0 kg
Package Type:
Pack in nude for 20'GP container Multi-function digging and loading truck mounted digger/excavator
Lead Time:
Quantity(Set)1 - 2>2
Est. Time(days)15To be negotiated
Video Description
Product Description

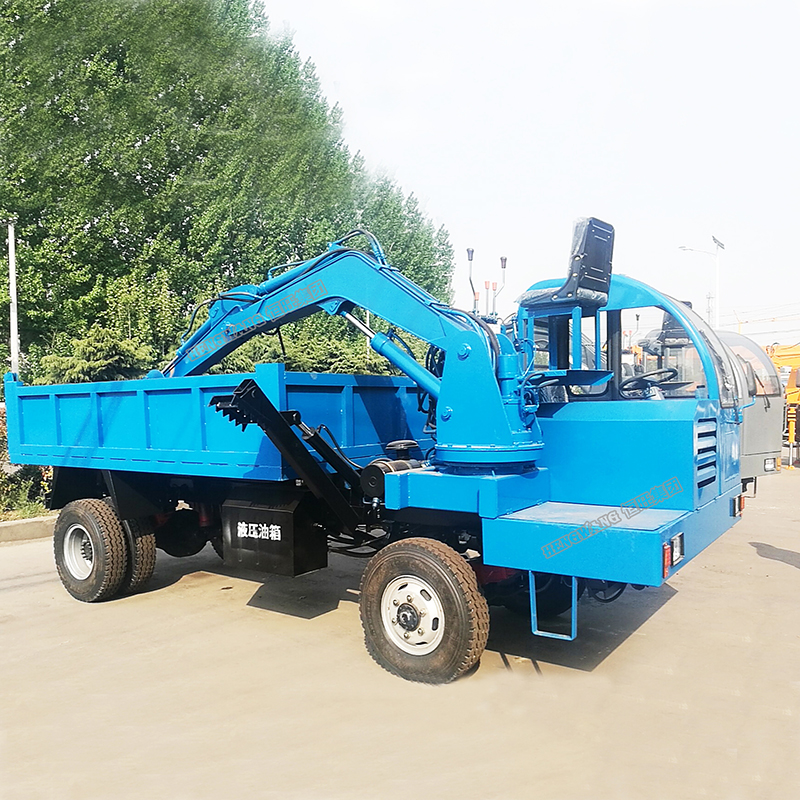

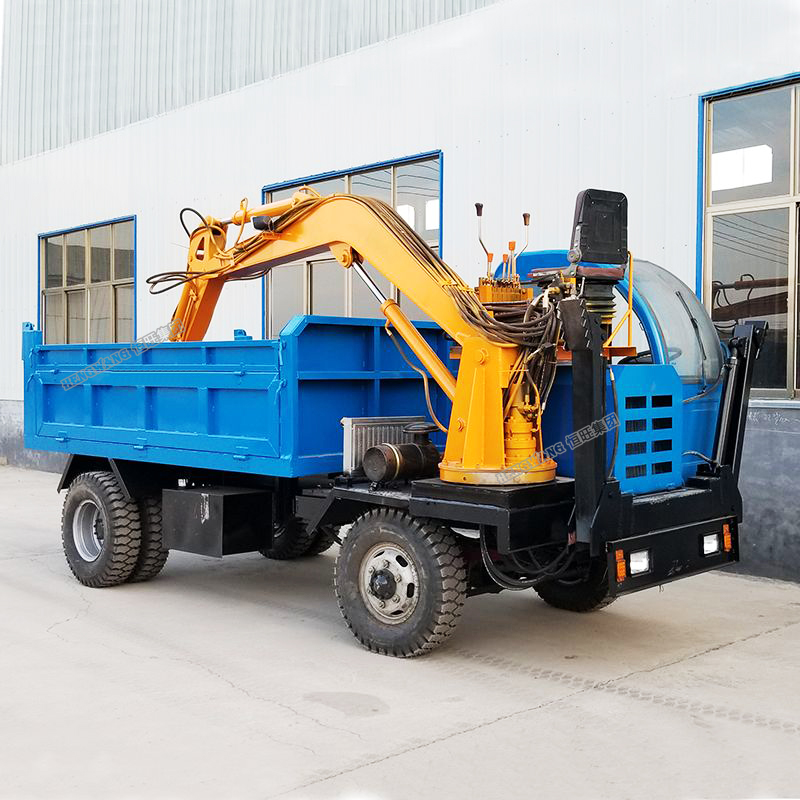

Multi-function digging and loading truck mounted digger/excavator


Product Application

Truck with excavator is New Design Carrier, Excavating, loading and transporting for soil and sand all-in-one machine.

The loading cacpacity from 5ton -20ton.


Our advantages:

1. An engineering vehicle that integrates excavation/digging, loading and transportation etc.

2. Self-loading and unloading, widely used in sand field and earthwork.

3. Four-wheel drive 4X4 drive, with high horsepower. also produce 4x2 drive

4. Amazing efficiency, especially in the sand field, sand, earth transport, garbage transfer, etc

5. Double top dump;unload the goods backward; unload goods on either side

SPECIFICATIONS FOR TRUCK WITH EXCAVATOR
Model
5T
10T
Whole machine weight
3500kgs
4500kgs
Max. loading capacity
5000kgs
10ton
Max. traveling speed
60km/h
80km/h
Maximum gradeability
32 degree
32 degree
Engine model
490
4102 engine (turbocharged)
Max. power
85HP
110HP
Front and rear axle
Dongfeng 1061 axle
Dongfeng 1080 axle
Tire
750-16
825-20
Bucket capacity
Customized(3m*2m*0.7m)
Customized(3m*2m*0.8m)
Gear box
145 Dongfeng 6 speed with high slow speed
Electric System
24V rated voltage
Bucket capacity
0.25CBM
0.3-0.4CBM
Digging width
500mm(can customize)
700mm
Arm length
3m(Special pipe hydraulic system for big digger)
5m(Special pipe hydraulic system for big digger)

Main Features

1) The chassis is made of engineering four, unlike the chassis of the car.

2) The excavation part is the same as the crawler excavator, which can be rotated 360°, very convenient.

3) Frame: Rectangular steel tubes are strong and durable

4) Hanger bracket: Symmetrical semi - ellipse weighted steel structure spring

5) Save cost for you really

Certifications
Detailed Images

Machine Parts

Name:  Digging bucket and digging arm

Brand: HW

Length can be 5m, strong and 360° rotary, very convenient


It can be changed to crane for lifting goods.

Main Features

Name: Foundation support
Brand: HW
Very stable and strong with long service life for the truck with excavator


Superior waterproof performance, high-speed waterproof sealing treatment for vehicle lines and electrical appliances, effectively avoiding leakage due to rainwater

Machine Parts

Name: Cab
Independent Independent steel structure, more protection, also can without the cab.

Main Features

Name: Bucket
Brand: HW
The bucket size can be customized, normally 3m*2m*0.7m

It can load soil, sand, graveletc.

Our Factory
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4.5m*2.2m*2.2m
Weight
5ton



Packaging Details
Shall be loaded by 1X20"GP container

Multi-function digging and loading truck mounted digger/excavator
