- Machine Weight:
- 17000KGS
- Dimension(Long * Breadth * High):
- 5140*3388*3032 mm
- Warranty:
- TWO YEARS
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Bulldozer
- Type:
- 160HP Hydraulic standard
- Displacement:
- 9.726 L
- Name:
- Crawler Bulldozer
- Operating weight:
- 17000 Kg
- Blade width:
- 3390 mm
- Blade height:
- 1150 mm
- Max pressure:
- 14 MPa
- Min ground clearance:
- 405 mm
- Track gauge:
- 1880 mm
- Original:
- Chian
- Supply Ability:
- 300 Set/Sets per Month crawler bulldozer
- Packaging Details
- Widely UsedBulldozer Track Chain Standard Bulldozer
- Port
- QINGDAO PORT
- Lead Time:
Quantity(Sets) 1 - 5 6 - 10 >10 Est. Time(days) 2 5 To be negotiated
Chinese Cheap crawler bulldozer SD32 for sale

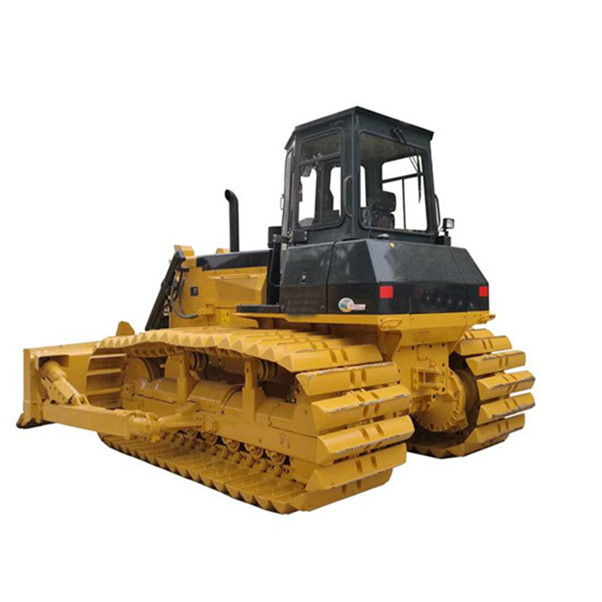

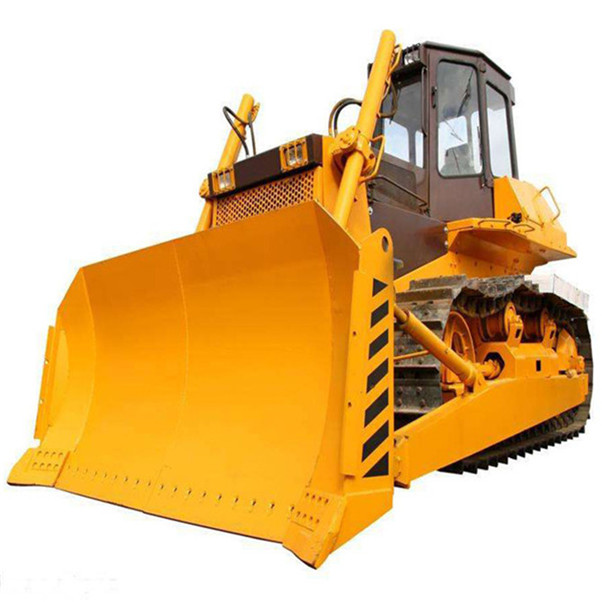

Crawler bulldozer
A bulldozer is an engineering vehicle. There is a large metal bulldozer in front, the bulldozer is put down during use, the mud, sand and stones are shoveled forward and pushed. The position and angle of the dozer can be adjusted. The excavation, earth moving and unloading can be done separately. Soil work.
The bulldozer has the characteristics of flexible operation, convenient rotation, small working face and fast driving speed. It is mainly suitable for shallow excavation of one to three types of soil, such as site cleaning or leveling, foundation pits with little excavation depth and backfilling, pushing subgrades with low height, etc.





Chinese Cheap crawler bulldozer SD32 for sale
Models
Model | HWD16 | HWD22 | HWD32 |
Rated power (kw/rpm) | 131/1850 | 175/1800 | 235/2000 |
Displacement (L) | 9.726 | 14.01 | 14.01 |
Max.torque(N.m/rpm) | 830/1000-1200 | 1030/1250 | 1440/1400 |
Operating weight (kg) | 17000 | 23500 | 37200 |
Dimension(no ripper)(mm) | 5140*3388*3032 | 5492*3726*3742 | 6885*4128*3645 |
Min ground clearance (mm) | 405 | 405 | 500 |
Ground pressure(Mpa) | 0.067 | 0.072-0.077 | 0.105/0.09/0.078 |
Track shoe width(mm) | 510 | 560/610/660 | 560/660/760 |
Dozing capacity (M3) | 4.5 | 6.4 | 10 |
Blade width(mm) | 3390 | 3725 | 4130 |
Blade height(mm) | 1150 | 1315 | 1590 |
Pitch(mm) | 203.2 | 216 | 228 |
Forward(km/h) | 3.29/5.82/9.63 | 3.6/6.5/11.2 | 3.6/6.5/11.2 |
Reverse (km/h) | 4.28/7.59/12.53 | 4.3/7.7/13.2 | 4.4/7.8/13.5 |
