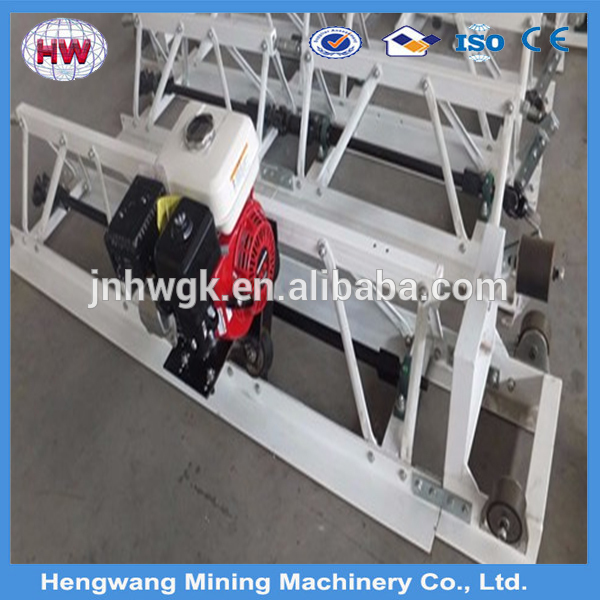

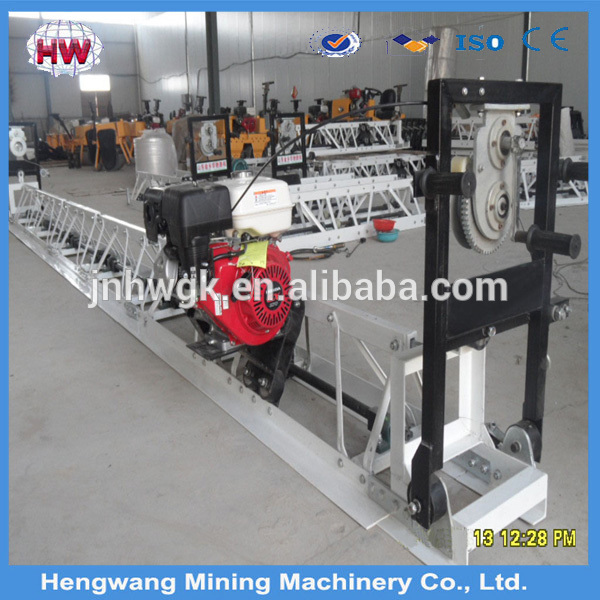

5.5HP 9Hp 13HP Concrete Vibrating Truss Screed/ Screed concrete vibrator/ Concrete screed
A. Suitable for flat cement and concrete surface during construction building site androad
construction and so on.
B. High speed and efficiency,easy for take.Strickling and vibrating finish together.
C. Operator can adjust the impact force at any moment, manual accelerograph controls vibrating
frequency.
D. Concrete surface after vibration,no need to sprinkle dry cement when press polish.
It reduce the construction cost and repair frequency greatly.
E. Can avoid situation as concrete surface empty,knob and split completely which usually appear
after concrete surface constructing. Finish the firmly,solid and close-graind concrete surface.
Parameter
| Model | HW-ZP55 | HW-90 | HW-130 |
| Engine Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Power | 5.5HP/4.0kw | 9HP/5.5kw | 13.0HP/7.5kw |
| Engine Type | Gasoline engine, air-cooled 4-stroke | ||
| Working Width | 4m-7m | 8m-12m | 12m-16m |
| Working Depth | 260mm | ||
| Vibration Frequency | 70Hz | ||
| Induced Vibration Force | 11kN/(≤)2000mm | ||
| Fuel Tank Capacity | 3.6L | 6L | 6.5L |
| The Amount of Lubricating Oil | 0.6L | 1.1L | |
| The Amount of Fuel Consumption | 313g/kWh | ||
| Dimensions | |||
| Standard Knot | 1000/2000mm | ||
| 2m Linker | 400mm×2000mm | 68kg | |
| 1m Single Linker | 400mm×1000mm | 35kg | |
| 0.5m Single Linker | 400mm×250mmX2 | 15kg | |
