concrete pavement joint cutting machine road cutter concrete cutter machine

Click on the image to view the original image

Product：	views：6concrete pavement joint cutting machine road cutter concrete cutter machine
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:41

Product Details

Overview

Quick Details

Cutting Depth:: 5cm

Power(W):: 13HP

Rotary Speed:: 3600 rpm

Power Source:: gasoline, gasoline

After-sales Service Provided:: No overseas service provided

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Diameter of Blade:: 180mm

Voltage:: 380

Weight:: 95KG

Dimension(L*W*H):: 650*1100*1000mm

Certification:: ISO9001

Running Speed:: 35-50 m/s

Name:: Concrete Road Cutting Machine

Engine:: Honda GX390

Cooling water tank capacity:: 28L

Cutting width:: 3-5 mm

Install Aperture:: 26-50 mm

Cooling form:: spray

Max. Cutting Depth:: 130m

Supply Ability

Supply Ability:: 20000 Set/Sets per Year road cutting machine

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Lead Time:: Shipped in 7 days after payment

Product Description

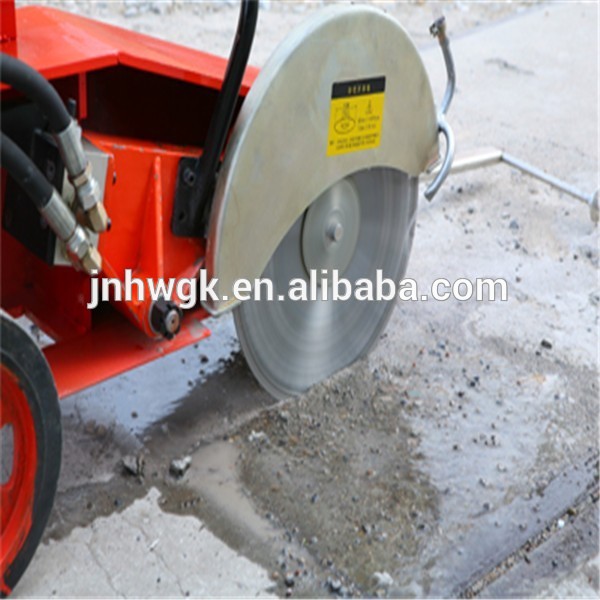

Road Cutting Machine
Road Cutting Machine (often known as Asphalt Road Cutter or Road Cutter) is a power tool used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials.
It can be a small hand-held cut-off concrete saw, a big walk-behind concrete cutter or other styles, besides the gasoline, petrol engines; it can also be powered by diesel, hydraulic or pneumatic pressure, or electric motors. The cutter blades used on concrete cutters are often diamond cutter blades to cut concrete, asphalt, stone, etc.

SPECIFICATIONS FOR ROAD CUTTING MACHINE
Model	HW-400	HW-500	HW-600
Length * Width*Height (mm)	1200400820	1980630900	1815540800
Blade Dimensions (mm)	400	500	600
Cutting Depth (mm)	130	180	230
Cutting depth adjustment	Screw	Screw	Screw
Cutting speed (m / min)	1-2.5	1-2.5	1-2.5
Propulsion	Hand push	Hand push	Hand push
Water tank capacity (L)	38	38	49
Engine lubricating oil capacity (L)	1.1	1.5	1.8
Rated power (KW)	8.5	8.5	20
Rated speed (rpm)	3600	3600	3600
Idle speed (rpm)	1500±150	1500±150	1500±150
Air displacement(cm3)	390	390	620
Fuel tank capacity (liters)	6.0	6.0	6.0
Fuel consumption (liters / hour)	1.1	1.1	2.2
Fuel grade	Above 90# unleaded gasoline	Above 90# unleaded gasoline	Above 90# unleaded gasoline

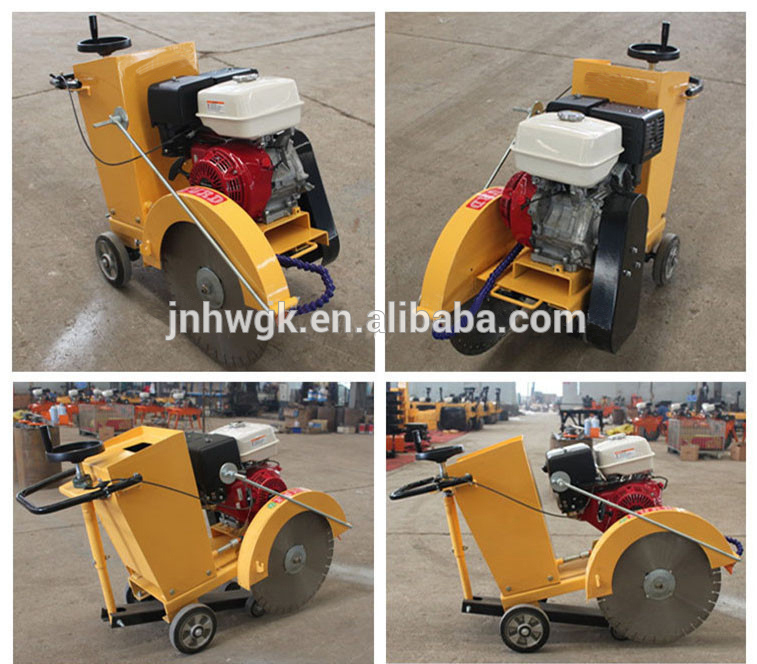

Products Show

Road cutting machine

Honda engine

Electric

Gasoline

Diesel

1.Double water pipe---better cooling both side of blade
2.Rustless/ABS water tank---providing an optimum flow and volume of water for the blade
3.Super-rigid box frame---ensuring straight auts while resisting warping and vibration
4.Hinged front,lift-up blade guard--- to conveniently replace the diamond blade
5.Adjustable height handle---to esaily raise or lower cutting depth
