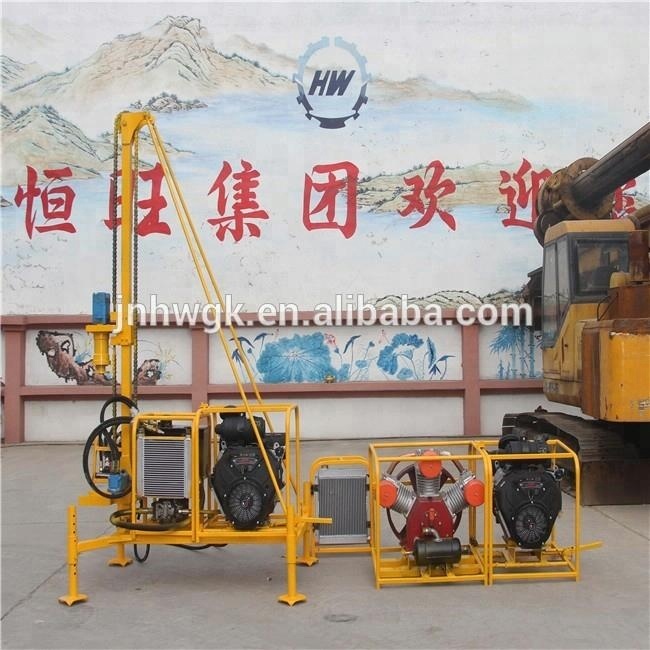

Compressed air hydraulic rock drilling machine

Click on the image to view the original image

Product：	views：6Compressed air hydraulic rock drilling machine
Branch：	Hengwang
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:41

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Model Number:: HW-S30

Usage:: Geophysical exploration

Voltage:: 220V/380V

Power(W):: 26KW

Dimension(L*W*H):: 1500*1000*2400mm

Weight:: 150kgs

Certification:: ISO CE

Name:: Compressed air hydraulic rock drilling machine

Application:: Mountain seismic exploration drilling

Model:: HW-S30

Drilling depth:: 30m

Drilling diameter:: 75-90mm

Color:: yellow or red, blue

Feature:: Portable for oil exploration, geological exploration

Rated Power:: 26KW

Air compressor flow:: 3.5/3.8m3/min

engine:: Loncin engine

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 100 Set/Sets per Week

Packaging & Delivery

Packaging Details: Standard wooden case
Compressed air hydraulic rock drilling machine

Port: Qingdao, Shanghai, Tianjin port

Lead Time:: 5days after receive the payment

Product Description

Compressed air hydraulic rock drilling machine

HW-S30 Hydraulic mountain drill rigis a series of products developed by the company with independent intellectual property rights.
Mountain drilling rigare widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc..

Advantage:

1.Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility,interchangeable.
2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.
3.Variable pump used in Hydraulic station, So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.
4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.

Compressed air hydraulic rock drilling machine Specification
Model		HW-S30
Drilling depth		30m
Drilling diameter		75-90mm
Drill type		Air downthehole hammer (air hammer)
Drill rod (Dia*Length)		Φ50mm*1500mm
Application		Rock 70-90 soil sand 75-95
Power head	Rated torque(N.m)	800-900
Power head	Rated speed range (r/Min)	0-135
Drilling pressurization and lifting	Feed pressure (N)	5500-6000
	Lifting power(KN)	12-16
	Max. lifting speed(m/s)	0.71-0.81
Hydraulic System	Flow(L/Min)	0-60
Hydraulic System	Work pressure (Mpa)	20
Main engine power (kw)		26
Main engine speed (r/Min)		3600
Air compressor unit	machine type/quantity	Piston type/1unit	Screw
	Flow(m3/min)	3.5	3.8
	Pressure(Mpa)	0.8
