Towelling machine
Product Introduction
1. Appearance using fluent without acute Angle design, make the operator more safety
2. The dish be made with alloy cold rolled sheet to ensure machine strong and durable
3. Machine shell adopt electrostatic coating tech, not only beautiful but also eliminate the influence of corrosion on the machine
4. adjustment Angle precisely
5. Adjustable plate diameter, applicable to different work environment, more convenient
6. superior transmission gearbox, powerful and reliable, mute, aluminum casing is easy to heat dissipation
7. Increase to improve work efficiency, more than 20% faster than traditional models
8. Equipped with oil level display table
Technology Parameters
Model | HW-96 | HW-80 | HW-78 | HW-65 | |||||
Weight (kg) | 392 | 310 | 325 | 295 | |||||
Dimension (mm) | L2540 X W1240 X H1300 | L1980 X W996 X H1320 | L1980 X W1020 X H1500 | L1710 X W940 X H1150 | |||||
Working diameter (mm) | L2475 X W1175 | L1900 X W915 | L1890 X W915 | L1570 X W750 | |||||
Speed (rpm) | 120 - 140 | 120 - 140 | 150 - 155 | 140 | |||||
Engine | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | |||||
Type | Honda GX690 | Kohler 34HP | Honda GX690 | Kohler Pro25 | Honda GX690 | Kohler Pro25 | Honda GX390 | Kohler Pro14 | |
Max. output kw(hp) | 17.9 (24) | 25.4 (34) | 17.9 (24) | 17.2 (23) | 17.9 (24) | 17.2 (23) | 9.6 (13) | 10.5 (14) | |
Max. speed (rpm) | 3600 | 3600 | 3600 | 3600 | |||||
Fuel tank (liter) | 15.5 | 15.5 | 12 | 6.5 | |||||

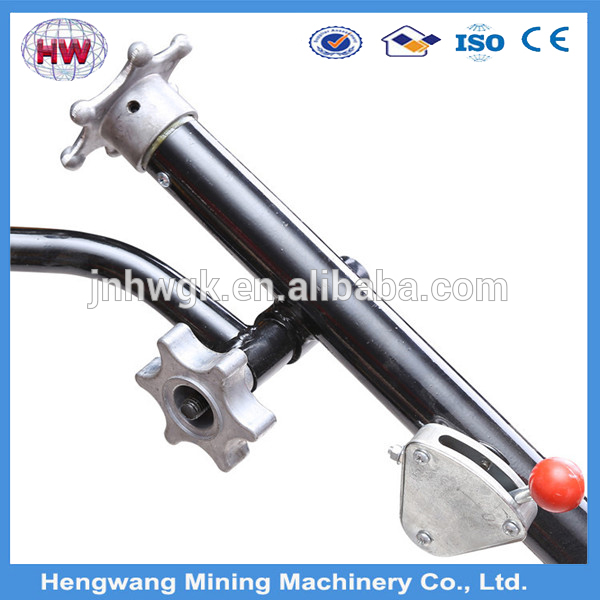

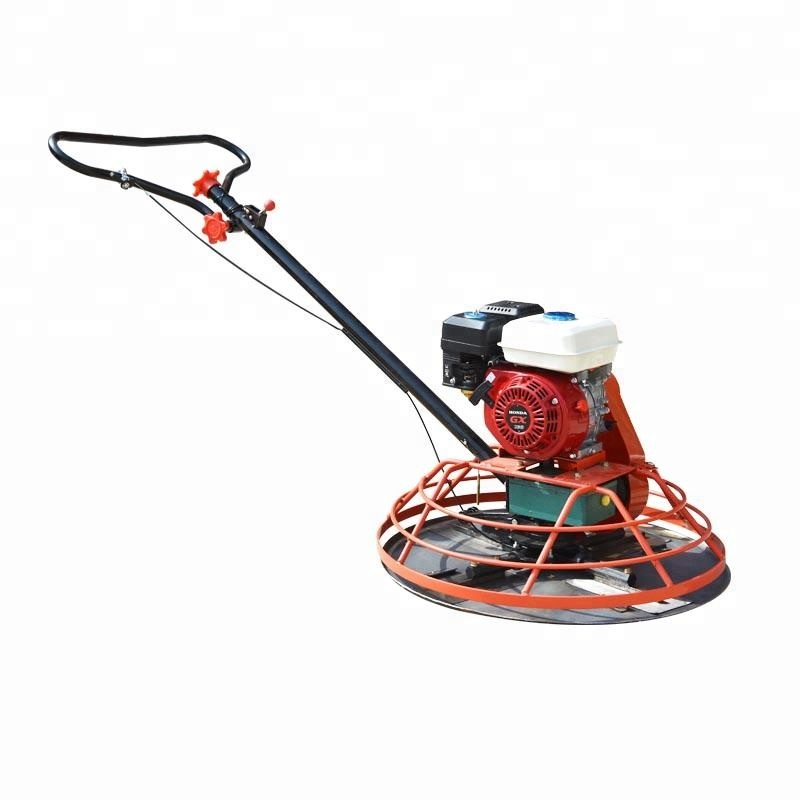

Figure photos for trowelling machine
