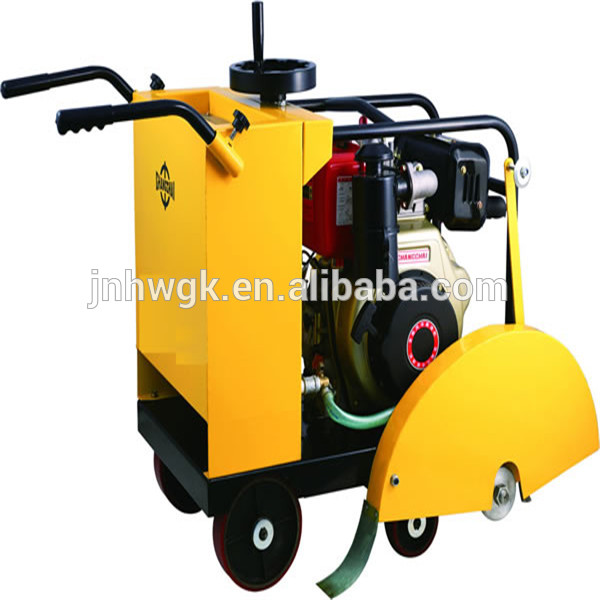

Concrete cutter
It is used to widen crack before amending seam in asphalt surface.
1.gas-powered engine,easy to moving,no power limit;
2.direction wheel design,easy to change grooving angle;
3.adopting thickened material to ensure strength of machine;
4.it can choose many kinds of blades,which can cut different shape kerfs.
Concrete Groove Cutting Machine
C
Model | HW-400 | HW-500 | HW-600 |
Length * Width*Height (mm) | 1200*400*820 | 1980*630*900 | 1815*540*800 |
Blade Dimensions (mm) | 400 | 500 | 600 |
Cutting Depth (mm) | 130 | 180 | 230 |
Cutting depth adjustment | Screw | Screw | Screw |
Cutting speed (m / min) | 1-2.5 | 1-2.5 | 1-2.5 |
Propulsion | Hand push | Hand push | Hand push |
Water tank capacity (L) | 38 | 38 | 49 |
Engine | Honda GX390 | Honda GX390 | Honda GX620()(double-cylinder) |
Engine lubricating oil capacity (L) | 1.5 | 1.8 | 1.1 |
Rated power (KW) | 8.5 | 8.5 | 20 |
Rated speed (rpm) | 3600 | 3600 | 3600 |
Idle speed (rpm) | 1500±150 | 1500±150 | 1500±150 |
Air displacement(cm3) | 390 | 390 | 620 |
Fuel tank capacity (liters) | 6.0 | 6.0 | 6.0 |
Fuel consumption (liters / hour) | 1.1 | 1.1 | 2.2 |
Fuel grade | Above 90# unleaded gasoline | Above 90# unleaded gasoline | Above 90# unleaded gasoline |
oncrete Groove Cutting Machine
