Product Introduction
Features:
1- Aluminum alloy for lighter weight and better thermal diffusivity
2- 20CrMnTi alloy gears for higher intensity and higher wearing resistance
3- 65Mn steel springs for higher elasticity
4- PU bellow with higher intensity and longer durability
5- Powder metallurgy clutch for better transmissibility and higher wearing resistance
6- Forged alloy steel plate wraped with high intensity rubber for higher intensity and better shock
absorption
Technology Parameters
| Model | Rammer LH60 | Rammer LH70 (Mikasa style) |
| Engine | Honda GX160 5.5HP | ROBIN EH12 4HP or GX100 3HP |
| Bello | Polyurethane Dust-guard Bellow | Polyurethane Dust-guard Bellow |
| Take off high | 40-65mm | 85mm |
| Tamping Depth | 55mm | 65mm |
| Impact Frequency(/M) | 420-650 | 680-710 |
| Walk Speed | 17-20mm/s | 17-22mm/s |
| Plate Size | 340mm*285mm | 340mm*290mm |
| Optional Engine | Chinese Loncin | HONDA or Robin |
| Model | Rammer LH80 | RammerLH100 (Wacker stye) |
| Engine | Honda GX160 5.5HP | Honda GX100 3HP |
| Bello | Polyurethane Dust-guard Bellow | Polyurethane Dust-guard Bellow |
| Take off high | 40-65mm | 65mm |
| Tamping Depth | 55mm | 55mm |
| Impact Frequency(/M) | 420-650 | 600 |
| Walk Speed | 25mm/s | 28mm/s |
| Plate Size | 330mm*285mm | 340mm*285mm |
| Optional Engine | Chinese Loncin | Null |

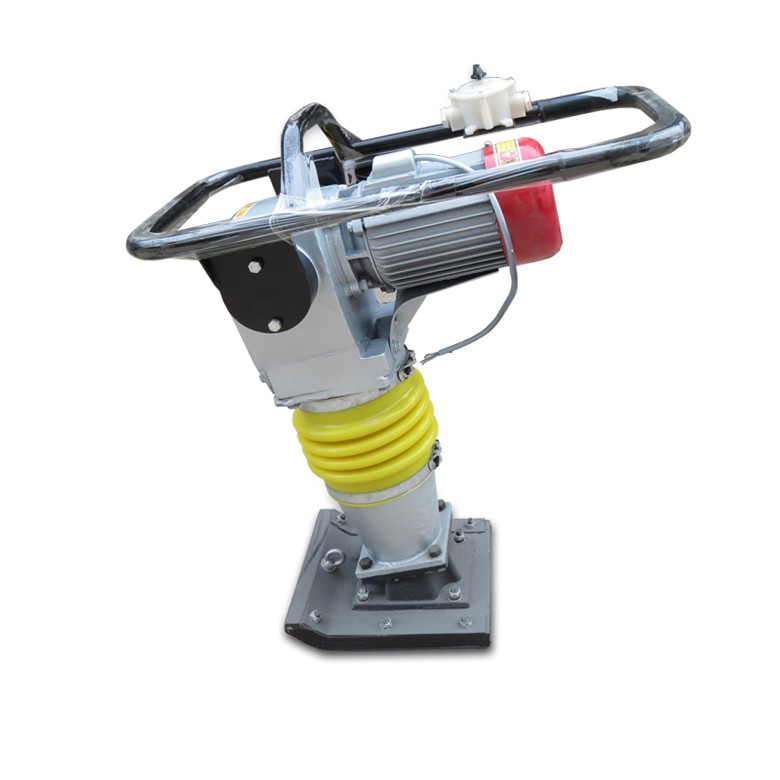

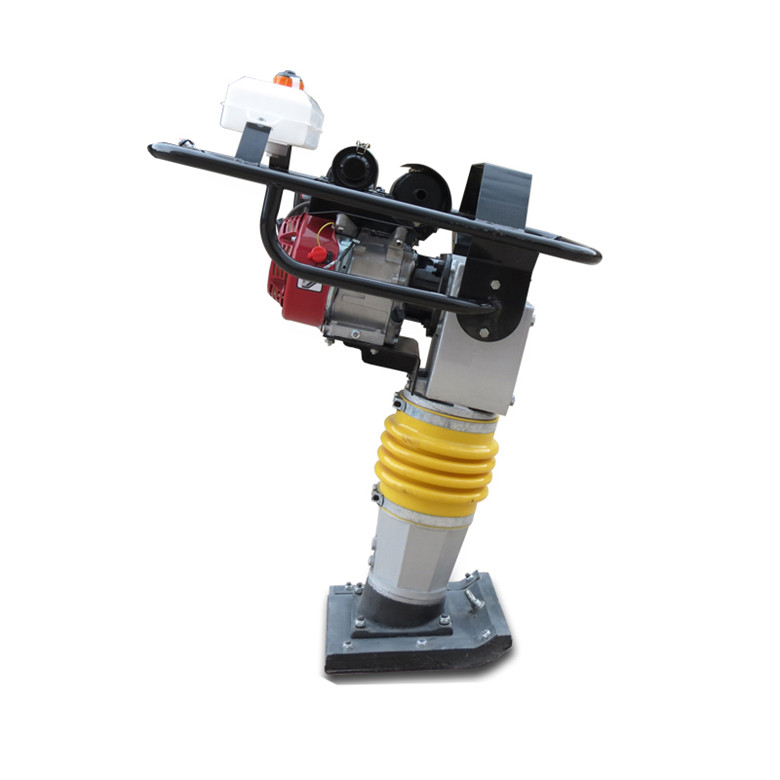

The real details photo
Qualification & certification
History order
Our service
