Home > Products > vibratory floor leveling surface finishing machine vibrating concrete screed

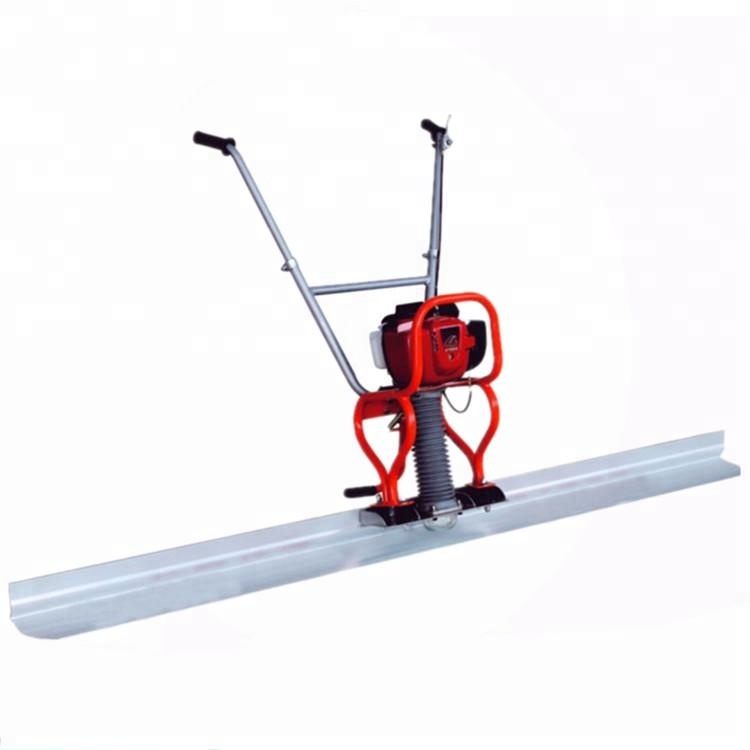

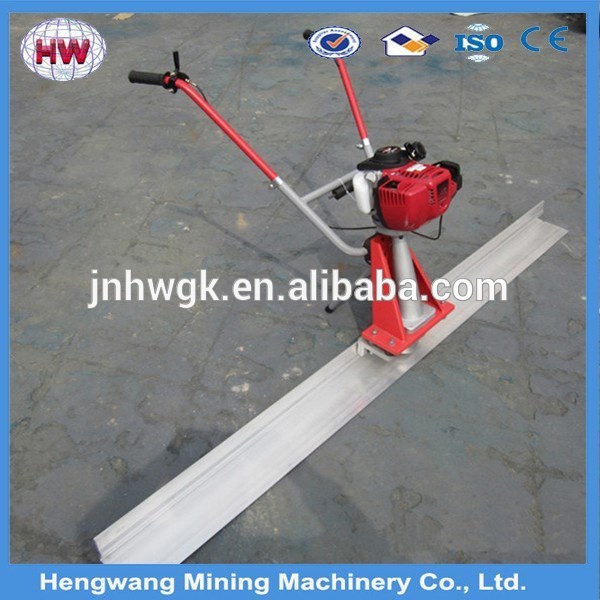

vibratory floor leveling surface finishing machine vibrating concrete screed

Click on the image to view the original image

Product：	views：5vibratory floor leveling surface finishing machine vibrating concrete screed
Branch：	HWGK
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:41

Product Details

Overview

Quick Details

Power Source:: Electric

Power(W):: 1.2kw

Dimension(L*W*H):: L2500*W1400*H960

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: HW

Voltage:: 220V

Weight:: 25KG

Certification:: CE

name:: Surface Finishing Screed

quality:: good

Fuel tank (liter):: 0.65

Max. speed (rpm):: 5200

Drive system (mm):: 2500

usage:: construction

Max. output kw(hp):: 1.2

Dimension (mm):: L2500 X W1400 X H960

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1

Supply Ability

Supply Ability:: 20000 Set/Sets per Year concrete screed

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Lead Time:: ten days

Surface finishing screed

Product Introduction

A. Suitable for flat cement and concrete surface during construction building site androad

construction and so on.

B. High speed and efficiency,easy for take.Strickling and vibrating finish together.

C. Operator can adjust the impact force at any moment, manual accelerograph controls vibrating

frequency.

D. Concrete surface after vibration,no need to sprinkle dry cement when press polish.

It reduce the construction cost and repair frequency greatly.

E. Can avoid situation as concrete surface empty,knob and split completely which usually appear

after concrete surface constructing. Finish the firmly,solid and close-graind concrete surface.

Technology Parameters

Model	LH-25 Gasoline	LH-25 Electric
Weight (kg)	25	20
Dimension (mm)	L2500 X W1400 X H960	L2500 X W950 X H810
Drive system (mm)	2500	2500
Engine	Flexible shaft	/
Type	Air-cooled, 4-cycle, Gasoline, Honda GX35	380v/50hz/3p
Max. output kw(hp)	1.2 / (1.6)	0.25 / (0.33)
Max. speed (rpm)	5200	2800
Centrifugal force (n)	/	800
Fuel tank (liter)	0.65
