1.Overview:
1)Over-built gearbox assures long service life
2)Heavy-weight design of this concrete trowel machine to assure a superior finish
3)Height adjustable handle of this concrete trowel machine ,assures operator comfort & easy control
4)Lifting tube as standard feature allows concrete trowel machine to be transported on the job-site with only two people
5)Centric-safety switch ,shuts the engine down in the event of the operator loosing control of the unit
6)Screw control ensuring precise blade adjustment
7)Lifting hook (weight 2.5kg) is available as optional for this concrete trowel machine
8)Throttle control is available as optional for this concrete trowel machine
2.feature:
Concrete Finishing Trowel Machine is used for the concrete ground (road) surface provide pulp,compaction,smooth,trowel;
HONDA power,brand-name quality assurance,superior performance,start easy;
Aluminum one gearbox,large module design,maitenance,use light,flexible;
Blade arm support ,and strictlyheat-treated structural steel,which is sturdy and durable
| Model | HW364 |
| Engine Type | Honda GX690 |
| Power kw(hp) | 18(24) |
| Weight kg(lb) | 320(705) |
| Rotor Dia.mm(in) | 910(36) |
| Max. Blade Speed rpm | 140 |
| Working Dia.mm(in) | 1890(74) |
| Capacity of water/fuel tank L | 14 |
| Dimension mm(in) | 1975x1000x1315(78x39x52) |
| Overlapping | No |

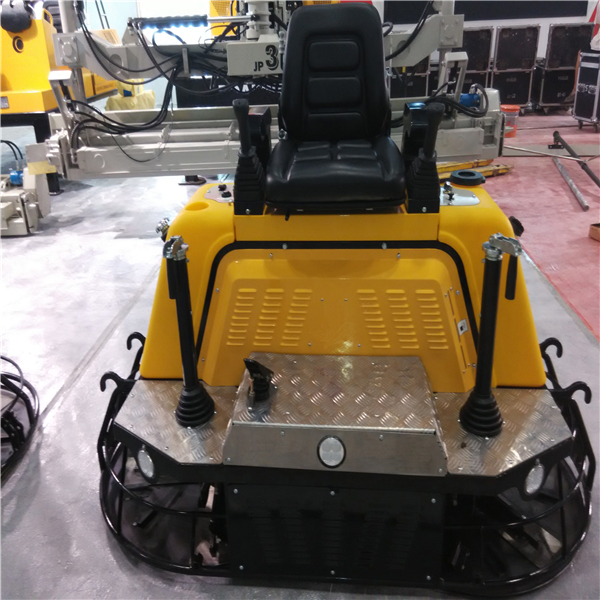

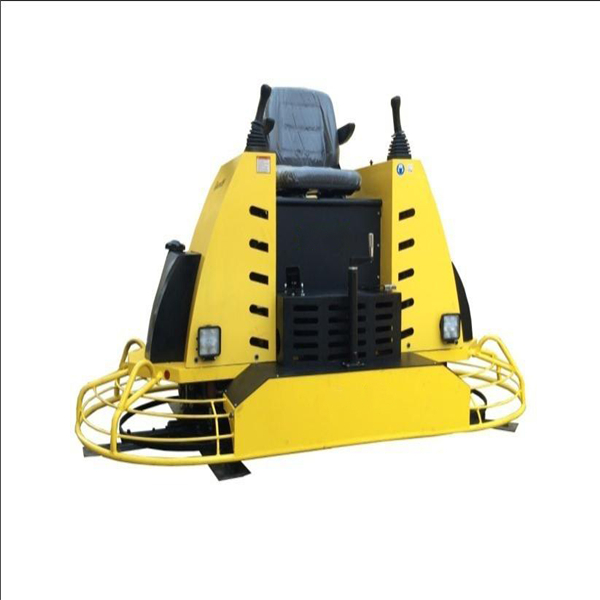

Ride-on Honda GX690 24hp concrete trowel/Concrete Finishing Trowel Machine
