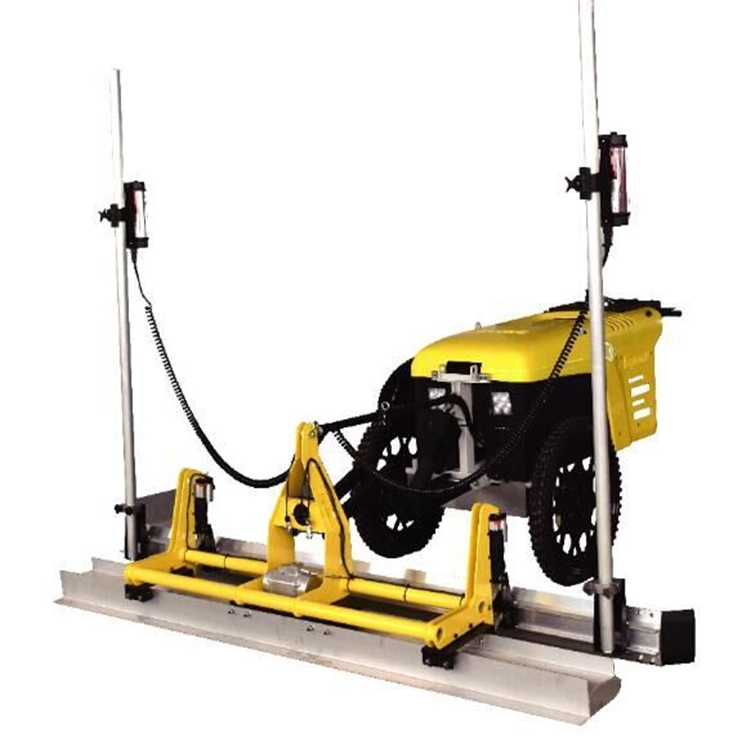

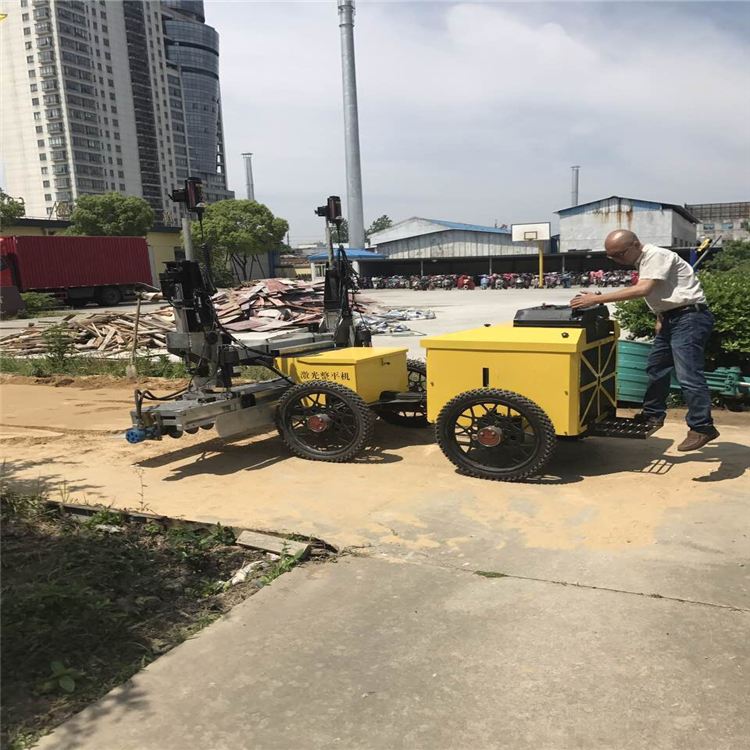

ride on concrete laser leveling machine with high planeness and levelness
Product Application
Dynamic Laser screed series could greatly improve the concrete smoothness and compaction.as well as prolong the service life of concrete floor, Widely used in modern industrial workshop, large shopping malls warehouse and other construction of large area concrete ground preferred
| HW12 | HW14 |
Engine |
| |
Model | HONDA GXType630 Electrical starting | |
Type | Gasoline, air cooled 4 stroke, OHV, double cylinder | |
Power | 20hp/3600rpm | |
Oil tank volume | 40L | |
Hydraulic oil Volume | 50L | |
Engine oil volume | 1.5L | |
Fuel consumption | 318g/kwh | |
Running device |
| |
Driving | 4 Hydraulic drive motor | |
Wheel | Solid puncture-proof tyre | |
Speed | 0-25m/min | |
Suggest working speed | 5m/min | |
Screed head |
| |
Type | Fixed | Swing type / self-levelling |
Width | 2500mm | |
Paving type | With auger | |
Auger force | Hydraulic motor | |
Exciting force | 500N | |
Vibration frequency | 50Hz | |
Self-leveling control | Proportional control | |
Screed Height | 330mm | 370mm |
Laser control system |
| |
Control type | Microcomputer laser scan | |
Control effect | Flat, slope or double slope(3D) | |
Operation mode |
| |
Chair position | Ride-on forward type | |
Forward and reverse | Hand control, stepless walking | |
Steering | Hydraulic control | |
Cleaning system |
| |
Power | Hydraulic motor | |
Theoretical flow | 20L/min | |
Rated pressure | 7MPa | |
Input port max water pressure | 0.5MPa | |
Size and Weight |
| |
Outside size | 2554×2500×2360mm | 2686x2631x2568mm |
Weight | 1080KG | 1200kg |
ride on concrete laser leveling machine with high planeness and levelness
