Home > Products > 1 ton double drum ride on mini vibratory road roller

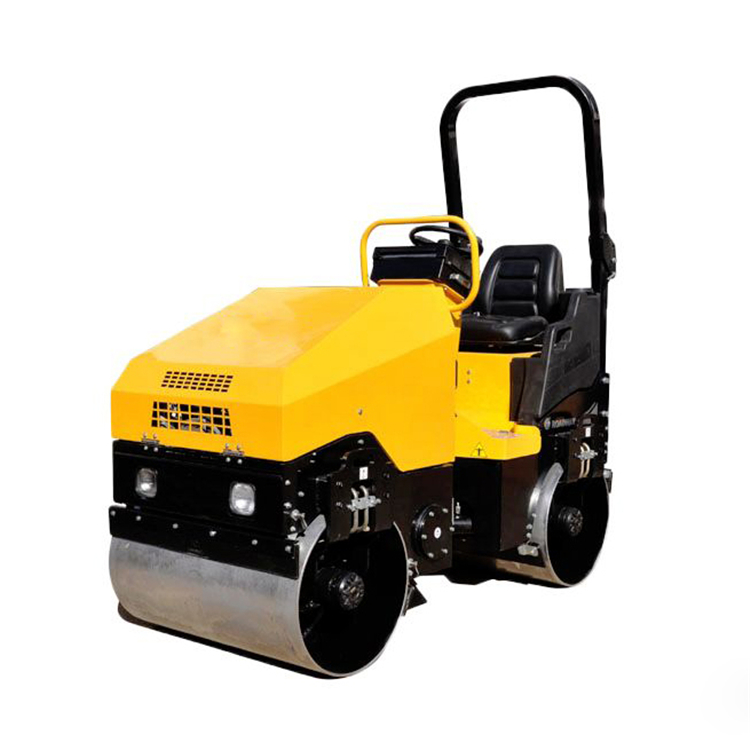

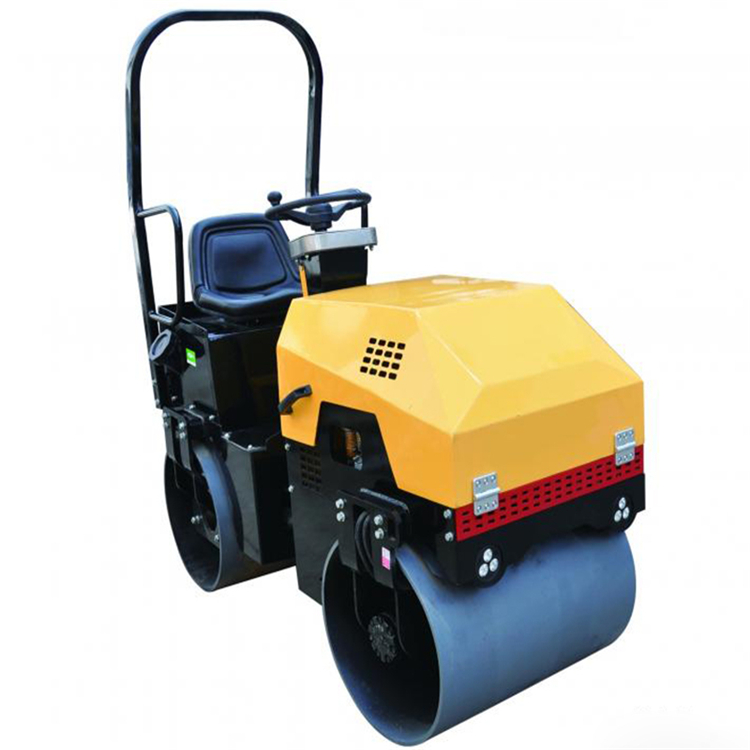

1 ton double drum ride on mini vibratory road roller
Click on the image to view the original image
Product： views：51 ton double drum ride on mini vibratory road roller
Branch： heng wang
Type： Double Drum Roller
Size： 60X50X50 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:42
  Negotiated
Product Details
Overview
Quick Details
Power(W):
13HP
Travel Speed:
0-4km/h
After-sales Service Provided:
Free spare parts, Video technical support, Online support, No after-sales service, Field installation, commissioning and training, No overseas service provided
Warranty:
1 Year
Applicable Industries:
Building Material Shops, Construction works
Condition:
New
Type:
Double Drum Roller
Grade Ability:
30%
Place of Origin:
Shandong, China
Brand Name:
heng wang
Dimension(L*W*H):
2100x970x1620mm
Weight:
1000kg
Certification:
ISO
Engine Brand:
Kohler
Product name:
1 ton double drum ride on mini vibratory road roller
Name:
rideondroule 2 ton vibratorydrum hydraulicroadroller
Vibration frequency:
70HZ
Engine:
HONDA, GX390
Exciting force:
20 KN
Engine Model:
Honda GX390 Gasoline
Starting mode:
Electric Starting
Drive Type:
Hydrostatic Drive
Model:
Honda GX390/178F

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X50X50 cm
Single gross weight:
65.0 kg
Package Type:
woodencase
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)7To be negotiated
Video Description
Product Description



The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.

Product characteristics

Double motors drive, electromagnetic clutch, hydraulic steering.

1. China top brand diesel engine, or Honda gasoline engine.

2. International brand variable plunger pump drives the machine stepless speed walking.

3. Double American brand cycloid hydraulic motors drive the machine walking.

4. Extra-large water tank reduces the frequency of water-refilling.

5. Electromagnetic clutch, integrated control lever, easy to operate.

6. Water-spraying electrically controlled, user-friendly.

7. LED lamp at front and rear for the convenience of night construction.

8. Foldable Roller Over Protection System.

9. Built-in drive motor, good compaction along the edge.



Type

HW42A

HW42AC

Run



Speed

0-4km/h

Turning radius

2600mm

Climbing capacity in theory

30%

Compaction



Static load forward/back

56/77N/cm

57/77N/cm

Nominal amplitude

0.5mm

Vibration frequency

70Hz

Exciting force

20KN

Water tank volume

48L

Working



Drive

Hydraulic double drive

Vibration

Mechanical drive, electromagnetic clutch

Turning

Hydraulic steering

Engine



Model

HONDA, GX390

186F

Type

Gasoline engine, air cooled, 4stroke, OHV, single cylinder

Diesel engine, air cooled, 4stroke, vertical type, single cylinder

Power

13.0hp/3600rpm

8.0hp/3600rpm

Fuel tank volume

6.5L

15L

Lubricant L

1.1L

1.65L

Fuel consumption

313g/kWh

280g/kWh

Dimension



Width of steel wheel(Forward and back)

700mm

Diameter of steel wheel(Forward and back)

500mm

Tread

1230mm

Total length

1810mm

Total width

830mm

Total height

1990mm

Packing size

2100x970x1620mm

Weight



Working weight

900kg

920kg



Certifications



Packaging & Shipping



Factory and Team



Customer Visit



Our Advantage



FAQ



Contact Way

Miss.Nina Rao
Overseas Marketing Manager
Tel.: 0086-537-2081658 mobile phone:008613668679003
Skype:649932389at qq.com Whatsapp:+8618353787695
E-mail:hw004at hengwanggk.com




Thank you for spending so much time reading, thank you for your time,.
