Home > Products > 1ton mini diesel engine road roller price mini road roller compactor

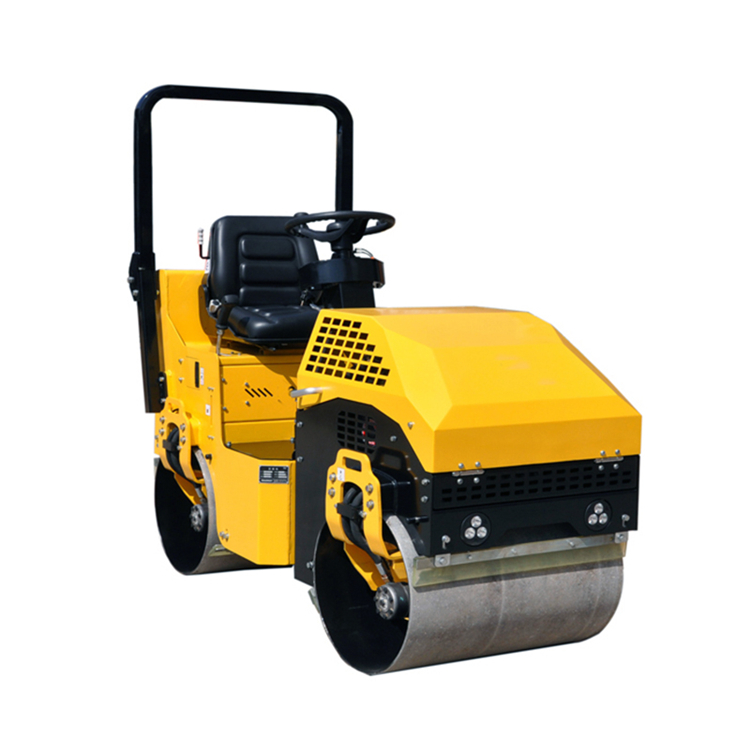

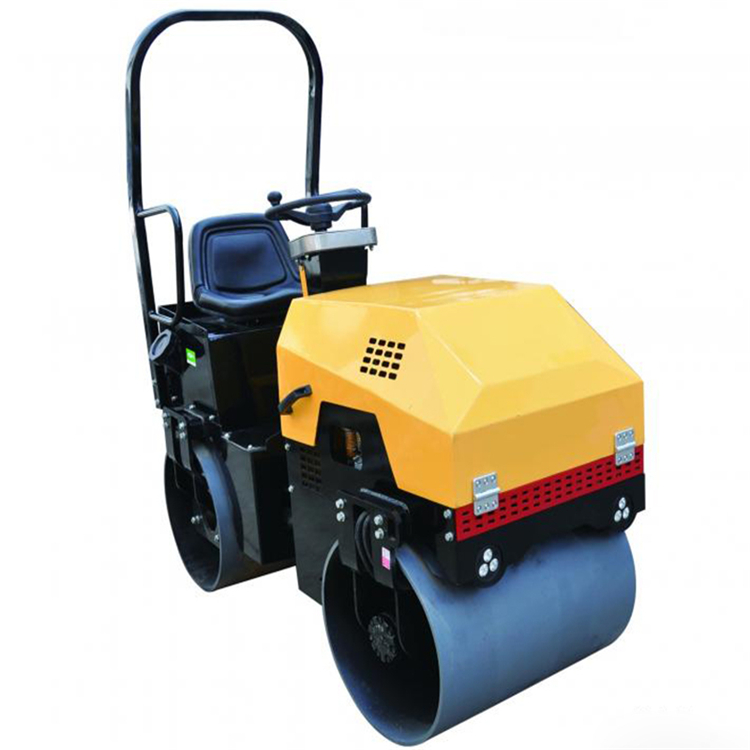

1ton mini diesel engine road roller price mini road roller compactor
Click on the image to view the original image
Product： views：51ton mini diesel engine road roller price mini road roller compactor
Branch： heng wang
Type： Double Drum Roller
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:42
  Negotiated
Product Details
Overview
Quick Details
Power(W):
13HP
Travel Speed:
0-4km/h
Static Linear Pressure:
40~70kN
Condition:
New
Type:
Double Drum Roller
Grade Ability:
30%
Place of Origin:
Shandong, China
Brand Name:
heng wang
Model Number:
HW
Dimension(L*W*H):
2100x970x1620mm
Weight:
1000kg
Certification:
ISO
Product name:
1ton mini diesel engine road roller price mini road roller compactor
Color:
Customer's Demands
Name:
rideondroule 2 ton vibratorydrum hydraulicroadroller
Vibration frequency:
70HZ
Engine:
HONDA, GX390
Exciting force:
20 KN
Engine Model:
Honda GX390 Gasoline
Starting mode:
Electric Starting
Drive Type:
Hydrostatic Drive
Model:
Honda GX390/178F
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
1000 Set/Sets per Month 1ton mini diesel engine road roller price mini road roller compa
Packaging & Delivery
Packaging Details
woodencase
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time:
within 3days afterreceiveyourfull payment
Video Description
Product Description



The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.

Product characteristics

Double motors drive, electromagnetic clutch, hydraulic steering.

1. China top brand diesel engine, or Honda gasoline engine.

2. International brand variable plunger pump drives the machine stepless speed walking.

3. Double American brand cycloid hydraulic motors drive the machine walking.

4. Extra-large water tank reduces the frequency of water-refilling.

5. Electromagnetic clutch, integrated control lever, easy to operate.

6. Water-spraying electrically controlled, user-friendly.

7. LED lamp at front and rear for the convenience of night construction.

8. Foldable Roller Over Protection System.

9. Built-in drive motor, good compaction along the edge.



Type

HW42A

HW42AC

Run



Speed

0-4km/h

Turning radius

2600mm

Climbing capacity in theory

30%

Compaction



Static load forward/back

56/77N/cm

57/77N/cm

Nominal amplitude

0.5mm

Vibration frequency

70Hz

Exciting force

20KN

Water tank volume

48L

Working



Drive

Hydraulic double drive

Vibration

Mechanical drive, electromagnetic clutch

Turning

Hydraulic steering

Engine



Model

HONDA, GX390

186F

Type

Gasoline engine, air cooled, 4stroke, OHV, single cylinder

Diesel engine, air cooled, 4stroke, vertical type, single cylinder

Power

13.0hp/3600rpm

8.0hp/3600rpm

Fuel tank volume

6.5L

15L

Lubricant L

1.1L

1.65L

Fuel consumption

313g/kWh

280g/kWh

Dimension



Width of steel wheel(Forward and back)

700mm

Diameter of steel wheel(Forward and back)

500mm

Tread

1230mm

Total length

1810mm

Total width

830mm

Total height

1990mm

Packing size

2100x970x1620mm

Weight



Working weight

900kg

920kg



Certifications
