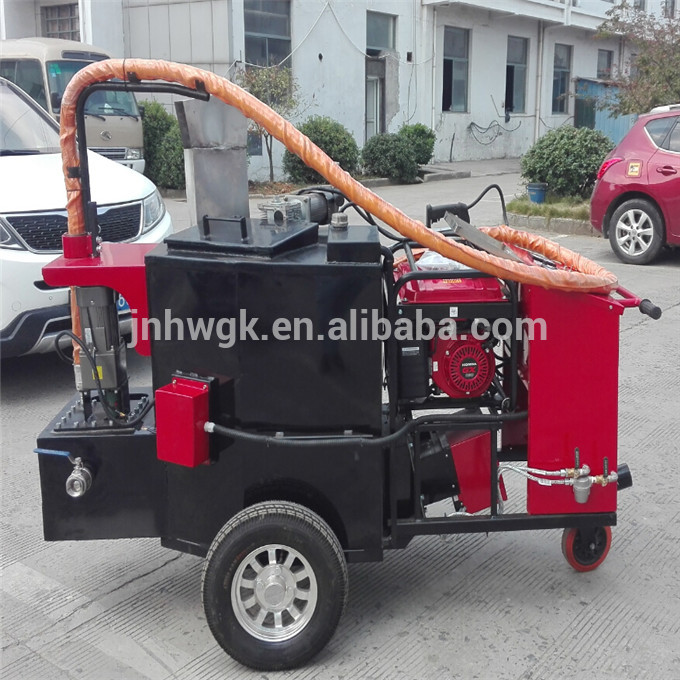

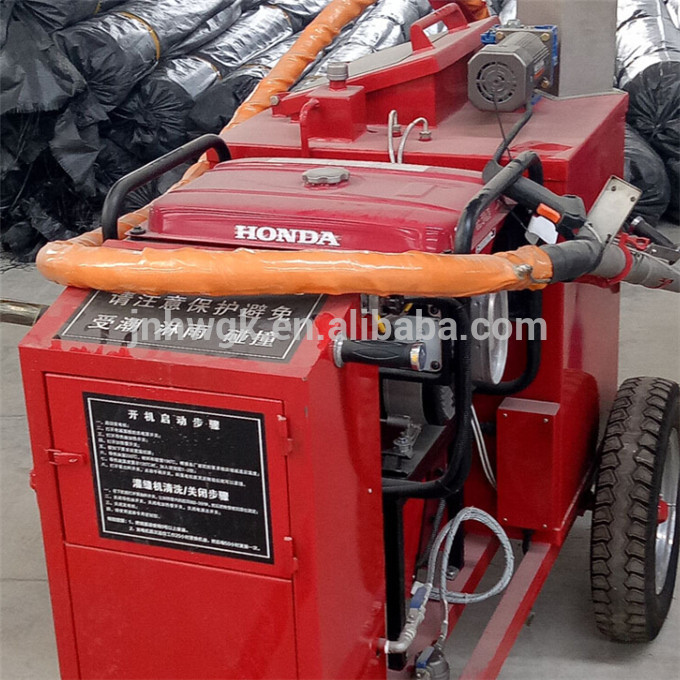

Asphalt filling machine for road repair with compact structure
The crack pouring of hignway,municipal road,airport runway,country road,neighborhood and factory road ,etc.
Features and Benefits
1.To clean energy fuels, easy to use
2.Equipped with generators, providing enough power
3.Conduction oil circulation, the manual mixing, so that uniform heating fast, insulation lasting
4.Discharging pipeline heating, no need of cleaning
5.Control operation, adjustable flow
6.For ordinary asphalt and glue can be used
7.Rear universal rotation, can seam irregular cracks
8.Outlet adjustable, ensure the filling effect
9.It is a economical and environmental-friendly product.
Detailed Specification:
Model | JHG-100 |
Generator | Honda 2.2KW ,Output power.50HZ |
Volts | 220VRotateSpeed/Frequency:4000rmp(50HZ) |
The length of electric heating tube | 5M |
Conduction oil | 15L |
Stirring Method | Automatic mixing style |
Hot melt kettle volume | 100L |
Feeding Pump | Oil circulation heating pump |
Combustor | Ltalian Riello combustor |
Temperature control system | Automatic control by computer with digital display screen. |
Heating method | Conduction oil indirect heating and extemal oil pump circulating heating |
Feeding Mechanismrol | The outer material pump, the infinite speed regulation control, positive and negative control |
Filling material heating time | 40 minutes under normal temperature |
Feeding mouth size | 280*380 |
Operation weight | 265kgs |
Package Weight | 305kgs |
Size | 1900*1050*1300mm |
Asphalt filling machine for road repair with compact structure
Asphalt filling machine for road repair with compact structure
Asphalt filling machine for road repair with compact structure
Asphalt filling machine for road repair with compact structure
