Double steel drum 5ton 6ton vibration road roller

Click on the image to view the original image

Product：	views：5Double steel drum 5ton 6ton vibration road roller
Branch：	HW
Type：	Double Drum Roller
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:42

Product Details

Overview

Quick Details

Power(W):: 9HP

Travel Speed:: 0-8km/h

Static Linear Pressure:: 40~70kN

Condition:: New

Type:: Double Drum Roller

Grade Ability:: 30%

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Dimension(L*W*H):: 2200X980X1620mm

Weight:: 980kg

Certification:: SGS

road roller oil Tank:: 1.65L

small road roller type:: single /double drum walk behind road roller, ride on road roller

Drive mode:: hydraulic drive

vibration control:: automatic clutch

Exciting force:: 30KN

Color:: Yellow

Name:: Ride OnRoad Roller

Engine:: 186F

Road roller frequency:: 70HZ

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 500 Set/Sets per Month ride on road roller

Packaging & Delivery

Packaging Details: road roller packing within wooden case

Port: QingdaoTianjin Shanghai, Ningbo

Lead Time:: Shipped in 2 days after payment

Product Description

ride on road roller

Application
Road, trenches, country and township roads and parking ground etc. This roller is suitable for compacting and repairing the asphalt pavement and road base.

Specification for double drum vibratory road roller
Model		HW-700A
Operating weight		1000KG
Diameter of vibrating drum	Φ530mm	Theoretical amplitude of vibration	0.5mm
Rolling width	700mm	Moving speed	0-5km/h
Static Linear Pressure	77N/cm	Fuel consumption	280g/kmh
Exciting force	30kn	Grade ability	30%
Vibration frequency	70Hz	Diesel engine: model	Changchai 186F
Overall dimensions (L W H)	2200×980×1620mm	Rated rotation speed	8.0HP/3600rpm

Main Features

1).Operating radius is small, can work in a small area;
2).HONDA diesel international brands, brandname quality assurance,superior performance, easy start;
3).The use of international brandname SAUER hydraulic drive unit,variable speed
4).Handrails using plane gear adjusting mechanism, flexible, can adapt to different height workers to operate;
5). NSK Bearings by internationally renowned, MITSUBOSHI (Samsung) belt, to ensure that the work performance of the machine;
6).Surface spray, beautiful appearance, rust corrosion;
7). This product has passed CE certification.

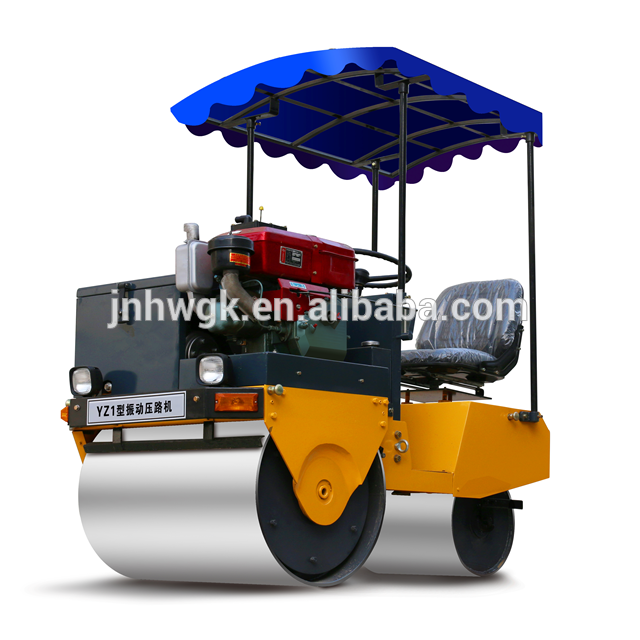

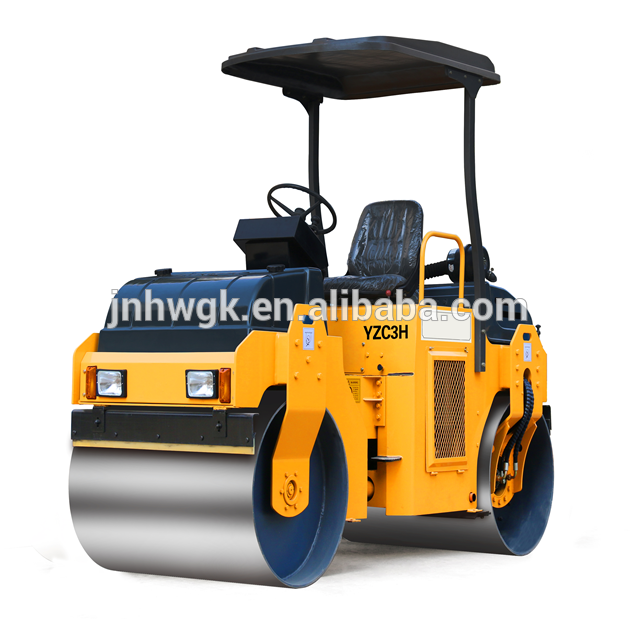

Detailed Images
