Home > Products > pneumatic Man Portable Drilling Rig portable Seismic Shothole Drilling Rig for sale

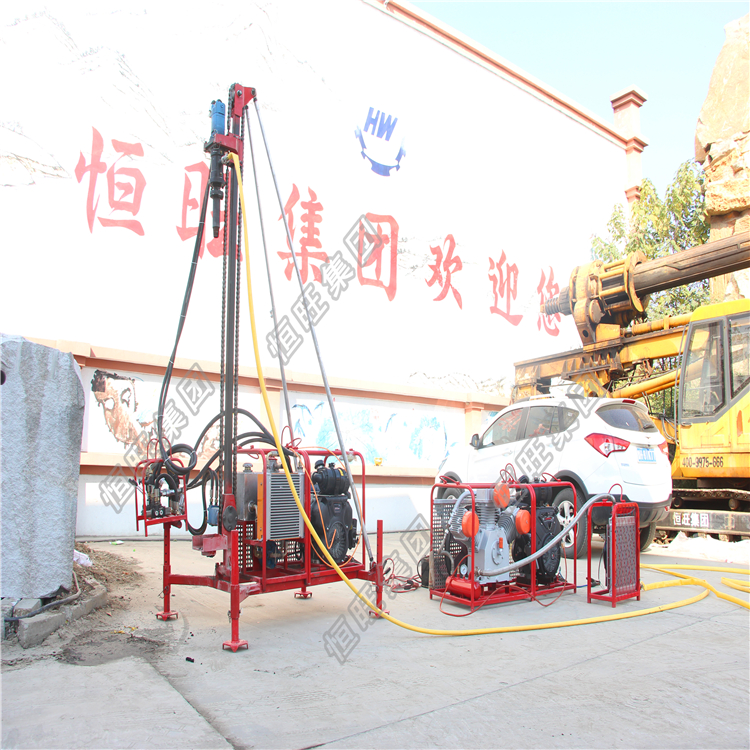

pneumatic Man Portable Drilling Rig portable Seismic Shothole Drilling Rig for sale

Click on the image to view the original image

Product：	views：5pneumatic Man Portable Drilling Rig portable Seismic Shothole Drilling Rig for sale
Branch：	hengwang
Type：	Rotary Drilling Rig
Size：	50X40X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:42

Product Details

Overview

Quick Details

Applicable Industries:: Building Material Shops, Farms, Retail, Construction works , Energy & Mining

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: hengwang

Usage:: geological exploration,

Voltage:: gasoline

Dimension(L*W*H):: 660*245*195mm

Weight:: 27KG

Certification:: ISO CE

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available

Name:: pneumatic Man Portable Drilling RigSeismic Shothole Drilling Rig

Product name:: pneumatic Man Portable Drilling RigSeismic Shothole Drilling Rig

Application:: Geological Exploration

Drilling depth:: 30m

Feature:: High Drilling Efficiency

Model:: HW-S30

Drilling diameter:: rock70-90mm,soil75-95mm

Engine:: Loncingasoline engine

Spindle Speed:: 3600r/min

Packaging & Delivery

Selling Units:: Single item

Single package size:: 50X40X60 cm

Single gross weight:: 60.0 kg

Package Type:: nonpackage

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

HW-S30 Hydraulic mountain drill rig is a series of products developed by the company with independent intellectual property rights.

Mountain drilling rig are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc.

MAIN FEATURES:

1.Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility, interchangeable.

2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.

3.Variable pump used in Hydraulic station, So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.

4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.

Parameter

Model			HW-S30
Drilling depth			30m
Drilling method			pneumatic hammer drilling
			Screw drilling and mud drilling(alternative)
(mm)Drilling diameter	pneumatic hammer drilling		rock70-90,soil75-95
			75-90
drill rod(Dia*Length)	(mm) pneumatic hammer drilling		Φ60×1500
Power head	(N.m)Torque		800-900
	(r/min)Drilling speed		0-135
Drilling pressurization and lifting	(N) Feed pressure		5500-6000
	(kN)Lifting power		12-16
	(m/s)Max lifting speed		0.71-0.81
(kw)/(r/min)Main engine power/speed			26/3600
hydraulic system		(L/min) Flow	0-60
		(Mpa)Working pressure	20
air compressor		Type/Quantity	Piston/1 unit	Screw
		(m3/min)Flow	3.5	3.8
		(Mpa)Pressure	0.8
		(kw)/(r/min) Engine power/speed	26/3600
