Home > Products > ND-4 Portable Railway equipment tamper Internal combustion tamping pick for sale

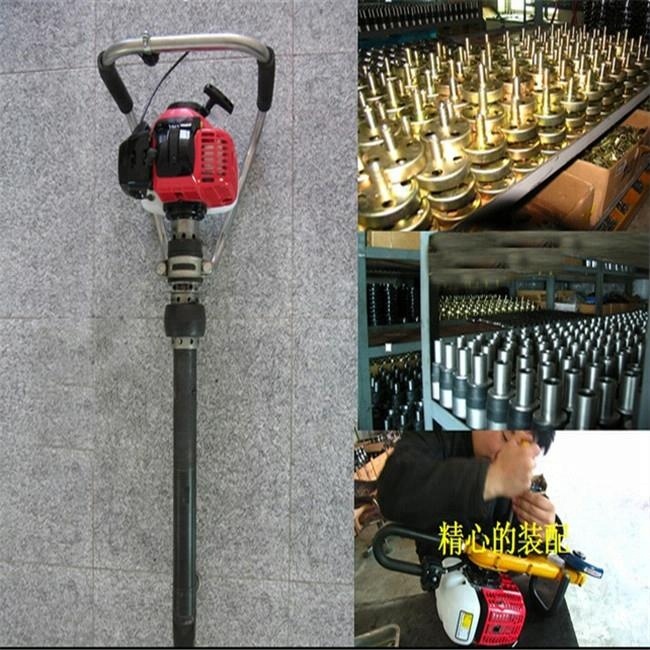

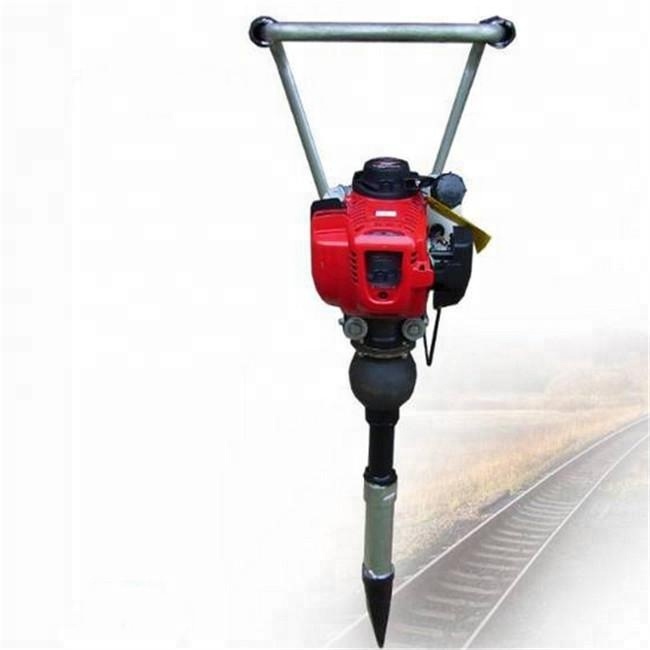

ND-4 Portable Railway equipment tamper Internal combustion tamping pick for sale

Click on the image to view the original image

Product：	views：6ND-4 Portable Railway equipment tamper Internal combustion tamping pick for sale
Branch：	Hengwang
Type：	Rail Tamping Pick
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:42

Product Details

Overview

Quick Details

Type:: Rail Tamping Pick

Material:: Steel

Dimensions (L x W x H) (mm):: Rail Tamping Pick

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Model Number:: ND-4

Impact Force:: 80N.m

Name:: rail electric ballast tamper

Engine Model:: Honda GX160 Gasoline Engine

frequency:: 120~140HZ

diameter of vibrating & tamping bar:: 52mm

rev. speed of eccentric block:: 7000-8000r/min

idling amplitude:: ≥ 5mm

total weight:: 16kg

Railway tamping picks condition:: new

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: Railway tamping picks packing within carton box or according to your requirements

Port: Qingdao, Tianjin, Xiamen, Ningbo

Lead Time:: Shipped in 2 days after payment

ND-4 Portable Railway equipment tamper Internal combustion tamping pick for sale

Product Description

Product Introduction

Railway Use Internal Combustion Tamping Machine

Internal combustion tamping picks a small road suitable for railway track maintenance machinery, mainly used for ballast track tamping homework. Its novel design, compact structure, is a kind of way rapidly up and down, stamping equipment, convenient operation is particularly suited to switch tamping homework.

This machine is mainly composed of gasoline engine, the vibration damping device, a transmission axis, a vibration body and hand, constitute a complete independence of handheld tamping machine, neither the long cables, no heavy soft shaft,compact and reasonable structure, easy to use.

Technology Parameters
