2016 new type high power Concrete Scarifier with HONDA GX390 13 hp
Concrete Scarifier for laying asphalt or workshop before re-paving of the old concrete, remove cement laitance and leveled galling, but also hard to clear the ash left over from construction.
Product Features:
NSK spindle bearings selection of internationally renowned for the outer ball bearings, to ensure the machine adaptable load, high speed working condition;
Imported high-quality carbide blade, sharp wear and long life;

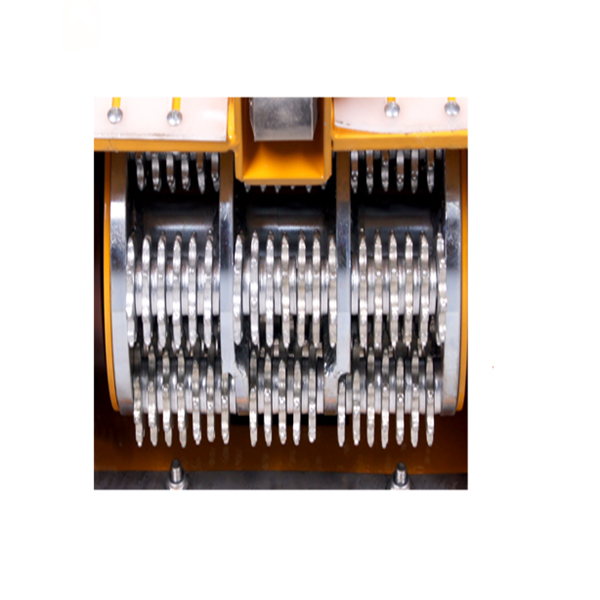

Knife drum using up sleeve connection, torque shock;
Unilateral bearing support, welt machine performance is good, more suitable for the workshop construction;
Adjustable depth, depth adjustment wheel to rotate.
Model HWXB-250D electric Concrete Scarifier
Model | HWXB-250D | ||
jobs |
|
|
|
Milling width | 250mm |
|
|
Milling depth | 5mm | Dimensions |
|
Number of knife shaft | 6pieces | Package Size | 1400x700x1100mm |
Segment Number | 84pieces | Overall Length | 1610mm |
Motor |
| Overall width | 530mm |
Types of | 380V | Total height | 940mm |
Types of | Three-phase asynchronous, 50Hz | Weight |
|
Power | 7.5KW | Operating weight | 230kg |
Fuel tank capacity | 3.6L |
|
|
Model HWXB-250D internal combustion engine Concrete Scarifier
Model | HWXB-250N | ||
jobs |
|
|
|
Milling width | 250mm |
|
|
Milling depth | 5mm | Dimensions |
|
Number of knife shaft | 6pieces | Package Size | 1450x7000x1150mm |
Segment Number | 84pieces | Overall Length | 1650mm |
internal combustion engine |
| Overall width | 550mm |
Types of | Gasoline engine, air-cooled 4-stroke,OHV | Total height | 980mm |
Types of | Three-phase asynchronous,380V,50Hz | Weight |
|
Power | 7.5KW | Operating weight | 255kg |
Fuel tank capacity | 3.6L |
|
|
