Product Application

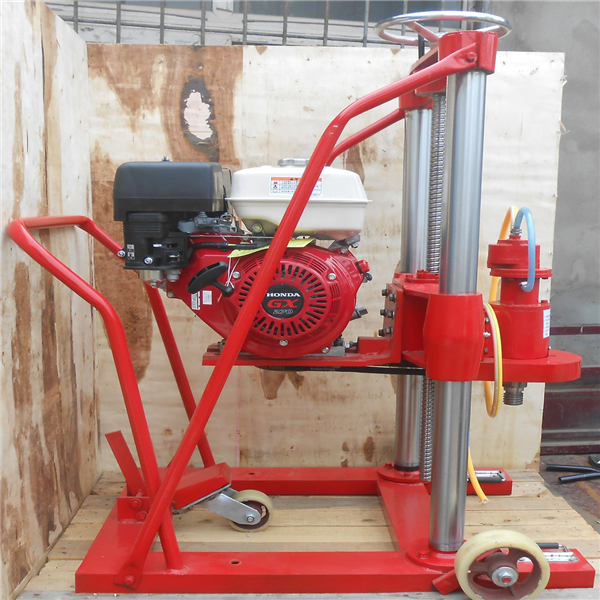

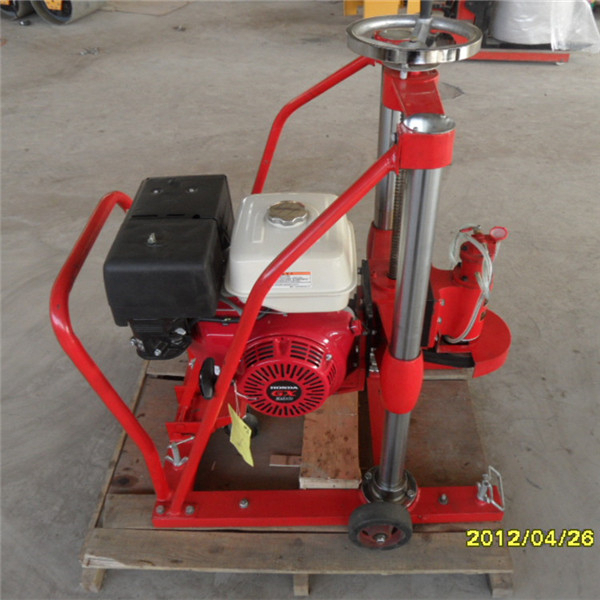

HZ-20 rig is the use of gasoline-powered engine, easy starting, reliable operation, easy to operate and is equipped with an artificial synthetic diamond drill bit, mainly for roads, airports, ports, docks, dams and other concrete works, Drilling the core of the new products. The core function of 400-5000mm, mainly in highway and to take concrete, limestone, foundation, etc., compressive, flexural test. Research core is also very good.

In addition, the rig may be other non-metallic brittle materials, such as refractory materials, ceramics, glass, rocks are also available for coring.

Technical Parameters:

1, Model: HZ-20 type

2, the maximum core drilling diameter: Φ200mm

3, the maximum coring depth: 400-5000mm (can be equipped with extension rod 30 cm / root)

4, drilling directions: vertically downward

5, feeding modes: manual, automatic

6, spindle speed: 800-1200

7, drill forms: synthetic diamond drill bit

8, matching power: Gasoline

Brand: Yamaha

Gasoline Model: MZ-175 MZ-250

Brand: Honda

Gasoline Model: Gx160 Gx270

Power: 3.3KW-6.5KW

Revolutions: 3600r / min

9, Dimensions L × W × H: 1080 × 780 × 1150mm

10, Weight: 120kg

Drill bits : ∮50 × 400 / 700mm ∮75 × 400 / 700mm ∮100 × 400 / 700mm ∮150 × 400 / 700mm ∮200 × 400 / 700mm

Main Features

Rig alloy steel material helical gear tooth surface induction hardening, can be durable, through a pair of belt wheel, artificial diamond drill rotary drive to work, lifting structure using advanced ball screw easy and convenient, Column using thick-walled seamless , after precision grinding hard chrome plating surface treatment, as the drill bit rotates counterclockwise and move up and down to achieve the purpose of the drilling or coring.
