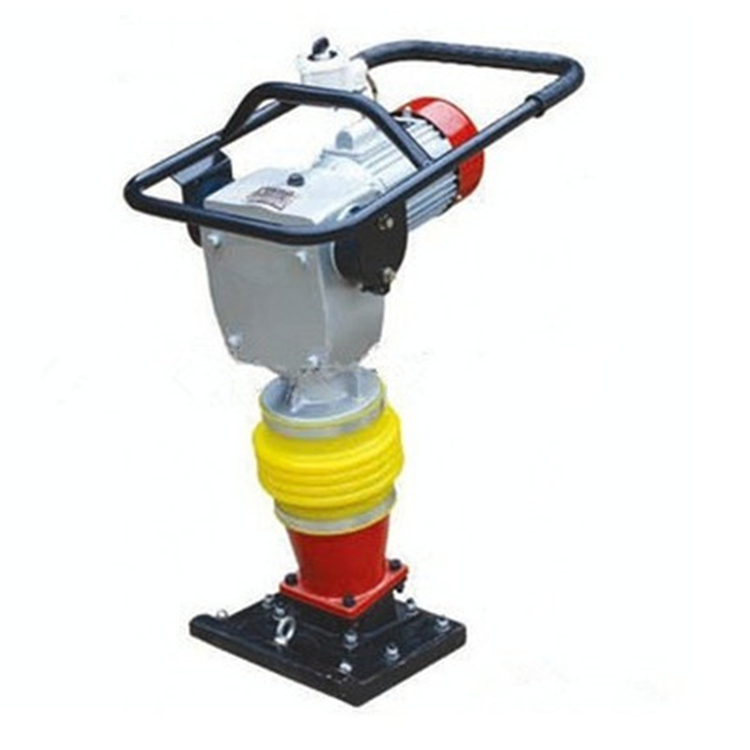

HCR90 impact rammer/gasoline tamping tammer with Honda engine
Application
1.Tamping rammer is used to compacting sand, gravel, concrete, sandy soil, asphalt macadam, concrete and clay. Now It is widely applied in the construction field like road, railway, station, bridge, reservoir dyke, the wall.
2. It is widely used in municipal conservation, road construction, building construction, flooring treatment(epoxy floor, wear-resistant floor) and other fields.
Specification
Reliable for stoke engine delivers low emission and noise
Additional built-in air filtration system plus the original air cleaners in the engine provides cleaner air to engine for longer life and improved durability.
Ingenious throttle lever for smooth operation
Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
Plastic oil tank offers longer life and rust-free
An integrated fuel valve provides for easy starting.
Rammer shoe made of steel plate with wooden insert offers economical usage
Parameter
| MODEL | Minimum height | Tamping energy | Speed | Tamping frequency | Power | Weight | Plate size |
HCR70 | 40-65mm | 56N.M | 10-13m/min | 420-650time/min | 2.2KW | 70KG | 330*280mm |
HCR80 | 40-65mm | 60N.M | 10-13m/min | 420-650time/min | 2.2KW | 80KG | 330*280mm |
HCR90 | 40-65mm | 80N.M | 10-13m/min | 420-650time/min | 3KW | 90KG | 330*280mm |
HCR100 | 40-65mm | 90N.M | 10-13m/min | 420-650time/min | 3KW | 100KG | 330*280mm |
HCR110 | 40-65mm | 100N.M | 10-13m/min | 420-650time/min | 3KW | 110KG | 330*280mm |
