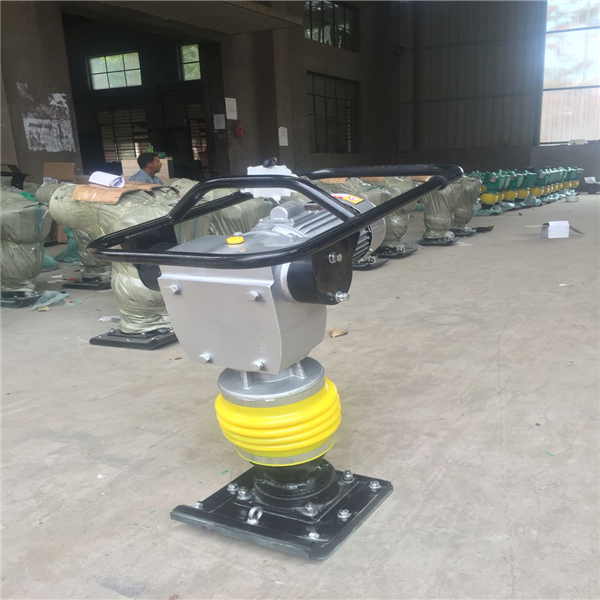

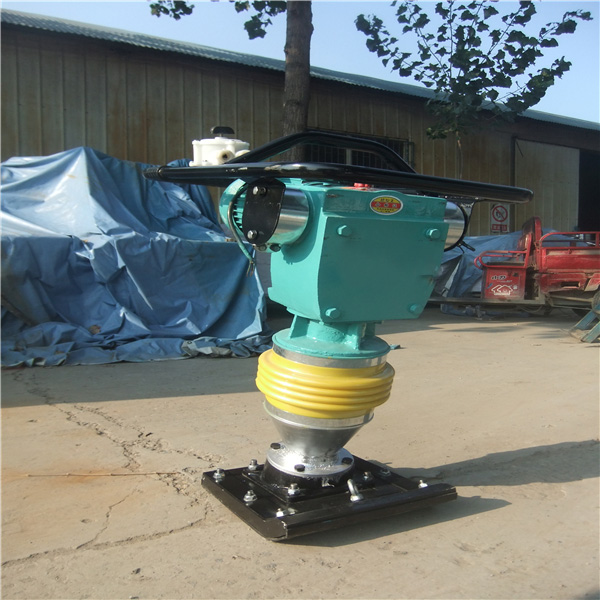

Gasoline honda power earth sand soil wacker jumping jack compactor tamper vibrating tamping rammer

Click on the image to view the original image

Product：	views：5Gasoline honda power earth sand soil wacker jumping jack compactor tamper vibrating tamping rammer
Branch：	HENG WANG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:42

Product Details

Overview

Quick Details

Power(W):: 5.5HP

Weight:: 80kg

Certification:: ISO9001

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: Hw80

Voltage:: 220V/380V

Dimension(L*W*H):: 760*430*1000mm

Engine:: Air-cooled

Product Name:: jumping jack compactor tamper vibrating tamping rammer

Color:: Clients Requirment

Plate size:: 340*285mm

Engine brand:: Hongda

Impact Force:: 14KN

Jumping Height:: 45-70mm

Keyword:: Tamper Machine

Engine Model:: Honda GX160 Gasoline Engine 5.5hp

Advance speed:: 10-13m/min

After-sales Service Provided:: Overseas service center available

Warranty:: 2 Years

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month Gasoline honda power earth sand soil wackerjumping jack compac

Packaging & Delivery

Packaging Details: wooden caseor as your requirement

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 3 days after receive your payment

Gasoline honda power earth sand soil wacker jumping jack compactor tamper vibrating tamping rammer

Product Description

Features:

1.All our Rammers are driven by 4-stroke petrol engines designed specially for rammers. No need to mix fuel and oil, easy starting, low-noise operation,low maintenance and reduced fuel consumption comparing to 2 stroke engine.
2.An heavy duty throttle control provides more reliable and longer service.
3.Additional built in air filtration system plus the original air cleaners in the engline provides cleaner air to engline for longer life and improved durability.
4.An integrated fuel valve provides for easy starting.
5.Heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
6.Plastic oil tank offers longer life and rust-free.

7. Rammer shoe made of steel plate with wooden insert offers economical usage.
8.Special protective frame for engine,prevents any possible damage on tough jobsite.
9.Special designed trolley kit fo easy transportation.
10.High quality,German made polyurethane bellow.Accepts more compacting force, offers a reliable lubricating system.

Model	Rammer LH60	Rammer LH70 (Mikasa style)
Engine	Honda GX160 5.5HP	ROBIN EH12 4HP or GX100 3HP
Bello	Polyurethane Dust-guard Bellow	Polyurethane Dust-guard Bellow
Take off high	40-65mm	85mm
Tamping Depth	55mm	65mm
Impact Frequency(/M)	420-650	680-710
Walk Speed	17-20mm/s	17-22mm/s
Plate Size	340mm*285mm	340mm*290mm
Optional Engine	Chinese Loncin	HONDA or Robin

Model	Rammer LH80	RammerLH100 (Wacker stye)
Engine	Honda GX160 5.5HP	Honda GX100 3HP
Bello	Polyurethane Dust-guard Bellow	Polyurethane Dust-guard Bellow
Take off high	40-65mm	65mm
Tamping Depth	55mm	55mm
Impact Frequency(/M)	420-650	600
Walk Speed	25mm/s	28mm/s
Plate Size	330mm*285mm	340mm*285mm
Optional Engine	Chinese Loncin	Null
