Home > Products > full hydraulic crawler-mounted rock core diesel engine drilling rig
full hydraulic crawler-mounted rock core diesel engine drilling rig
Click on the image to view the original image
Product： views：7full hydraulic crawler-mounted rock core diesel engine drilling rig
Branch： HWGK
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:42
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
China
Brand Name:
HWGK
Model Number:
ZK-13
Usage:
Road,Mine,etc
Voltage:
Gasoline Type
Power(W):
13hp
Dimension(L*W*H):
940*800*1170mm
Weight:
178kg
Certification:
ISO
Power:
13hp
Drive:
air-cooled, 4 stroke, single cylinder, vertical axis
Name:
Core Diesel Engine Drilling Rig
Main shift speed:
1400/min
Core Drilling Diameter:
20mm-350mm
Max Core Drilling Depth:
700mm (with additional rod can reach max 5000mm)
Motor Power:
13hp
Main Shaft Speed:
1400/min
Feeding Mode:
Manual
Machine Net Weight:
178kg
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Month Core Diesel Engine Drilling Rig
Packaging & Delivery
Packaging Details
Export Standard Packing
Port
Qingdao
Lead Time:
Shipped in 3 days after payment
Product Description

Whatsapp +8613508973211 full hydraulic crawler-mounted rock core diesel engine drilling rig

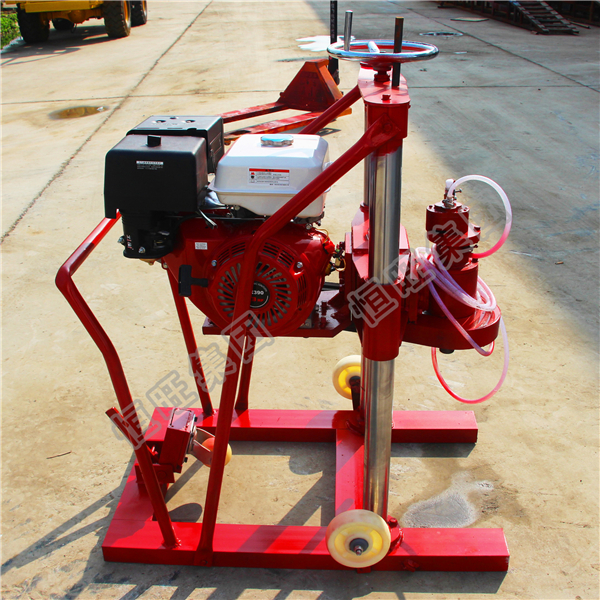

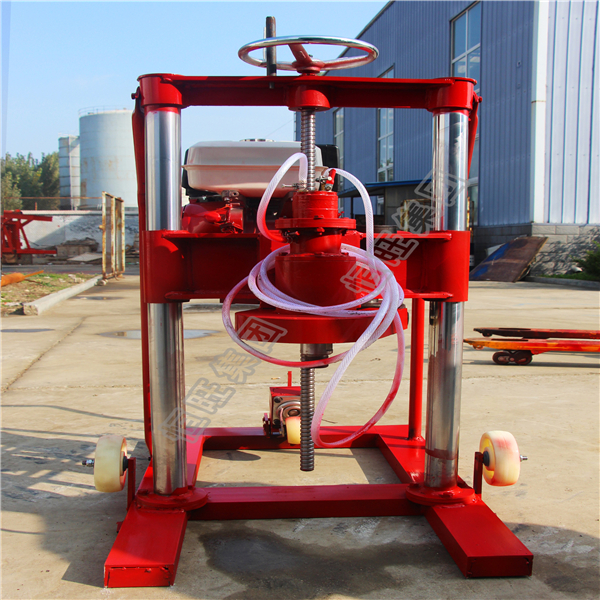

ZK-13 Model Pavement core drill machine is used to drill engineering sampling and hole of fixed  protective rail for the highway and municipal foundation.It uses gasoline engine as the power for easy start up, reliable running and simple operation, it is also equipped with synthetic diamond thin wall bit. The machine"s drill bit is compatible with imported ones, the machine can achieve automatic core drilling.The max drilling depth is 700mm(with additional rod can reach max 500mm) .For high-grade highway concrete, asphalt, limestone based on compressive strength, bending experiment research core is very ideal.

Whatsapp +8613508973211 full hydraulic crawler-mounted rock core diesel engine drilling rig

Features

Whatsapp +8613508973211 full hydraulic crawler-mounted rock core diesel engine drilling rig

1). Use imported gasoline engine, drive conveniently, run reliably, operate simply
2). No need electric power
3). equipped with man-made PCD thin drilling bit
4). Boring and sampling size accurately
5). The surface is smotth after boring, don"t damage the drill materials

Whatsapp +8613508973211 full hydraulic crawler-mounted rock core diesel engine drilling rig

Technical Parameter
Model
ZK-13
Core Drilling Diameter
20mm-350mm
Max Core Drilling Depth
700mm (with additional rod can reach max 5000mm)
Drive:
Honda GX390, air-cooled, 4 stroke, single cylinder, vertical axis
Motor Power
13hp
Main Shaft Speed
1400/min
Boring Direction
vertical down
Feeding Mode
Manual
Machine Net Weight
178kg
Detailed Image
