Home > Products > Used Vibratory Roller Dynapac Road Roller, Used Compactor

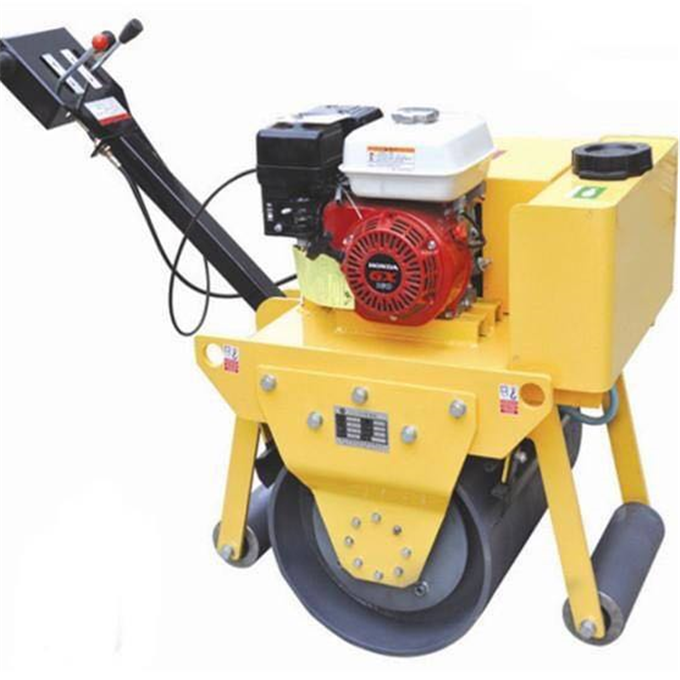

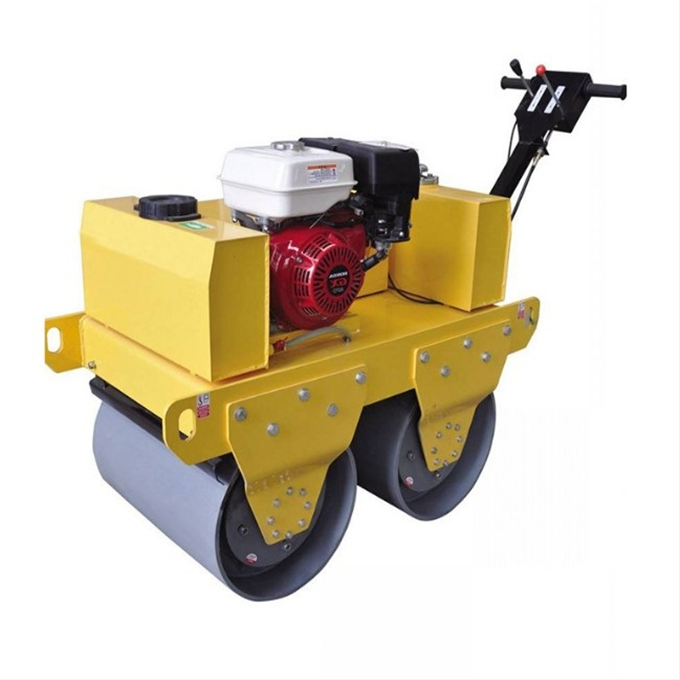

Used Vibratory Roller Dynapac Road Roller, Used Compactor
Click on the image to view the original image
Product： views：5Used Vibratory Roller Dynapac Road Roller, Used Compactor
Branch： HWGK
Type： Single/Double Drum
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:42
  Negotiated
Product Details
Overview
Quick Details
Power(W):
9.0HP
Travel Speed:
0-4 Km/h
Static Linear Pressure:
54N/cm
Condition:
New
Type:
Single/Double Drum
Grade Ability:
30%
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
HW-600C
Dimension(L*W*H):
1980X800X1020mm
Weight:
800kgs
Certification:
ISO9001
Exciting Force:
30KN
Vibration Frequency:
70HZ
Product name:
Roller Vibratory Sheeps Foot Compactor
Speed rpm:
3600
Water Tank:
20L
Fuel Tank:
21L
Amplitude:
0.5mm
Drive mode:
hydraulic drive
vibration control:
automatic clutch
engine mode:
HONDA GX270
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month Roller Vibratory Sheeps Foot Compactor
Packaging & Delivery
Packaging Details
Wooden case or according to customers' requirements
Port
Qingdao
Lead Time:
within 7-15 days or according to contract
Video Description



Product Description




Earthwork and asphalt applications. New construction and repairs of sidewalks, hard shoulders, cycle paths, yards and drive ways, children playgrounds, tennis and sports grounds as well as agricultural and forestry road construction.

1. road roller can adopt HONDA gasoline engine or famous diesel engine, superior performance, esay to start.
2. Operating radius is small, can work in a small area, suitable for groove backfill.
3. With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.
4. With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven, the gradeability stays the same when oil temperature is higher.
5. Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.




Technical parameters



ModelHW-650HW-600



HW-880

Walk Speed0-4km/h0-4km/h0-4km/h
Climbing Capacity30%30%30%
DriveHydraulic StationHydraulic StationHydrostatic Drive
Vibration ControlAutomatic ClutchAutomatic ClutchAutomatic Clutch
Static linear load54N/cm54N/cm30N/cm
Nominal amplitude 0.5mm0.5mm0.6mm
Vibration frequency 70HZ70HZ70HZ
Exciting force30KN30KN30KN
Water tank20L14L14L
hydraulic oil tank21L19L23L
Engine ModelHONDA GX270



HONDA GX270

HONDA  GX390
Power



9.0HP

6.0HP5.5HP
Steel Wheel Sizeφ430X600φ450X700φ350X635
Package Size1980X800X10202460X750X1800



1520X870X1920

Net Weight



650kg

600kg880kg
Starting ModeHandHand/ElectricHan
