Home > Products > Walk behind double drum hydraulic vibratory mini road roller

Walk behind double drum hydraulic vibratory mini road roller

Click on the image to view the original image

Product：	views：5Walk behind double drum hydraulic vibratory mini road roller
Branch：	HWGK
Type：	Single/Double Drum
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:42

Product Details

Overview

Quick Details

Power(W):: 9.0HP

Travel Speed:: 0-4 Km/h

Static Linear Pressure:: 54N/cm

Condition:: New

Type:: Single/Double Drum

Grade Ability:: 30%

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: HW-600C

Dimension(L*W*H):: 1980X800X1020mm

Weight:: 800kgs

Certification:: ISO9001

Exciting Force:: 30KN

Vibration Frequency:: 70HZ

Product name:: Manual Road Roller

Speed rpm:: 3600

Water Tank:: 20L

Fuel Tank:: 21L

Amplitude:: 0.5mm

Drive mode:: hydraulic drive

vibration control:: automatic clutch

engine mode:: HONDA GX270

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 500 Set/Sets per Month Manual Road Roller

Packaging & Delivery

Packaging Details: Wooden case or according to customers' requirements

Port: Qingdao

Lead Time:: within 7-15 days or according to contract

Walk behind double drum hydraulic vibratory mini road roller

Product Description

Walk behind double drum hydraulic vibratory mini road roller

Earthwork and asphalt applications. New construction and repairs of sidewalks, hard shoulders, cycle paths, yards and drive ways, children playgrounds, tennis and sports grounds as well as agricultural and forestry road construction.

1. road roller can adopt HONDA gasoline engine or famous diesel engine, superior performance, esay to start.

2. Operating radius is small, can work in a small area, suitable for groove backfill.

3. With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.

4. With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven, the gradeability stays the same when oil temperature is higher.

5. Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.

Technical parameters

Model	HW-650	HW-600	HW-880
Walk Speed	0-4km/h	0-4km/h	0-4km/h
Climbing Capacity	30%	30%	30%
Drive	Hydraulic Station	Hydraulic Station	Hydrostatic Drive
Vibration Control	Automatic Clutch	Automatic Clutch	Automatic Clutch
Static linear load	54N/cm	54N/cm	30N/cm
Nominal amplitude	0.5mm	0.5mm	0.6mm
Vibration frequency	70HZ	70HZ	70HZ
Exciting force	30KN	30KN	30KN
Water tank	20L	14L	14L
hydraulic oil tank	21L	19L	23L
Engine Model	HONDA GX270	HONDA GX270	HONDA GX390
Power	9.0HP	6.0HP	5.5HP
Steel Wheel Size	φ430X600	φ450X700	φ350X635
Package Size	1980X800X1020	2460X750X1800	1520X870X1920
Net Weight	650kg	600kg	880kg
Starting Mode	Hand	Hand/Electric	Han

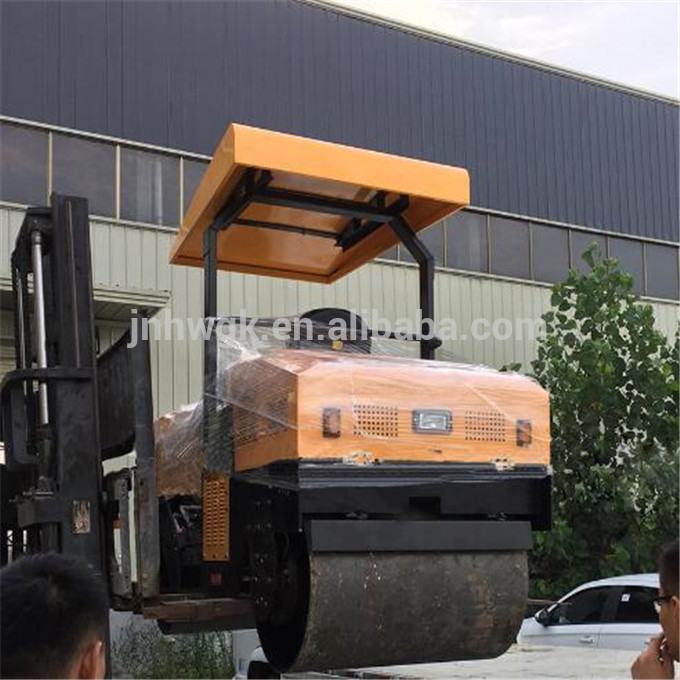

Packaging & Shipping

Walk behind double drum hydraulic vibratory mini road roller

FigurePhotos

Walk behind double drum hydraulic vibratory mini road roller
