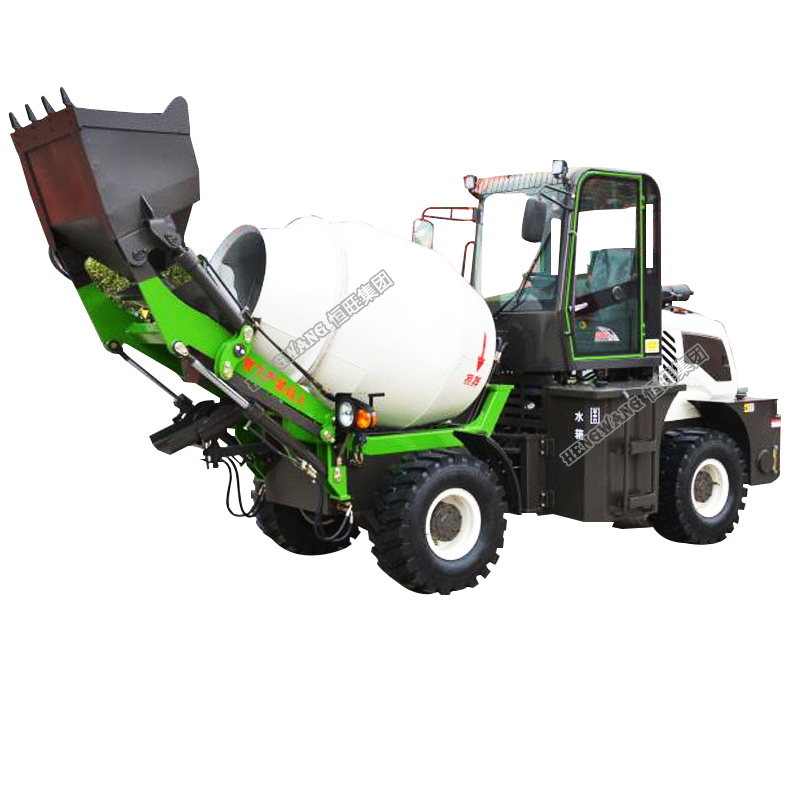

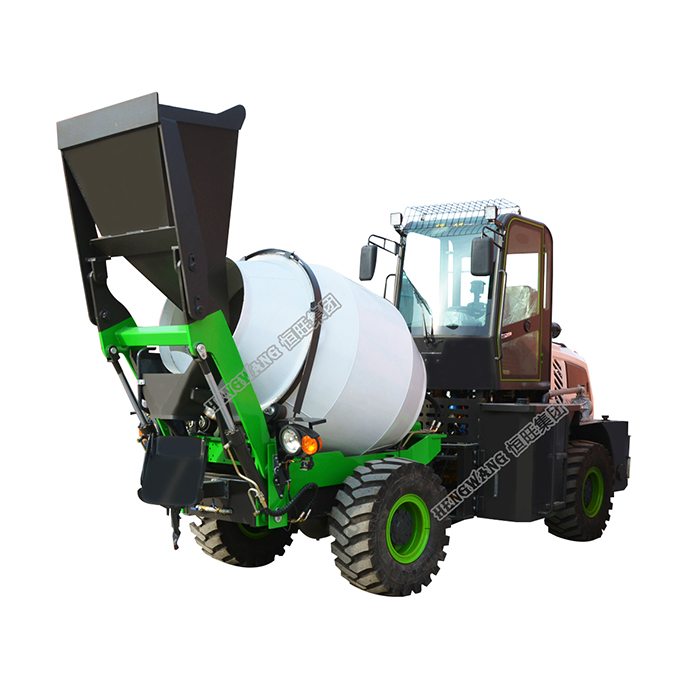

Click on the image to view the original image
- Power(W):
- 58KW
- Weight:
- 5600kgs, 4580kgs
- Warranty:
- 12 Months
- After-sales Service Provided:
- Video technical support
- Applicable Industries:
- Construction works
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HEGNWANG
- Dimension(L*W*H):
- 6350*2510*2850
- Certification:
- ISO CE CCC
- Name:
- concrete mixer truck mini
- Capacity:
- 1.4m3
- Actual mixing capacity:
- 1.2m3
- Driving type:
- 4X4
- Climbing capacity:
- 26%
- Engine:
- Yunei/CF
- Color:
- White/green
- Max. loading capacity:
- 2800kgs
- Bucket capacity:
- 0.3CBM
- Supply Ability:
- 200 Unit/Units per Week
- Packaging Details
- in nude with full container
concrete mixer truck mini 1.2 m3 2 cubic meters
- Port
- Qingdao,
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 2 3 - 5 >5 Est. Time(days) 14 21 To be negotiated
concrete mixer truck mini 1.2 m3 2 cubic meters
Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Our Advantage:
.1. Italy leading design, automatic feeding mixing system
.2. Equipped with 360 ° camera with a wider field of vision
.3. Simple, flexible and convenient operation
.4. Can equip Imported PERMCO Double pump, FX-300 reducer, strong and stable rotation motor.
.5. Automatic weighing, guarantee the quality of mixing, standard of loading ratio.
.6. Mixer truck special bridge, front wheel steering swing, flexible operation
The popular capacity: 1.2m3 1.8m3 2.4m3 2.6m3 3.2m3 4m3 etc.
Mixing capacity: 1200L 1.2m³
Engine power: 58KW
Overall Dimension: 6350mm*2510mm*2850mm
Turning radius: 5000mm
Ground clearance: 30mm
Working period: 300s
Machine weight: 4580kgs
Model: HW18
Mixing capacity: 1800L 1.8m³
Engine power: 76KW
Overall Dimension: 6700mm*2300mm*2900mm
Turning radius: 4250mm
Ground clearance: 50mm
Drum rotation angle: 180°
Working period: 350s
Machine weight: 4880kgs
Model: HW32
Mixing capacity: 3200L 3.2m³
Engine power: 85KWOverall Dimension: 6700mm*2600mm*3200mm
Turning radius: 4500mm
Ground clearance: 50mm
Drum rotation angle: 180°
Working period: 600s
Machine weight: 7500kgs
Model: HW40
Mixing capacity: 4000L 4.0m³
Engine power: 92KW
Overall Dimension: 6650mm*3100mm*3450mm
Turning radius: 4150mm
Ground clearance: 50mm
Drum rotation angle: 180°
Working period: 600s
Machine weight: 9300kgs
Model: HW26
Mixing capacity: 2600L 2.6m³
Engine power: 78KW
Overall Dimension: 6400mm*2550mm*2900mm
Turning radius: 4500mm
Ground clearance: 50mm
Drum rotation angle: 180°
Working period: 600s
Machine weight: 5800kgs
Main Feature for 1.2 m3 small self loading concrete mixer truck .
1. 490 turbocharging engine 58KW, automatic variable
2.Wheel side Reducer Bridge
3. Full hydraulic gearbox, 20.5/70-16 radial tire
4. Automatic metering of water. Equipped with driving image
concrete mixer truck mini 1.2 m3 2 cubic meters
Mixing drum for self loading concrete mixer truck
Thickened manganese steel, very durable
Radiator system.
The radiator adopts the international advanced plate type independent heat dissipation system to ensure the oil quality and temperature control.
Camera & Driving images
360° Camera, broad vision, very safe and convenient
Bucket and cylinder.
The forward-tilt unloading function makes the discharge more thorough and faster.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Professional manufacturer for more than 15 years.
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.
Specializing in the Construction machines, Drilling equipment; Railway equipment; Road machinery; Pumps; Hydraulic tools etc.
Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers.
