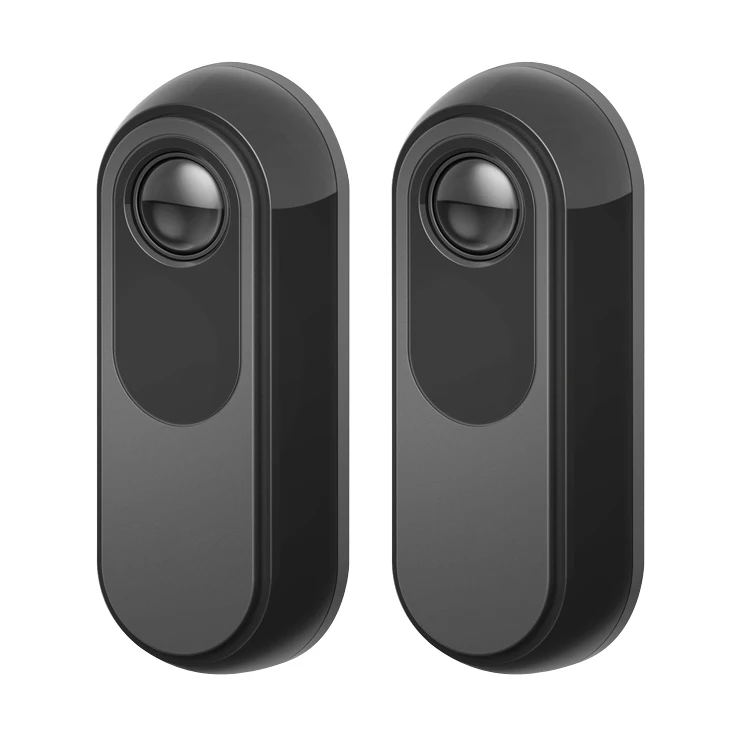

24v Single Beam Infrared Sensor Active IR Motion Detector
SPECIFICATIONS:
Receiver:
Power Source: 12 - 24V AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 136 x 54 x 32mm
Transmitter
Power source: 3V (2 x AA Alkaline Batteries)
Battery Life: approx 3 year
Active ir motion detector is a transmitter-receiver pair that provides an invisible infra-red beam for automation applications such as sliding and swing gates, as well as garage doors and security applications such as perimeter beams either outdoors or indoors.
The transmitter makes use of 2 x AA batteries with a life span of approx 3 years.
| Specification for active ir motion detector | |
| Model | HS-A001 |
| Receiver Power Source | AC/DC 12V 24V |
| Transmitter Power Source | 3V (2 x AA Alkaline Batteries) |
| Detecting distance | 15m |
| Modulation Frequency | Pulsed |
| Wave length | 940nm |
| Battery Life | Approx 3 year |
| Usage | Gate Open/Garage Door/Automatic Door/Barrier Gate/Access Control System |
| Installation | Outdoor/Indoor |
| Certificate | CE certificated |
| Working temperature | -25℃~+55℃ |
| Alarm Output | Relay output NC NO; 1A/36V Max |
| Waterproof grade | IP55 |
| Dimension | 136*54*32mm |
| Packing Details for active ir motion detector | |
| PACKING | Neutral color box or customer's packing |
| PCS/CARTON | 100PCS |
| GW/CARTON | 18.0KG |
| CARTON SIZE |
49.5*48*36 cm |
