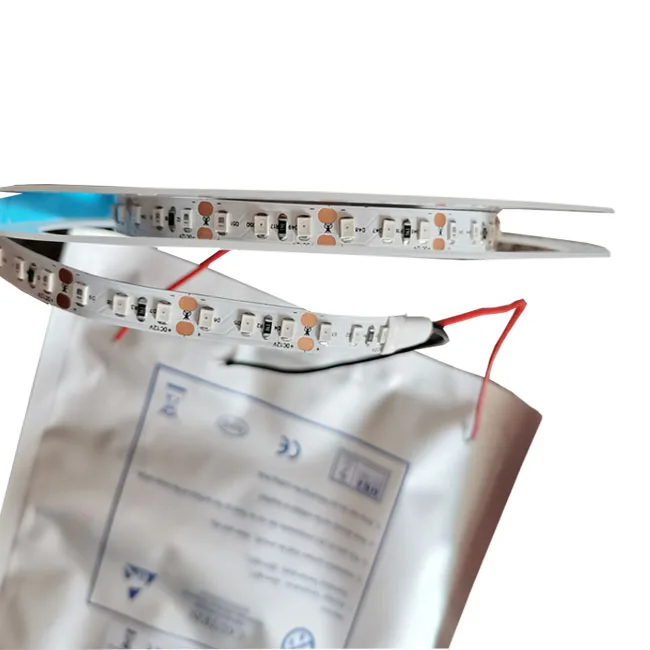

Hot sale smd2835 8mm 10mm customized bendable 12v 24v led light strip flexible for plant
Characteristic:
1.Brand chip applied as bridget/epiled/cree/espister,ensuring the high quality to supply.
2.42u chip,99.99% pure gold wires,Pure copper PCB and D1.2mm to gold wires,which to better dissipation heat.
3.Stable current and voltage,producing the evenly light,to better protect our eyes.
4.120leds/m to high brightness and high intensity.
5.5m/roll,per 3leds to cuttable.
6.490nm strip we have 300m to stock,others waves as 810nm,850nm,940nm...can be customized.
Typical Optical/ Electrical Characteristics @Ta=25℃
Symbol
|
Item |
Min.
|
Typ.
|
Max.
|
Units
|
Test Conditions
|
IV | Luminous Intensity | — | — | — | mcd | IF=20mA |
Φe | Radiation Power |
| 10 |
| mw |
IF=20mA |
VF | Forward Voltage [1] | 1.9 | 2.0 | 2.1 | v |
IF=20mA |
λd | Wave length | — | — | — | nm | IF=20mA |
λp | PeakWavelength |
| 670 |
| nm | IF=20mA |
20-1/2 | 50% power angle | — | 120 |
| deg |
IF=20mA |
IR | Reverse Current | — | — | 20 | uA | VR = 5V |
Note:
1.Tolerance of measurement of forward voltage±0.1V,peak Wavelength±2.0nm,Radiation Power ±5%.
Absolute Maximum Ratings TA=25°C
Item |
Symbol
|
Absolute M=aximum Rating
|
Units
|
Power dissipation[1] |
Pd |
0.06 |
W |
DC Forward Current[1] |
IF |
20 |
mA |
Peak Forward Current |
IFp | 30 | mA |
Reverse Voltage[1] |
VR |
5 |
V |
Operating Temperature |
Topr | -20 ~ +85 ℃ | |
Storage Temperature |
Tstg | -40 ~ +100 ℃ | |
Junction Temperature | Tj |
100°C | |
Note:
1.1/10 Duty Cycle,0.1ms Pulse Width.1 / 10,0.1ms.
2.The temperature of Aluminum PCB do not exceed 55℃.
Rotehoo company founded in 2007,developing 200 workers from one of people,4 production lines,20 technicial,
10 QC,50 office staff,100 production workers,presently,the products radiant to 254nm to 1750nm led light source,includings smd/TO/high power 1-500w series,the finished lamp as special wave custom model as uv strip/blue strip/ir strip,the clients covered to more than 80 countries,obtained high praise among customers,and established more than 10years friendly collaboration relationship.
Sincere to expect we can win-win each other join hands,to be forever friends even family.
It can be widely applied to growth of plant,promoting the plant to growth,meanwhile,refer to the medical field,to treatment some disease.
