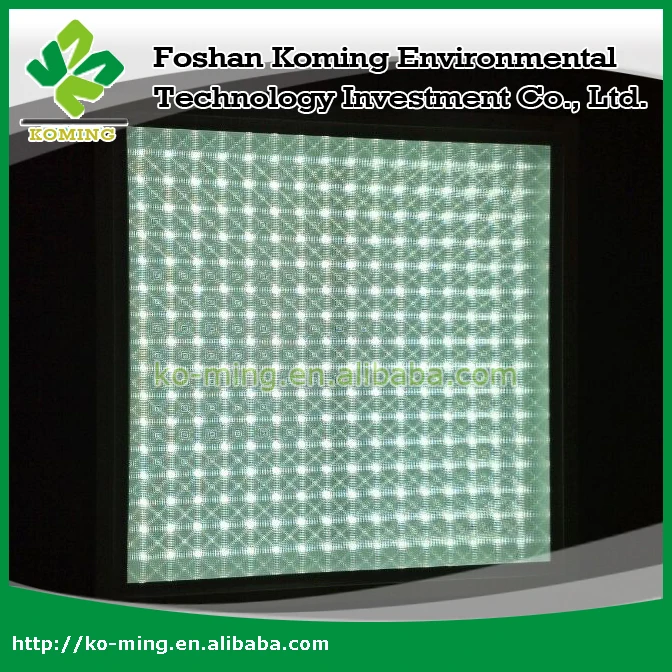

600*600 LED Back-lit Panel Light with high luminous efficiency and cost performance
KM-MBD-30W-01
Applications
Recommened application: workshops, warehouses, public places, exhibition halls, buildings, gas stations, factories, shops, supermarkets, etc.
Technical parameter:( Ta=25°C)
Number | Item | Parameter |
1 | Input Voltage | 100-240V~ |
2 | Frequency range | 50/60 Hz |
3 | Power Consumption | 30W±10% |
4 | Power Factor | ≥0.95 |
5 | Rated Color Temperature | 5000K |
6 | Luminous Flux | >3300lm |
7 | LED efficiency | >160lm/W |
8 | Lamp efficiency | >80lm/w |
9 | Color rendering index | >80 |
10 | candle power distribution curve | symmetrical circular light distribution |
11 | optical design | reflector secondary optical design |
12 | Beam angle | 100° |
13 | Life time | ≥50,000 Hours |
14 | Operating Temperature | -10°C~+40°C |
15 | Storage Temperature | -40°C~+85°C |
16 | Dimension | 595(L)×595(W)×40(H)mm |
17 | IP Class | IP40 |
18 | Net weight | 1.5kg |
19 | Installation | n-built/Mounting/Suspending |
Notes:All parameters conform to specific product type test.
Certification:
Meet UL / TUV / CQC / CE safety requirements.
