HB80-RF Solar LED Based Marine Navigation Light
Description:
HB80-RF Solar function make it a self-contained and almost care-free light unit. The light system is composed of 3 parts, light, battery box and solar panel. When the light and solar panel connected to the Stainless-steel battery box, the whole system can be mounted on a tower, chimney, tall buildings and other applications. It is equipped with rechargeable lithium battery which could power the light up to 700hrs when the weather is cloudy & rainy with 10 years’ service life. It can provide the 256 flashing patterns that comply with IALA, Morse code, SOS code and self-defined codes. These patterns are selected by a touch switch and 8 indicators. If needed, the GPS can be equipped.
Features:
• Unique optical design complies with IALA standard
• Regulation automatically turns on at dusk and off at dawn
• 4pcs flexible mono-panels for more sunshine absorbing and easy transportation.
• Polycarbonate lens is virtually indestructible and anti-UV.
• Will charge under nearly all weather conditions and up to 700 hours of operating capacity from a full charge.
• Easy installation by 4pcs bolts
• With GPS function(optional)
Specifications:
SPECIFICATIONS | |
LIGHT OUTPUT | HB80-RF |
Effective Intensity | 300cd |
Visibility | 7~10NM (adjustable) |
Minimum Autonomy | 700hours |
Vertical Divergence | ±7.5° at 50% intensity |
Horizontal | 360 Degree |
LED source | High brightness Cree led |
LED color | Red, green, blue, amber, or white |
Latitude Range | 55°S to 55°N |
LED lifespan | 100,000 Hours |
Flash Pattern | Flashing |
Solar Panel | 18V7W*4pcs mono-crystalline with 16.5%efficiency |
Storage battery | 12V20AH, replaceable Lithium battery |
MACHANICAL STRUCTURE | |
Lens | Polycarbonate, anti-UV and shock resistance |
Base Material | Stainless steel |
Water-proof | IP68 |
Weight | 6.5KG |
Temperature Range | -40 degree ~ +70 degree |
Warranty | 3 years |
Optional | 256IALA/GPS monitoring |
Details:

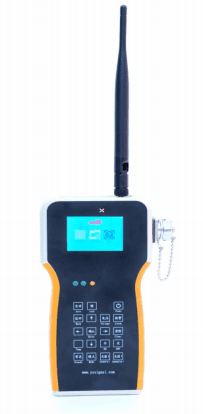

Remote control
Applications:
• High rise building marking
• Telecom tower marking
• Road obstruction marking
• Navigation aid
• Port, dock entrance&walkway
• Buoy marking
• Off shore gas&oil platform
