Click on the image to view the original image
- Cooling Type:
- Counter Flow
- Power(W):
- Max. 21.5kW
- Dimension(L*W*H):
- 1
- Weight:
- 0.52kg
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support
- Condition:
- New
- Material:
- pvc
- Place of Origin:
- Hebei, China
- Brand Name:
- Lanyu
- Voltage:
- 380V~480V
- Certification:
- SGS
- Name:
- PVC cooling tower film pack, BAC cooling tower fill
- Application:
- cooling tower
- Color:
- Black
- Water flow:
- 5~250t/h
- Size:
- width: 1340mm, length: any
- Thickness:
- 0.25-0.4mm
- Sample:
- free
- Segment pitch:
- 20mm
- Width:
- 1300mm/1330mm
- Length:
- customized
- Supply Ability:
- 30000 Sheet/Sheets per Month big capacity of BAC cooling tower fill
- Packaging Details
- BAC cooling tower fill will be packed in fumigated wooden pallet or case
- Port
- Tianjin, Shanghai, Ningbo

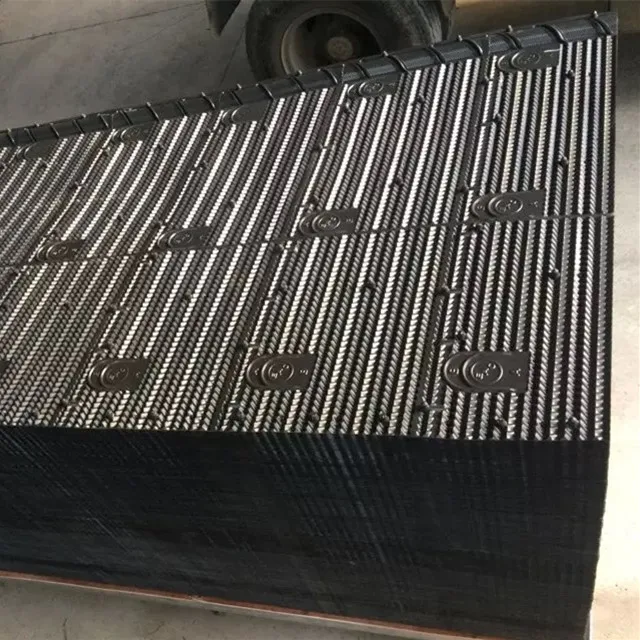

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sheets) 1 - 1000 1001 - 5000 >5000 Est. Time(days) 10 15 To be negotiated
Recycle materials cooling tower infills, PVC cooling tower film pack, BAC cooling tower fill
This cooling tower fill is another our major cooling tower fills. It is used a very famous brand cooling tower, which is cross flow cooling tower fill handing in the two sides too.
The Width is 1330mm for horseshoe shaped holes and 1300mm for round holes. It is changeless. Because of the changeless mould decide it. But the length can be customized by customers, such as 2840mm, 3050mm, 3098mm or 3100mm.
The thickness is 0.38mm at least. Some of customer request the thickness arrive to be 0.45mm or 0.5mm. Why customer should choose the large thickness? That is because the large area of the surface meeet hot water and hanging for long time, it need the strong support power if it is thick enough, or it will be broken like a thin paper.
There are two designs of this cooling tower fill: One is horseshoe shape holes with one side eliminator,The other is round shape holes with one side eliminator which there is 10degree inclination.
| Material | Length | Width | Thickness | Customized sizes |
| PVC | Customized | 1300mm | 0.38mm | Yes |
| 2730mm | 1330mm | 0.38mm |
| | |
