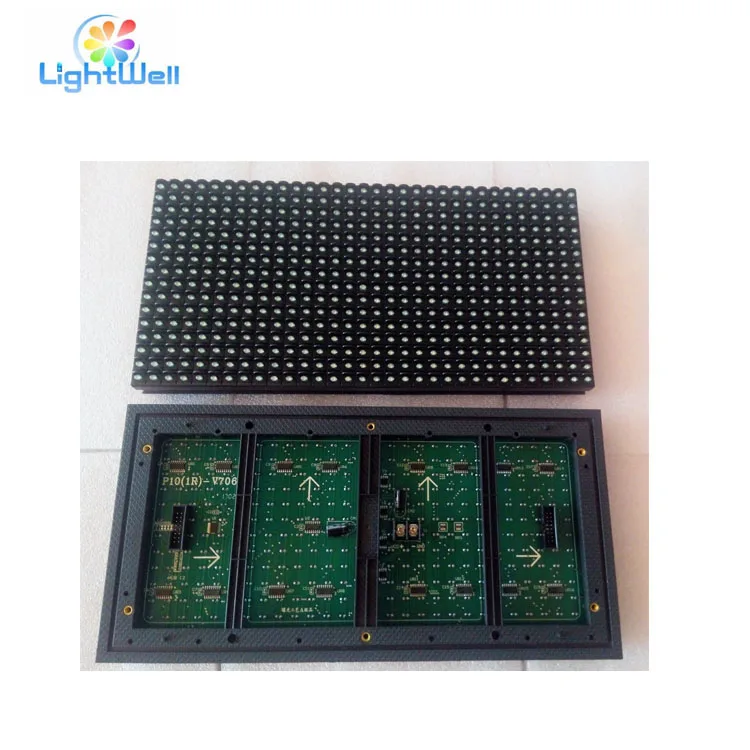

Lightwell led display module
Mostly on the applications of messages, images, Excel ect. Which is offline control by one control center by input COM, USB, RJ45, GPRS, GSM, WIFI, 3G ect.
SPECS:
&.High brightness: super high bright LEDs which be viewed at a long distance.
&.Better performance: by adopting Nonlinear correction technique to guarantee a clear images, good message conveying by Sense of hierarchy
&.High Reliability: by Distributed scan technology and Modular design to assure the stability and reliability.
&.Multi mode performance:multi media format supportive.
&. User friendly:UI friendly.
APPLICATIONS:
Multi applied on On bus stops, terminals, ferry harbours, car mounted signs, chain stores, square message boards, factories, banks, real estates, stock exchanges, post office, hotels, traffic control, ect
P10 Outdoor & Semi-outdoor LED sign Specification Technical Specification | |
Pixel Pitch | 10mm |
Density of Pixel | 10000dots/M2 |
Pixel configuration | Red/Amber/Green/Blue/White/Dual color/Tri-color/ full color |
Size of Single Board | 320mm*160mm |
Best Viewing Distance | ≥10M |
Horizontal Viewing Angle | 120° |
Maximum Power Consumption | ≤750W/M2 |
Brightness | ≥ 3000cd/M2 |
Gray Scale | 14 bits per color |
Color Temperature | 6500k |
Control Method | Asychronization/ sychronization |
Driving method | 1/4 scanning |
Frame Frequency | 60Hz |
Refresh frequency | ≥480Hz |
Working Voltage | AC220V/110±10% |
IP grade | IP65 |
Working temperature | 10 degree centigrade +70 degree centigrade |
Brightness adjustment | 256 grade manual, 8 grade automatic |
Software | LED play software |
MTBF | More than 10000 hours |
Life Span | 100,000 hours |
Optional
NO | Pitch | Pitch Pixel | dot/sqm | model | View distance |
1 | F3 | 4 | 62500 | Indoor monochrome/ dual /full | 2-50 |
2 | F3.75 | 4.75 | 44321 | Indoor monochrome/ dual /full | 3-50 |
3 | F5 | 7.62 | 17222 | Indoor monochrome/ dual /full | 5-50 |
4 | P6 | 6 | 27777 | Semi Indoor monochrome/ dual /full | 6-50 |
5 | P7.62 | 7.62 | 17222 | Semi Indoor monochrome/ dual /full /full ko | 8-50 |
6 | P10 | 10 | 10000 | Both indoor and outdoor/ monochrome and dual /full | 10-60 |
7 | P12 | 12 | 6944 | Both indoor and outdoor/ monochrome and dual /full | 12-70 |
8 | P14 | 14 | 5102 | Both indoor and outdoor/ monochrome and dual /full | 14-80 |
9 | P16 | 16 | 3906 | Both indoor and outdoor/ monochrome and dual /full | 16-120 |
10 | P18 | 18 | 3086 | Both indoor and outdoor/ monochrome and dual /full | 18-140 |
11 | P20 | 20 | 2500 | Both indoor and outdoor/ monochrome and dual /full | 20-160 |
12 | P25 | 25 | 1600 | Both indoor and outdoor/ monochrome and dual /full | 25-200 |
13 | P31.25 | 31.25 | 1024 | Both indoor and outdoor/ monochrome and dual /full | 30-300 |
