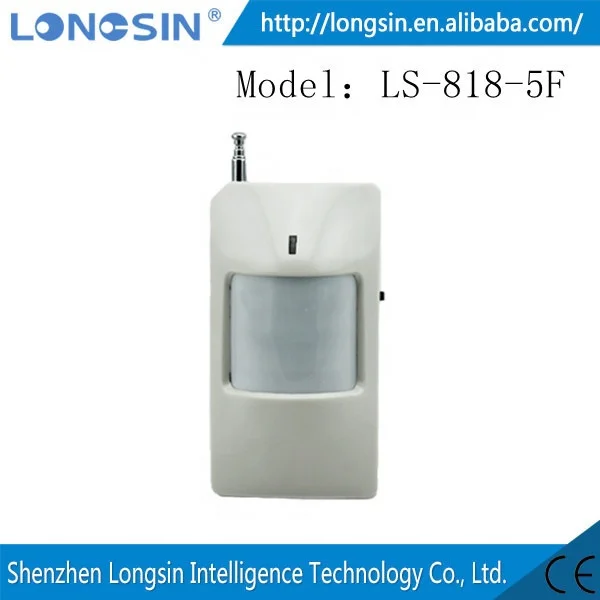

Name: Wireless Wide-angle Infrared Detector (DC9V)
Model: LS-818-5F
Feature:
1. Wireless signal transmitting
2. Low power alarm
3. Automatic temperature compensation
4. ASIC adopted
5. Low consumption to ensure long battery life
6. SMT adopted, anti-RFI& anti-EMI
Technical parameter:
1. Operating voltage: DC9V battery
2. Static current: ≤50uA
3. Alarm current: ≤15mA
4. Operating temperature: -10°C ~+50°C
5. Battery life: about 6-12months
6. Installation means: wall-mounted
7. Installation height: 2m (wall-mounted)
8. Detecting distance: 12m
9. Detecting angle: 110 degree
10. Dimension: 107*59*45mm
11. Transmitting distance without block: 200m
12. Emission frequency: 315/433MHz
