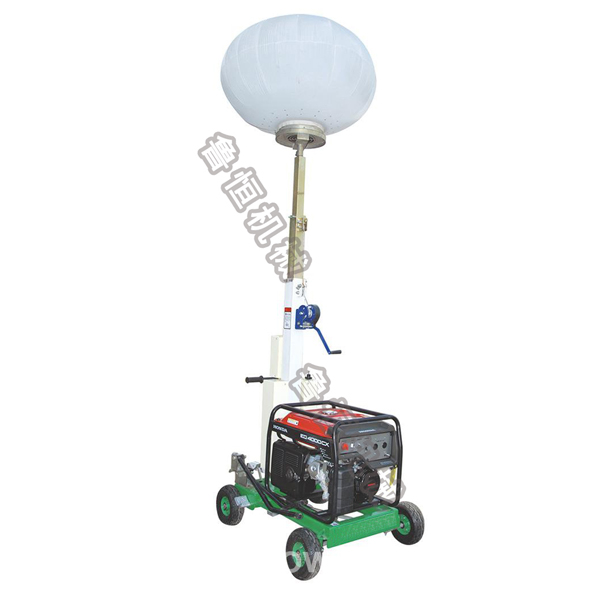

portable led balloon light tower moveable mobile inflatable light tower

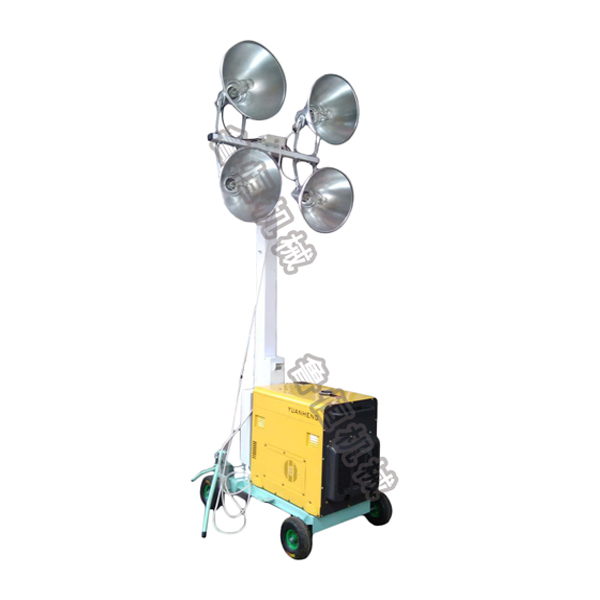

Diesel High Mast Telescopic Portable Light Tower
1)Famous motor and generator, excellent performance, start easily;
2) metal halide lamp has long service life;
3) Anti-fall, safe and solid;
4) Hand-operated winch, lockable at any moment;
5 )Elevating frame is made of Stsainless steel square pipe;
6) Elevating frame can rotate, east for light waving, overturn to intake,transport and store;
7) Plastic treated, anti-rust, anti-corrosion and beautiful.
| Model | LH-400A | LH-400B | LH-1000A | FZM-1000B | |
| Generator | EC2500CX/ 3GF-LED | EC4000CX/ 3GF-LED | EC4000CX/ 3GF-LED | EC6500CX/ 5GF-LED | |
| Type | Air cooled, 4stroke, OHV gasoline engine | Air cooled, 4stroke, single cylinder direct injection type diesel engine | |||
| Generator Types | Single-phase alternator | ||||
| Rated Power | 2.0kw | 3.0kw | 3.0kw | 5.0kw | |
| Rated Voltage | 220V | 220V | 220V | 220V | |
| Continuous working time (hour) | 13hr | 13hr | 13hr | 9hr | |
| Oil Tank | 15L/12.5L | 25L/12.5L | 25L/12.5L | 25L/16L | |
| Power*lamp | 400W*2 | 400W*4 | 1000W*2 | 1000W*4 | |
| Stanchion Lamp frame | 3 sections | 4 sections | 4 sections | 4 sections | |
| Elevating height | 1800-3800mm | 1800-4600mm | 1800-4600mm | 2000-5600mm | |
| Anti-slope | <10° | ||||
| Anti-wind | <6 | ||||
| Walk type | Hand push type | ||||
| Total luminouness | 72000Lm | 144000Lm | 220000Lm | 440000Lm | |
| Lamp | Metal halide lamp | ||||
| Elevating mode | By hand-operated | ||||
| Package size | Main machine | 1300*900*950mm | |||
| Stanchion | 1750*500*500mm | ||||
| Lamp | 440*440*480mm*2 | 440*440*480mm*4 | 600*600*600mm*2 | 600*600*600mm*2 | |
| Net weight(kg) | 95/165kg | 120/175kg | 110/210kg | 140/230kg | |
