Overview
Quick Details
- Name:

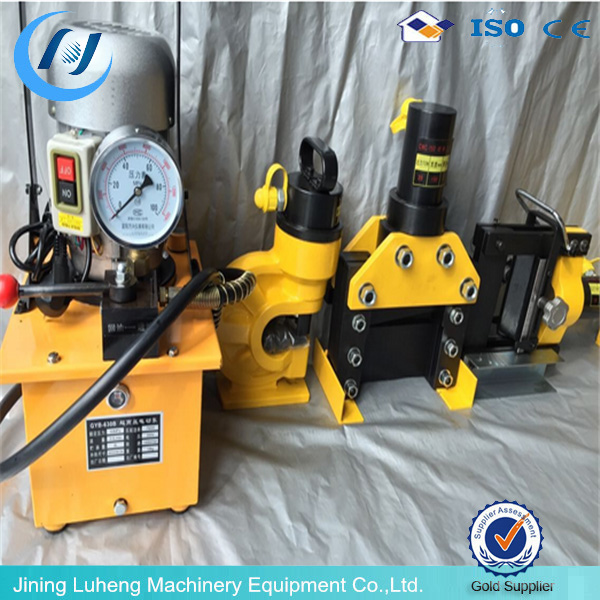

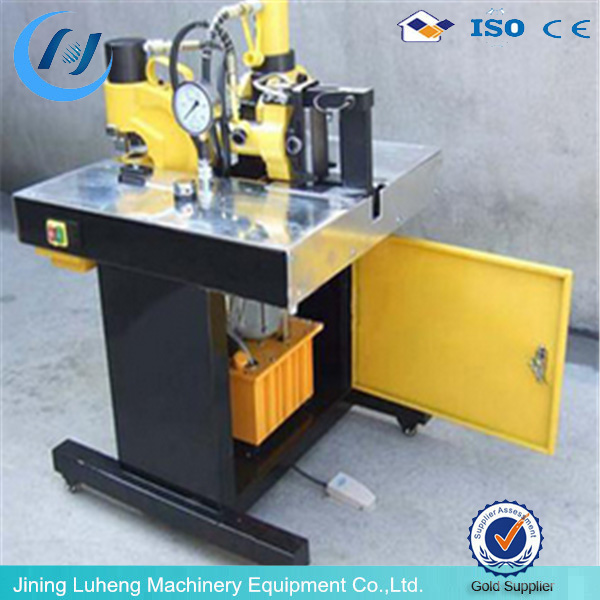

- Hydraulic busbar processing machine
- Dimension:
- 850mm(L)x750mm(W)x1100mm(H)
- Input voltage:
- Single phase 50Hz,220V (we can meet your need)
- Rating oil pressure:
- 700kg/cm2
- Cutting Force:
- 15T
- Cutting Range:
- 150mm(Width)X12mm(Thickness)
- Punching Force:
- 35T
- Distance from hole to sheet side:
- 110mm
- Weight:
- 220kg
- Functions:
- three functions, cutting, punching and bending
- Place of Origin:
- Shandong, China
- Model Number:
- LH-200
- Brand Name:
- Luheng
- Type:
- HYDRAULIC PIPE BENDERS
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- wooden case
- Port
- Qingdao
