- Power Source:
- Gasoline
- Power(W):
- 5.5HP
- Dimension(L*W*H):
- 1980 X 996 X 1320MM
- After-sales Service Provided:
- Online support, Engineers available to service machinery overseas
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- LUHENG trowel machine
- Voltage:
- 220V 380V
- Weight:
- 310 KG
- Certification:
- ISO CE
- Working diameter:
- L1900 X W915 MM
- Max. output kw(hp):
- 17.9 (24)
- Weight (kg):
- 392
- Max. speed:
- 3600 rpm
- Fuel tank:
- 15.5 liter
- Speed (rpm):
- 120 - 140
- Type:
- Honda GX690
- Engine:
- Air-cooled, 4-cycle, Gasoline
- Name:
- power trowel machine
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 80X80X78 cm
- Single gross weight:
- 70.0 kg
- Package Type:
- carton box with iron frame for Honda GX160 gasoline concrete power trowel machine
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 >5 Est. Time(days) 7 To be negotiated

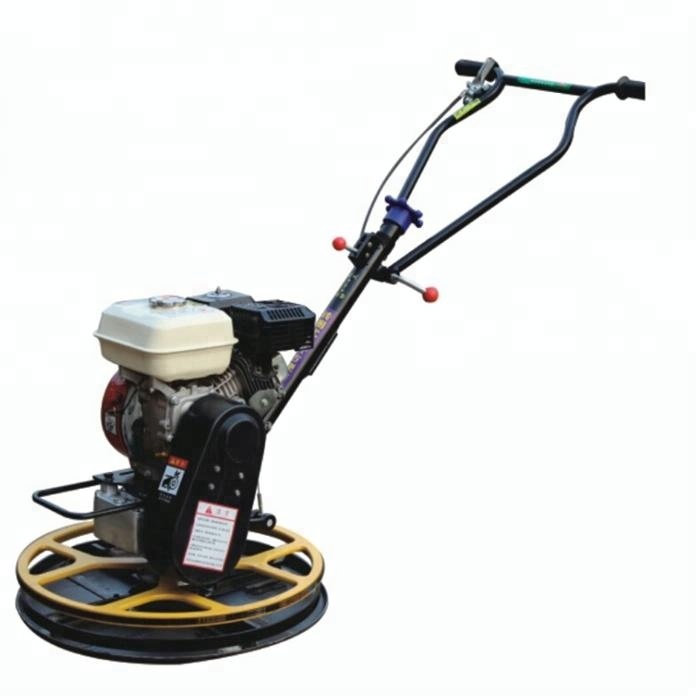

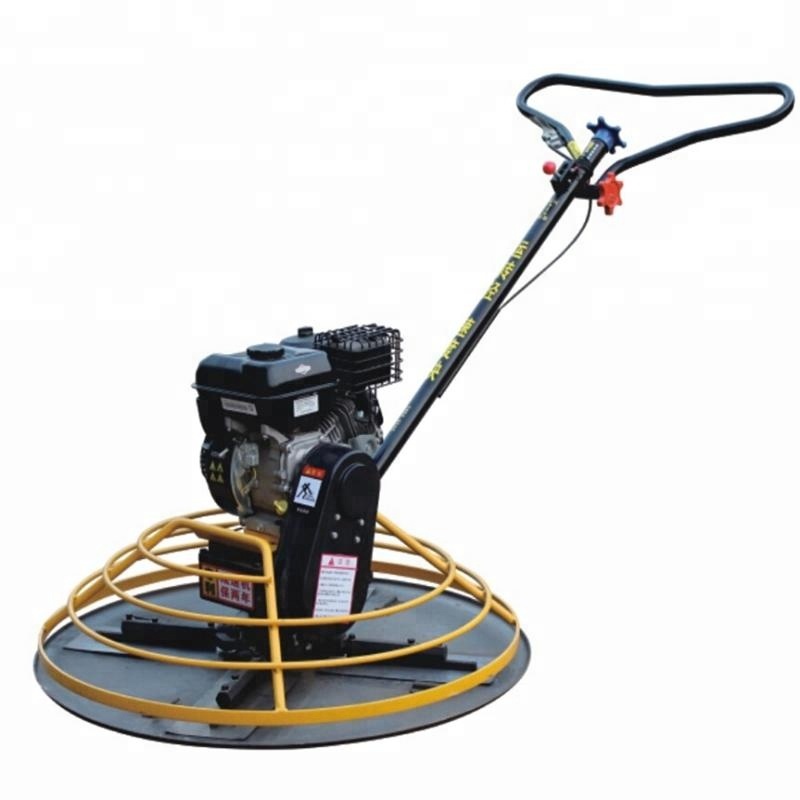

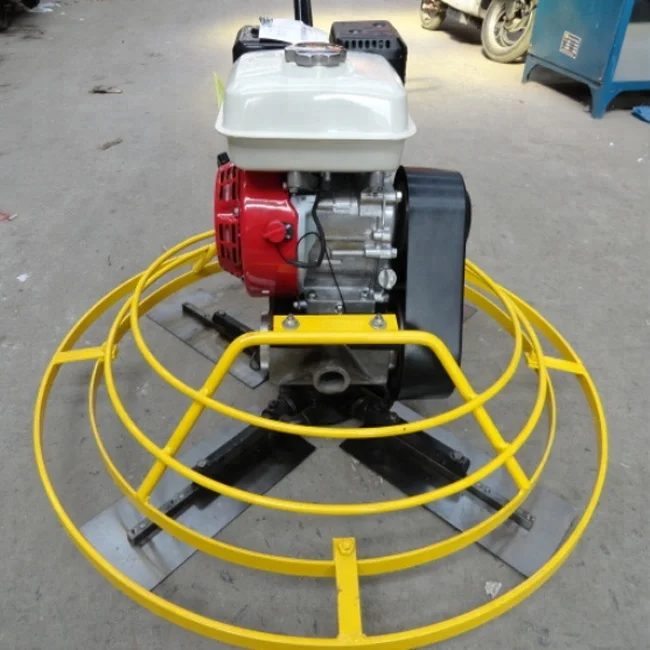

Honda GX160 gasoline concrete power trowel machine /whatsapp:+8613665375638
Honda GX160 gasoline concrete power trowel machine for sale price - LUHENG Honda GX160 gasoline concrete power trowel machine for sale price - LUHENG Honda GX160 gasoline concrete power trowel machine for sale price - LUHENG
Product Instruction
1. Appearance using fluent without acute Angle design, make the operator more safety
2. The dish be made with alloy cold rolled sheet to ensure machine strong and durable
3. Machine shell adopt electrostatic coating tech, not only beautiful but also eliminate the influence of corrosion on the machine
4. adjustment Angle precisely
5. Adjustable plate diameter, applicable to different work environment, more convenient
6. superior transmission gearbox, powerful and reliable, mute, aluminum casing is easy to heat dissipation
7. Increase to improve work efficiency, more than 20% faster than traditional models
8. Equipped with oil level display table
Technology Parameters

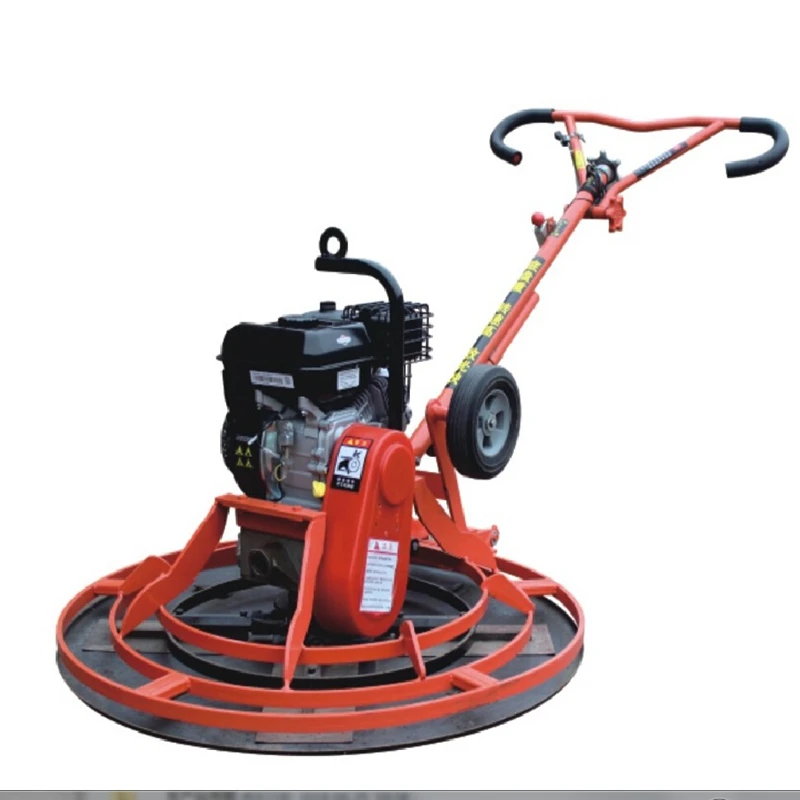

Walking type power trowel machine parameters as follows:

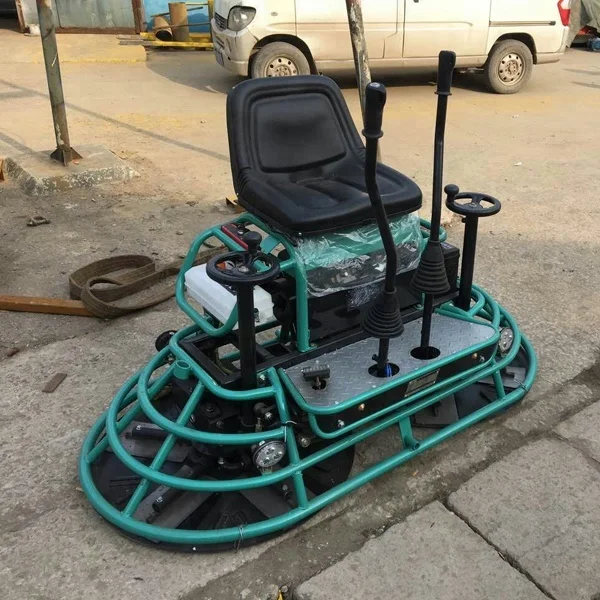

Ride-on power trowel parameters as follows:
| Model | DMGS-96 | DMGS-80 | DMGS-78 | DMGS-65 | |||||
| Weight (kg) | 392 | 310 | 325 | 295 | |||||
| Dimension (mm) | L2540 X W1240 X H1300 | L1980 X W996 X H1320 | L1980 X W1020 X H1500 | L1710 X W940 X H1150 | |||||
| Working diameter (mm) | L2475 X W1175 | L1900 X W915 | L1890 X W915 | L1570 X W750 | |||||
| Speed (rpm) | 120 - 140 | 120 - 140 | 150 - 155 | 140 | |||||
| Engine | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | |||||
| Type | Honda GX690 | Kohler 34HP | Honda GX690 | Kohler Pro25 | Honda GX690 | Kohler Pro25 | Honda GX390 | Kohler Pro14 | |
| Max. output kw(hp) | 17.9 (24) | 25.4 (34) | 17.9 (24) | 17.2 (23) | 17.9 (24) | 17.2 (23) | 9.6 (13) | 10.5 (14) | |
| Max. speed (rpm) | 3600 | 3600 | 3600 | 3600 | |||||
| Fuel tank (liter) | 15.5 | 15.5 | 12 | 6.5 | |||||
