2017 hot sale HW concrete power trowel with Good engine price
Features:
1. Appearance using fluent without acute Angle design, make the operator more safety
2. The dish be made with alloy cold rolled sheet to ensure machine strong and durable
3. Machine shell adopt electrostatic coating tech, not only beautiful but also eliminate the influence of corrosion on the machine
4. adjustment Angle precisely
5. Adjustable plate diameter, applicable to different work environment, more convenient
6. superior transmission gearbox, powerful and reliable, mute, aluminum casing is easy to heat dissipation
7. Increase to improve work efficiency, more than 20% faster than traditional models
8. Equipped with oil level display table
Power trowel application :
1. Widely used in factory buildings, warehouses, parking lot and square.
2. Fully sealed dust proof gear box guarantee high capacity and longer service time.
3. Rugged four-in diameter gripper clutch enables smooth operation from floating to finishing speed.
4. Automatic stop system for work safety.
5. Smooth operating screw control knob make it easy to adjust the blade pitch.
6. It is the first selection machine of concrete in the construction.
Power trowel parameter :
| Model | DMGS-96 | DMGS-80 | DMGS-78 | DMGS-65 | |||||
| Weight (kg) | 392 | 310 | 325 | 295 | |||||
| Dimension (mm) | L2540 X W1240 X H1300 | L1980 X W996 X H1320 | L1980 X W1020 X H1500 | L1710 X W940 X H1150 | |||||
| Working diameter (mm) | L2475 X W1175 | L1900 X W915 | L1890 X W915 | L1570 X W750 | |||||
| Speed (rpm) | 120 - 140 | 120 - 140 | 150 - 155 | 140 | |||||
| Engine | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | Air-cooled, 4-cycle, Gasoline | |||||
| Type | Honda GX690 | Kohler 34HP | Honda GX690 | Kohler Pro25 | Honda GX690 | Kohler Pro25 | Honda GX390 | Kohler Pro14 | |
| Max. output kw(hp) | 17.9 (24) | 25.4 (34) | 17.9 (24) | 17.2 (23) | 17.9 (24) | 17.2 (23) | 9.6 (13) | 10.5 (14) | |
| Max. speed (rpm) | 3600 | 3600 | 3600 | 3600 | |||||
| Fuel tank (liter) | 15.5 | 15.5 | 12 | 6.5 | | ||||

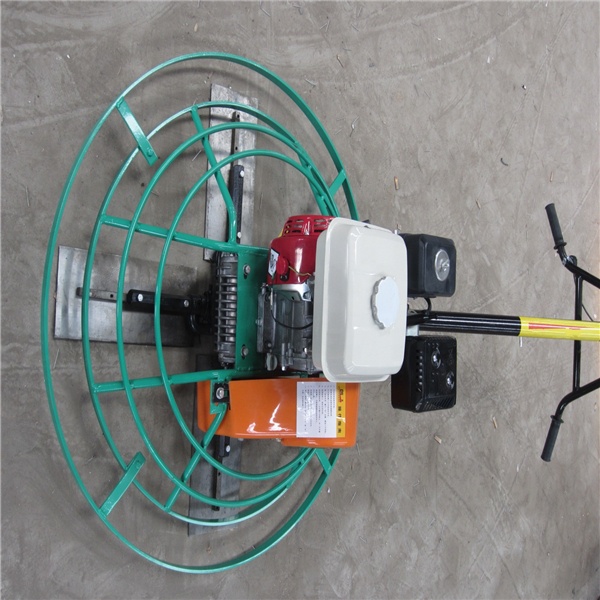

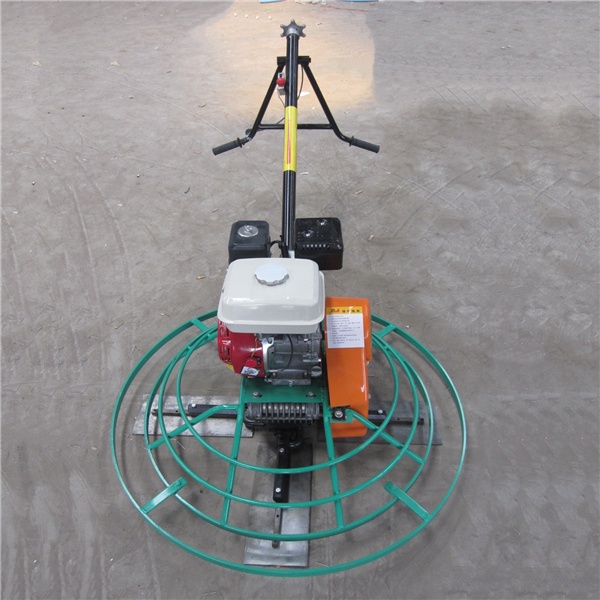

Power trowel pictures:
