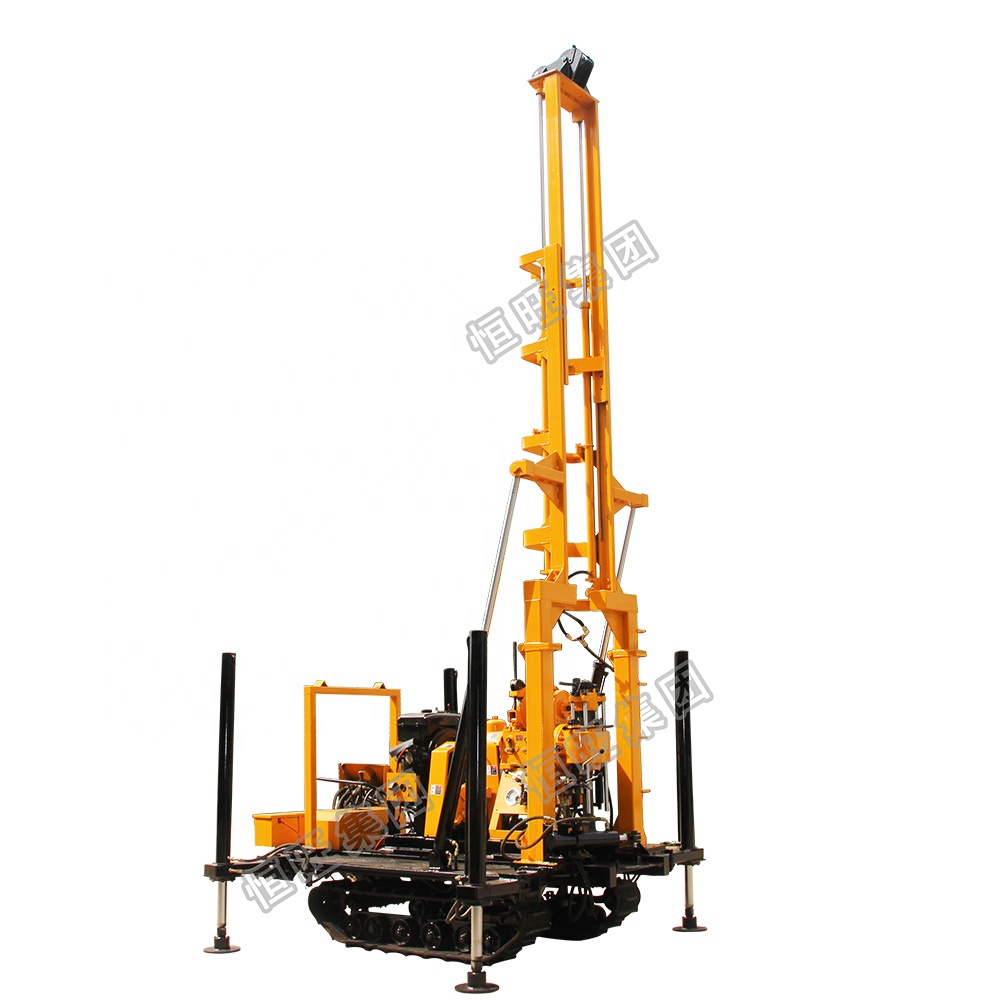

This water well drilling rig use the automatic telescopic drilling tower,supported by two high strength cylinder and a set of hydraulic valve control the drilling tower up and down.The operation saves of time and labor,safety and reliable,to creat the maximize benefits for users.

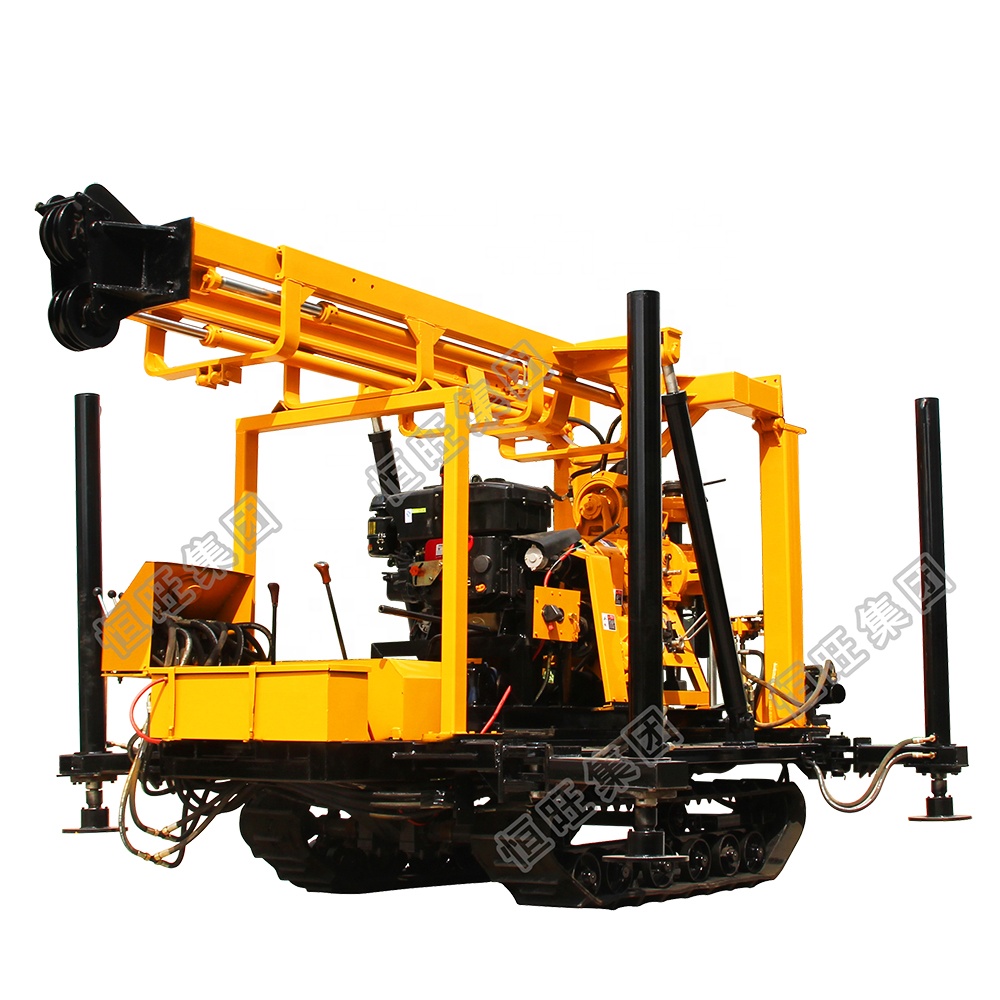

The chassis use the rubber tracks,lighter weight can reduce the voice from the vehicle moving and reduce the vehicle boday vibration,then can reduce the fuel comsumption.It can walk on the city road and doesn't hurt the road.
The chassis comes with hydraulic legs,can use for rig leveling,loading and unloading,it can also be used as ancillary support when machine working.
Our water well drilling rig use the 24v electric start diesel engine,reducing the operator's labor intensity,especially in the cold season,when diesel engine is difficult to start,it shows a great advantage.
This water well drilling rig support BW160 mud pump,the flow and pump is big and easy maintanance,the spare parts can be easy purchased in all over the country.
Customer can choose to add the screw pipe machine(75-168mm),which improve work efficiency and reduce labor costs.
Specification for water well drilling rig | ||||||
Model | HW-160/190/230 | Spindle Speed | 64~1045(r/min) | |||
Max.Drilling depth | 160m/190m/230m | Spindle Stroke | 450mm | |||
Soil Open hole dia. | 500mm/500mm/500mm | Winch single rope lift force | 2000kg-2500kg | |||
Rock Open hole dia. | 220mm/220mm/273mm | Winch single rope lift speed | 0.12-1.64(m/s) | |||
End hole dia. | 75mm~200mm | Winch Rope dia. | 9.3mm/9.3mm/12..5mm | |||
Drill rod dia. | 42/50/60 | Winch Rope capacity | 27M/27M/35M | |||
Drill angle | 90-75° | Drill Mast Rated load | 18T | |||
Engine Power | 13/14/16KW | Drill Mast Effective height | 6.5M | |||
Weight | 600KG/650KG/880KG | Mud pump Flow | 95~145L/min | |||
Dimension | 2.7*0.9*1.5 | Mud pump Max.pressure | 1.2~2Mpa | |||
1 set include all accessories will be used.
(Please contact us for list)
1 set include all accessories will be used.
(Please contact us for list)
1 set include all accessories will be used.
(Please contact us for list)
1 set include all accessories will be used.
(Please contact us for list)
Our customer's evaluate after test our water well drilling rig
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ
Q1.What is the main function of our drilling rig?
Ans.: It has different models used for all kinds of geology
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
