100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

Click on the image to view the original image

Product：	views：11100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories
Branch：	LH
Type：	Rotary Drilling Rig
Size：	380X195X270 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:41

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: LH

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 2.5*1*1.3,2.5*0.9*1.3m

Weight:: 560KG

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Engineers available to service machinery overseas

type:: horizontal single urn twin-action

power:: 15 kw

drilling depth:: 130m

spindle stroke:: 450mm

maximum open hole caliber:: 260mm

end hole caliber:: 75mm

drill rod caliber:: 50mm

spindle speed:: 142,285,570 r/min

tightrope caliber:: 27m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 380X195X270 cm

Single gross weight:: 1000.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	10	To be negotiated

100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

Related Products

100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

Product Description

100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

HW series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy.

Main features

1,It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.

2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

3, It has hole bottom pressure gauge to be easy to master the situation in the hole.

4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.

Technology Parameter

100m 200m water well drilling rig ,tractor drilling machine with mud pump and all accessories

HW type Main technical parameters of hydraulic drilling rig
Machine specification	Model	HW-160/160YY	HW-190/190YY	HW-230/230YY
	Drilling depth(m)	160	190	230
	Open hole dia. (mm) soil/rock	500,220	500,220	500,273
	End hole dia. (mm)	75	75	75
	Drill rod dia. (mm)	42,50	42,50	42,50,60
	Drill angle (°)	90-75	90-75	90-75
	Matching engine power (kW)	13.2	13.2	15
	Weight without engine (kg)	600/740	620/750	880/970
	Machine Dimension LWH (m)	2. 40. 81.3	2. 40. 81. 4	2. 70. 91. 5
Spindle	speed (r/min)	142/285/570	130/300/480/730/ 830/1045	64/128/287/557
	speed (r/min)	142/285/570	130/300/480/730/ 830/1045	64/128/287/557
	Stroke (mm)	450	450	450
Winch	Single rope lift force (kg)	2000	2100	2500
	Single rope lift speed (m/s)	0. 41-1. 64	0. 35-2. 23	0. 12-0. 95
	Rope dia. (mm)	φ9. 3	φ9.3	φ12.5
	Rope capacity(m)	27	27	35
Drill Mast	Rated load (ton)	18	18	18
Drill Mast	Height (m)	6.5	6.5	6.5
Mud pump	Flow (L/Min)	95	95	145
	Max. pressure (MPa)	1.2	1.2	2
	Back and forth times/min	93	93	93
	Inlet hose dia. (mm)	51	51	51
	Outlet hose dia. (mm)	32	32	32

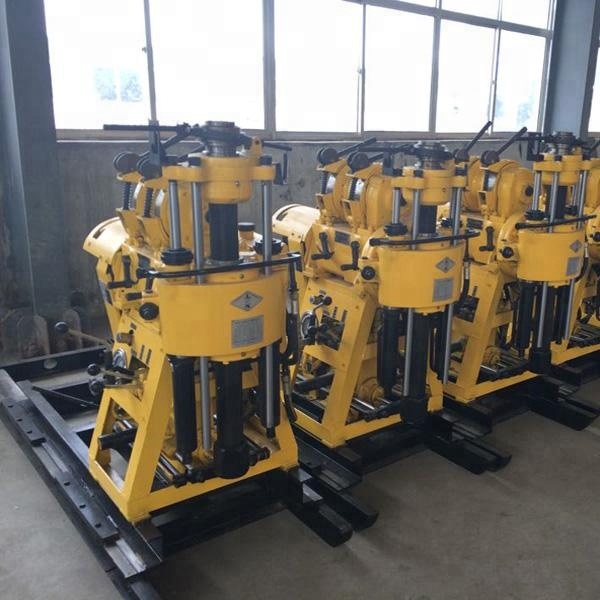

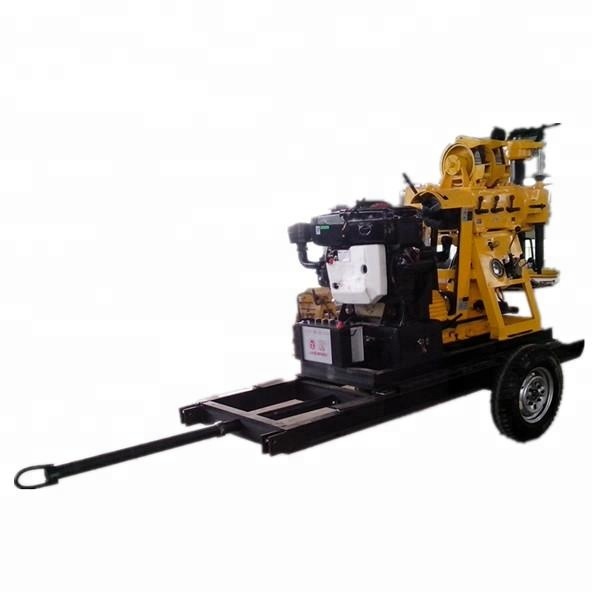

The photos
