YT28 medium hard rock works rock drill jack hammer - LUHENG
Click on the image to view the original image
Product： views：9YT28 medium hard rock works rock drill jack hammer - LUHENG
Branch： LH
Type： Air Hammer
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:42
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LH
Model Number:
YT24
Type:
Air Hammer
Average Air Consumption:
≤81L/S
Maximum Torque:
18
No-Load Speed:
31HZ
Water pipe (inner dia ):
13mm
Air pipe (inner dia ):
5mm
Product name:
YT series air leg rock drill
Piston stroke:
70mm
Air pressure:
0.4- 0.63MPa
Length:
661mm
Air consumption:
67l/s
Name:
rock drill
Supply Ability
Supply Ability:
2500 Set/Sets per Week YT series air leg rock drill
Packaging & Delivery
Packaging Details
regular packaging YT series air leg rock drill
Port
qingdao/dalian/shenzhen/ningbo
Factory
Product Description

Product Application

The rock drill is a kind of high efficiency air leg rock drill machinery. It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.

It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm, drill hole depth is 5 m This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.

This machine has transparent surface of FY200B oil reservoir, easy to observe the oil lever, adjust oil quantity, ensure the well lubricated.

Type
TA19
YT24
YT27
YT28
YT29A
Weight (kg)
18
24
27
26
27
LxW(Handie)xH (mm)
678x228x184
668x247x195
654x247x195
659x247x195
Cylinder stroke(mm)
604x198x135
70*70
80*60
80*60
82*60
Air Consumption (L/s)
28
≤52
≤57
≤81
≤62
Air hose size (mm)
16or19
19
25
25
25
warer hose size (mm)
8
13
13
13
13
Bore dia (mm)
34-42
34-42
34-45
34-42
34-45
Drilling depth (m)
3
5
5
5
5
Shank (mm)
22x108
22(25)x108
22x108
22(25)x108
22(25)x108

Main Features

a: Reasonable design

b: Convinient operation

c: Fast drilling velocity

d: Engery-saving

e: Efficient

f: Long service life of parts

g: Parts highly interchangeable and reliable performance etc

Detailed Images

Machine Parts

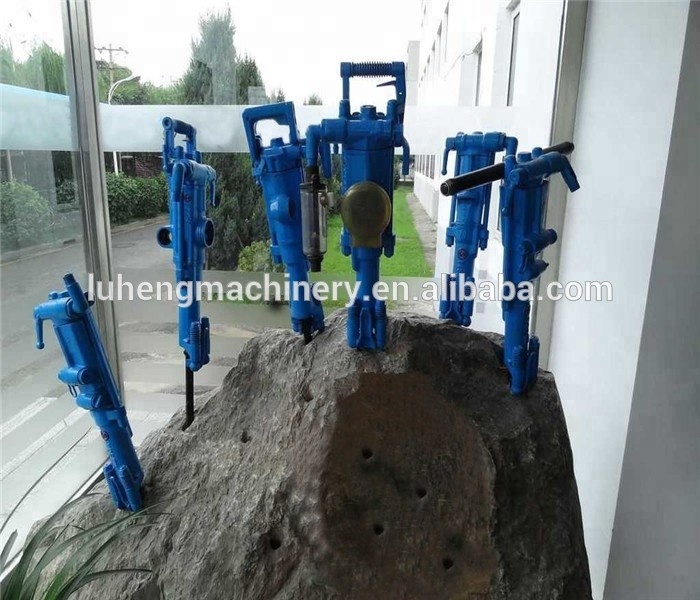

Name: YT28 portable rock drill

Brand: LH

Original:China

Main Features

Name: YT28 portable rock drill
Brand: LH
Original: China

Machine Parts

Name: Portable rock drill
Brand: LH
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
30kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
30kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
