Home > Products > electric down the hole hammer drill rig/mining rock drill for sale

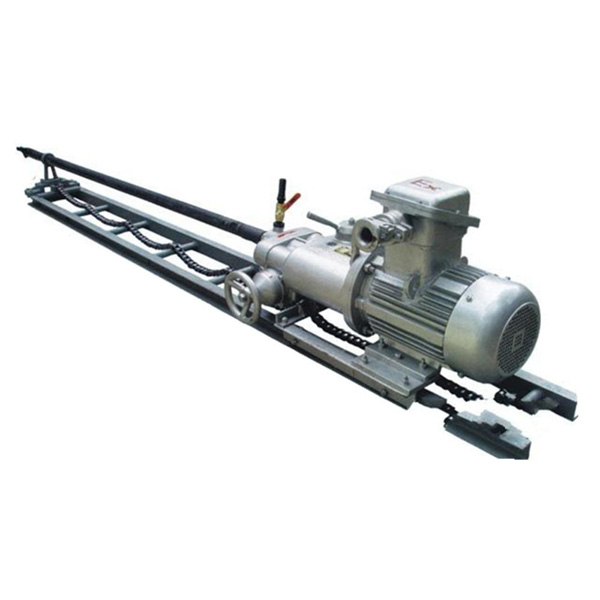

electric down the hole hammer drill rig/mining rock drill for sale

Click on the image to view the original image

Product：	views：12electric down the hole hammer drill rig/mining rock drill for sale
Branch：	LH
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:42

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: LH

Model Number:: KHYD

Usage:: rock , granite or coal mine

Voltage:: 110v 220v 380v

Power(W):: 2kw,3kw,4kw,5.5kw,7.5kw

Dimension(L*W*H):: 950x460x430mm

Weight:: 360KG

Certification:: ISO

Part name:: KHYD electric rock drill

Drilling dia for mine:: 45-60mm

drill bit:: PDC drill bit for drilling rock

color:: silver

Drilling depth for rock:: 5m

Spindle speed:: 2814 r/min

Drilling dia for rock:: 42mm

Drilling depth for mine:: 20-60m

material:: steel

price:: factory price

After-sales Service Provided:: Overseas service center available

Warranty:: 1 year

Supply Ability

Supply Ability:: 1000 Set/Sets per Week

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

electric down the hole hammer drill rig/mining rock drill for sale/whatsapp:+8613678678206

Production Features

1. KHYD explosion proof electric rock drill Appliance :

1.Be used for drilling burst mine hole in rock

2.Be able to do wet type and dry type work

3.Be easy to move, easy to operate

2. KHYD explosion proof electric rock drill Feature:

1.Electric rock drill is used for drilling burst mine hole in rock.

2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.

3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.

4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.

Technology Parameters

Model	Drilling dia. for rock	Drilling dia. for mine	Drilling depth for rock	Drilling depth for mine	Spindle speed	Power	weight
KHYD40	42mm	45-60mm	5m	20-60m	2814 r/min	2kw	40kg
KHYD75	42mm	45-80mm	10m	30-80m	1420 r/min	3kw	75kg
KHYD140	42-80mm	80-100mm	20m	30-80m	1440 r/min	5.5kw	140kg
KHYD150	42-80mm	80-120mm	25m	40-100m	1440 r/min	7.5kw	150kg
accessories:35#/42# round dril rod / Twist drill rod alloy bit and slide
