Internal combustion Railway wooden sleeper Portable Drill Machine
Internal combustion Railway wooden sleeper Portable Drill Machine
Product Introduction
Feature:
1.Driven, strong adaptability to an open working environment.
2.Swift clamping and convenient operation.
3.Accurate positioning, high precision of drilling.
4.Adopt hollow drill bit, with high efficiency of operation.
5.Portable design, quickly up and down the rail.
Technology Parameters
1. The gasoline engine forms: single cylinder air cooling two stroke
2. The gasoline engine power: 5.8 kw
3. The grinding wheel piece form: double strengthen silk screen
4. The maximum linear speed: 100 m/s
5. Rated speed: 5100 + 100 r/min
6. Grinding wheel piece size: Φ355mmX25.4mm,
7. Cutting precision:
a.Incision and rail longitudinal vertical deviation :≤0.40 mm
b.Two-way cutting interface plane deviation :≤0.35 mm
8. Cutting time: ≤120 s
9.clamp weight: 5Kg
10. weight: 20.5 kg
11. The fuel tank capacity: 1.25 L

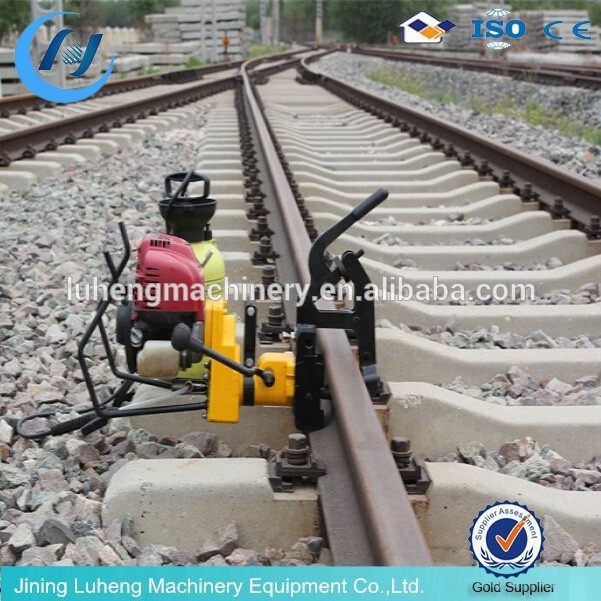

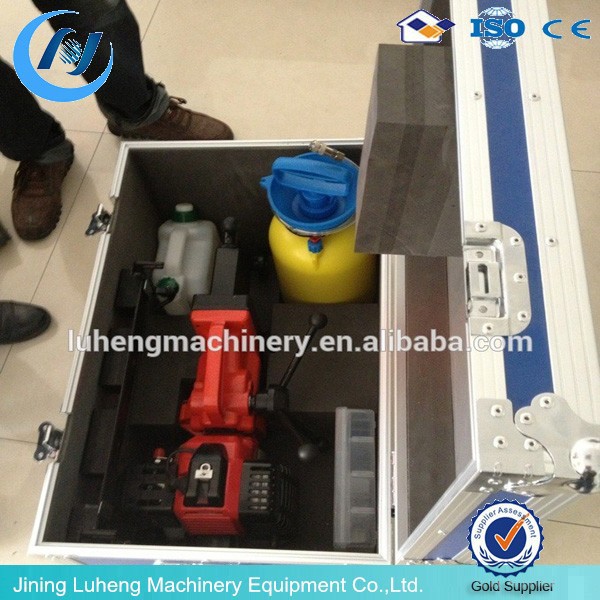

The real details photo
