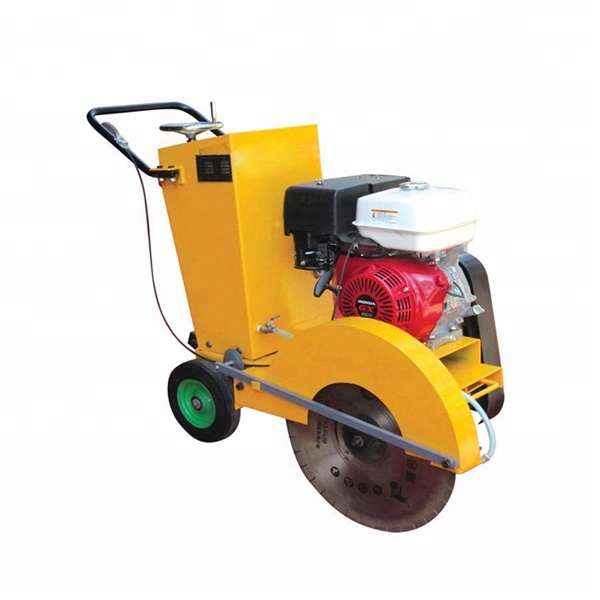

walk behind gasoline honda electric asphalt floor road ucutter saw machine concrete cutter
walk behind gasoline honda electric asphalt floor road ucutter saw machine concrete cutter
Product Introduction
Application:
Road Cutting Machine (often known as Asphalt Road Cutter or Road Cutter) is a power tool
used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials.
It can be a small hand-held cut-off concrete saw, a big walk-behind concrete cutter or other styles, besides the gasoline, petrol engines;
it can also be powered by diesel, hydraulic or pneumatic pressure, or electric motors.
The cutter blades used on concrete cutters are often diamond cutter blades to cut concrete, asphalt, stone, etc.
Asphalt Concrete Road Cutter
Feature:
Asphalt Concrete Road Cutter
1.Honda gasoline engine, strong adaptability to an open working environment;
2.Small volume, light weight, and portable;
3.Simple clamping and convenient operation;
4.Large matching power and quick cutting speed;
5.High precision of positioning, good quality of cutting section.
Technology Parameters
| Model | LH-400 | LH-500 | LH-600 |
| Length * Width*Height (mm) | 1200*400*820 | 1980*630*900 | 1815*540*800 |
| Blade Dimensions (mm) | 400 | 500 | 600 |
| Cutting Depth (mm) | 130 | 180 | 230 |
| Cutting depth adjustment | Screw | Screw | Screw |
| Cutting speed (m / min) | 1-2.5 | 1-2.5 | 1-2.5 |
| Propulsion | Hand push | Hand push | Hand push |
| Water tank capacity (L) | 38 | 38 | 49 |
| Engine | Honda GX390 | Honda GX390 | Honda GX620()(double-cylinder) |
| Engine lubricating oil capacity (L) | 1.5 | 1.8 | 1.1 |
| Rated power (KW) | 8.5 | 8.5 | 20 |
| Rated speed (rpm) | 3600 | 3600 | 3600 |
| Idle speed (rpm) | 1500±150 | 1500±150 | 1500±150 |
| Air displacement(cm3) | 390 | 390 | 620 |
| Fuel tank capacity (liters) | 6 | 6 | 6 |
| Fuel consumption (liters / hour) | 1.1 | 1.1 | 2.2 |
| Fuel grade | Above 90# unleaded gasoline | Above 90# unleaded gasoline | Above 90# unleaded gasoline |

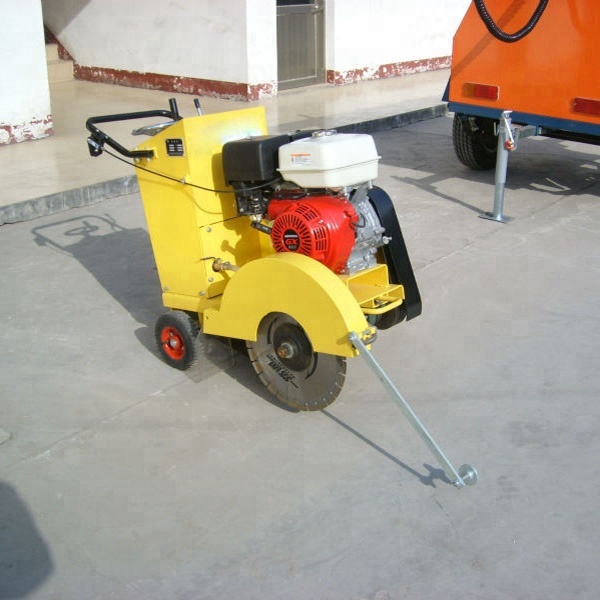

The real details photo
