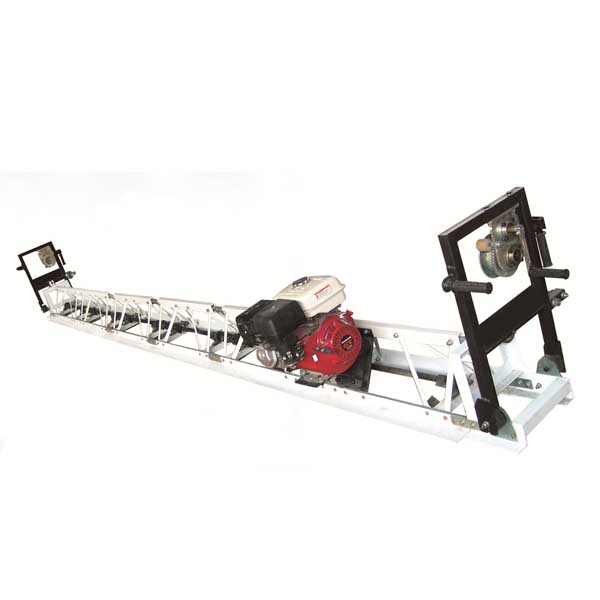

Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Every half a meter as a specification,when customer who mend a road that place the order.please choice the machine that is greater 0.5 meters’ width than construction,such as:If the road width is 10 meters,then you should to order the machine that is 10.5 meters.
² High strength and light weight aluminum truss, reducing intensity of labor
² Fast connect system for assembly without special tools by one person.
² One side winches for one person operation
² Available length: 4-18 meters
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
| Type | RLH55X(≤)5500mm | RLH90X(≤)8500mm | RLH130X(≥)9000mm |
| Compaction | |||
| Nominal amplitude | 0.6mm | ||
| Vibrating frequency | 70Hz | ||
| Exciting force | 11kN/(≤)2000mm | ||
| Engine | |||
| Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Type | Gasoline engine,air cooled, 4stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel tank volume | 3.6L | 6L | 6.5L |
| Lubricant L | 0.6L | 1.1L | |
| Fuel consumption | 313g/kWh | ||
| Dimension | |||
| 2m linker | 405mm×2000mm | ||
| 1m single linker | 405mm×1000mm | ||
| 0.5m single linker | 405mm×250mm | ||
| Note, The chosen length of machine should be 500mm longer than real construction width. | |||
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
Construction Used Truss Screed Concrete Paver, Gasoline Truss Screed
