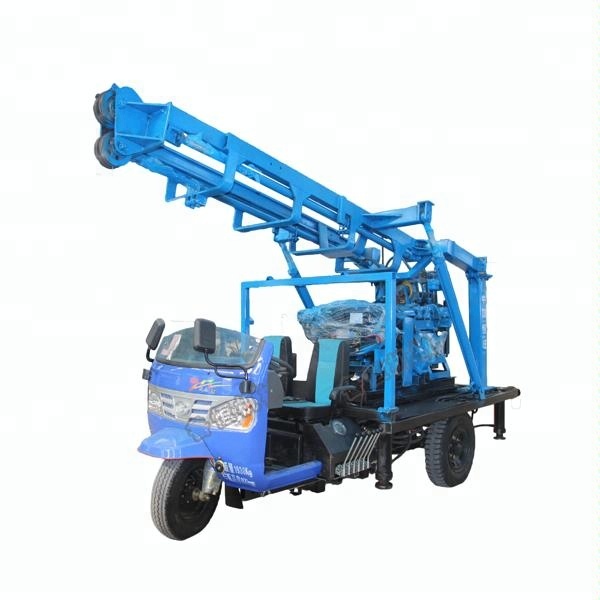

200m Depth tractor mounted water well drilling rig/Machine to dig deep wells
Product Introduction
Features:
1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4. 24V electric-strat diesel engine reduces the operator`s labor intensity.
5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
Technology Parameters
| Whole machine parameters | Model | HW-160S | HW-190S | HW-230S | |
| Drilling depth(m) | 160 | 190 | 230 | ||
| Open hole dia. (mm) | 500,220 | 500,220 | 500,273 | ||
| End hole dia. (mm) | 75 | 75 | 75 | ||
| Drill rod dia. (mm) | 42,50 | 42,50 | 42,50,60 | ||
| drill angle (°) | 90-75 | 90-75 | 90-75 | ||
| Matching power (kW) | 11 | 13.2 | 15 | ||
| Weight (kg) | 2750 | 2800 | 3000 | ||
| Dimension(L*W*H) (m) | 4*1. 7*2. 3 | 4*1. 7*2. 3 | 4*1. 7*2. 3 | ||
| Spindle | Speed (r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 | |
| Stroke (mm) | 450 | 450 | 450 | ||
| Tricycle chassis | Model | wuzheng | wuzheng | wuzheng | |
| 7YP-1475D1 | 7YP-1475D1 | 7YP-1475D1 | |||
| Emission standard | GB19756-2005 (Ⅱ) | GB19756-2005 (Ⅱ) | GB19756-2005 (Ⅱ) | ||
| Rated power (kW) | 18. 3 | 18. 3 | 18. 3 | ||
| Rated speed (r/min) | 2200 | 2200 | 2200 | ||
| Drill Tower | Rated load (ton) | 18 | 18 | 18 | |
| Effective height (m) | 6.5 | 6.5 | 6.5 | ||
| Mud pump | Flow (L/min) | 160 | 160 | 160 | |
| Max. pressure (Mpa) | 1. 3 | 1.3 | 1.3 | ||
| reciprocal times /mi n | 165 | 165 | 165 | ||
| Inlet hose dia. (mm) | 51 | 51 | 51 | ||
| Outlet hose dia. (mm) | 32 | 32 | 32 |

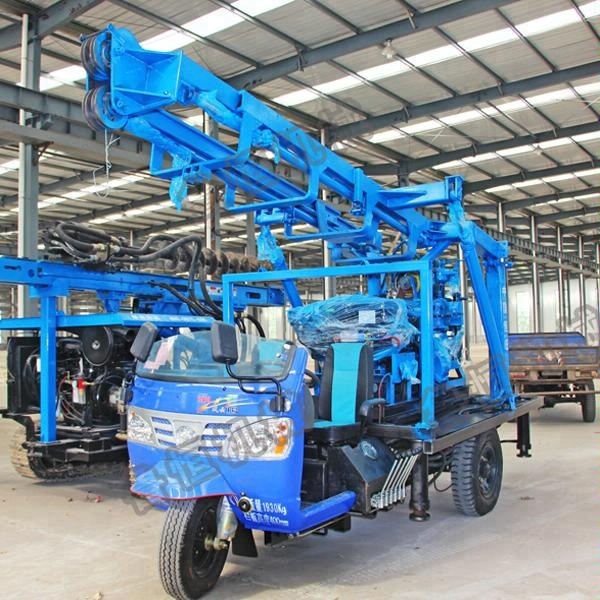

The real details photo
