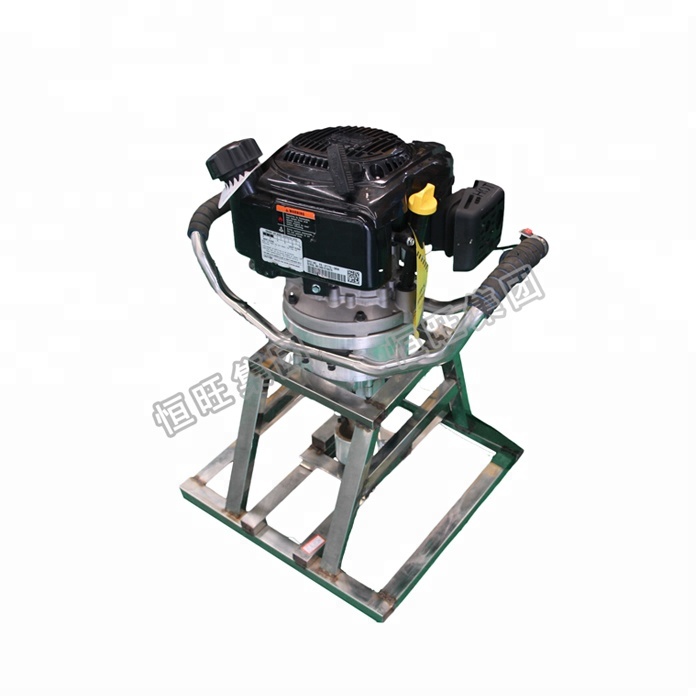

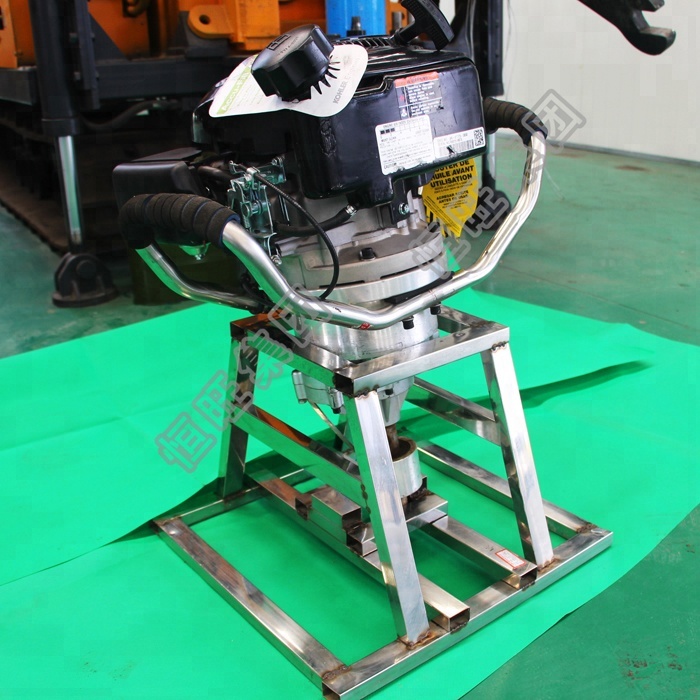

Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
1. This model can use normal straight handle drill bit or oblique handle drill bit to drill holes. And use tap bit to tap thread.2. The drilling capacity is from 10~30mm
3.The up/down transmission of the tool bit is by the round shaft gear rack, so the drilled holes and the tapped threads won’t skew to one side. The processing quality is very good and the machine body is stable and durable too.
4. The sleeve of the drill bit and the torsion fixture of the tap bit are all speedy connecter designed which can be exchanged quickly to increase working efficiency.
5. Tapping adaptors with torsion control, tap bits are protected from being twisted off.
6. Special desigh of tapping handle makes tapping operation easier, any time you need right directionrotating for tapping or reverse for withdrawing just push it downward or release, even tap on a high hardness steel, this machine can attain it"s function perfectly.
7. With circuit protection of breaking for motor, once any wire of three phases power source is broken off, this unit could cut off current to motor to prevent motor from being burn out
8. It’s most suitable for the drilling and tapping process on the heavy duty machine and the machine-tools.
Core drill description
1.The portable drilling machine is designed for mineral,oil and gas exploration, it is tailored for geological research and prospectors
2.we have decades of experience and accumulation in dozens of countries and regions in the world of field validation, we constantly improve and upgrade the quality of our products and we believe that the equipment will be helpful for your work
3. The engine of portable drilling machine is original Honda engine which has one of the best quality and long life service
Core drill efficiency:
Silicalite 69mm/min
Slate 119mm/min
Basalt 127mm/min
Sandstone 130mm/min
Dolomite 226mm/min
Limestone 241mm/min
| Model | HW-B30 |
| Max. core drill diamter(mm ) | 90 |
| Max. drill diameter( mm ) | 100 |
| Max. drill depth( m ) | 30(40mm) |
| Drill speed(r/min) | 400 |
| Power(cc) | 173 |
| Main weight(kg) | 22 |
| Drill rod weight(kg) | 1.1 |
| Spare parts weight(kg) | 3 |
| Water consuption(L/h) | 14.4 |
Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
Portable Backpack rig Mountain dedicated core drilling machine
Pleaes contact me for more information
